Category: HDD

HDD with Serial Number: WCAYU5806317;
Model: WD5000AAKS-00WWPA0;
Date: 26 JUL 2010;
DCM: EHNNHTJAEN;
Product of: Thailand;
PCB Sticker: 2061-771640-503 AA;
PCB Revision: 2060-771640-003 REV P1;

;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : C57/3159;
1 : 1 : CAB/3243;
ROM F/W version……………………. : 0000001G;
Heads map…………………………. : 0,1;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0001;

;

HDD with Serial Number: WCAS81789424;
Model: WD5000AAKS-07YGA0;
Date: 13 OCT 2007;
DCM: DANNNT2MHB;
Product of: Thailand;
PCB Sticker: 2061-701477-900 AB;
PCB Revision: 2060-701477-002 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 2 : A40/2624;
1 : 3 : ADC/2780;
2 : 4 : A94/2708;
3 : 5 : ADC/2780;
4 : 6 : AAE/2734;
5 : 7 : AEA/2794;
ROM F/W version……………………. : 00580076;
Heads map…………………………. : 2,3,4,5,6,7;
Preamp vendor……………………. : 0x0000;
Preamp revision………………….. : 0x0002;

;

Specifications;
SN: WCAWF9076796;
Model: WD5000AAKS-00V6A0;
Date: 07 DEC 2010;
DCM: HHNNNTJAA ;
Product of: Thailand;
PCB Sticker: 771640-102;
PCB Revision: 2060-771640-002 REV P2;

;

;

HDD with Serial Number: WCAYU5745126;
Model: WD5000AAKS-00WWPA0;
Date: 25 JUL 2010;
DCM: HANNNTJMEN;
Product of: Thailand;
PCB Sticker: 2061-771640-503 AA;
PCB Revision: 2060-771640-003 REV P1;

;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : CC6/3270;
1 : 1 : CC6/3270;

;

ROM F/W version……………………. : 0000001G;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0001;

;

HDD #1 Specs:;
Serial Number: WCAS85905863;
Model: WD5000AAKS-07YGA0;
Date: 13 FEB 2008;
DCM: DARNHT2ABB;
Product of: Thailand;
PCB Sticker: 2061-701477-900 AE;
PCB Revision: 2060-701477-002 REV A;

;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 2 : A64/2660;
1 : 3 : A78/2680;
2 : 4 : A7C/2684;
3 : 5 : A3E/2622;
4 : 6 : 9B2/2482;
5 : 7 : A40/2624;

;

ROM F/W version……………………. : 0058007U;
Preamp vendor……………………… : 0x0000;
Preamp revision……………………. : 0x0002;

;

HDD with Serial Number: WCAWFD151121;
Model: WD5000AAKS-00V6A0;
Date: 20 JAN 2012;
DCM: HHNNNTJAG;
Product of: Thailand;
PCB Sticker: 771640-105 AB;
PCB Revision: 2060-771640-005 REV P1;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : CA9/3241;
1 : 1 : C8B/3211;
ROM F/W version……………………. : 00000070;
Heads map…………………………. : 0,1;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0001;

;

HDD with Serial Number: WCAYU5644314;
Model: WD5000AAKS-00WWPA0;
Date: 26 JUL 2010;
DCM: HARNNTJAGN;
Product of: Thailand;
PCB Sticker: 2061-771640-503 AA;
PCB Revision: 2060-771640-003 REV P1;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : BF3/3059;
1 : 1 : C75/3189;
ROM F/W version……………………. : 0000001G;
Heads map…………………………. : 0,1;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0001;

;

HDD with Serial Number: WCAS81963546;
Model: WD5000AAKS-07YGA0;
Date: 25 OCT 2007;
DCM: HANNNT2MHB;
Product of: Thailand;
PCB Sticker: 2061-701477-900 AD;
PCB Revision: 2060-701477-002 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 2 : AA8/2728;
1 : 3 : 9F0/2544;
2 : 4 : AA4/2724;
3 : 5 : A0C/2572;
4 : 6 : A9E/2718;
5 : 7 : A38/2616;
ROM F/W version……………………. : 00580076;
Heads map…………………………. : 2,3,4,5,6,7;
Preamp vendor……………………. : 0x0000;
Preamp revision………………….. : 0x0002;

;

HDD with Serial Number: WCAWF9580416;
Model: WD5000AAKS-00V0A0;
Date: 29 OCT 2010;
DCM: HANNNTJAHN;
Product of: Thailand;
PCB Sticker: 2061-771640-L03 AB;
PCB Revision: 2060-771640-003 REV P1;
;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : C58/3160;
1   : 1   : C69/3177;
ROM F/W version……………………. : 00120024;
Heads map…………………………. : 0,1;
Preamp vendor……………………. : 0x0001;
Preamp revision………………….. : 0x0001;

;

HDD #1 Specs:;

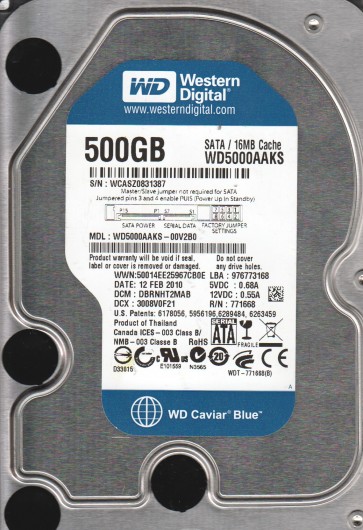

SN: WCASZ0831387;
Model: WD5000AAKS-00V2B0;
Date: 12 FEB 2010;
DCM: DBRNHT2MAB ;
Product of: Thailand;
PCB Sticker: 2061-771668-100 AB;
PCB Revision: 2060-771666-000 REV P1;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 9B2/2482;
1   : 1   : 99E/2462;
2   : 3   : 99A/2458;
ROM F/W version……………………. : 0007000H;
Preamp Vendor……………………… : 0000;
Preamp Rev………………………… : 0002;
;
;
;

;
