Category: HDD

HDD #1 Specs:;
SN: WCASYC187222;
Model: WD5000AAKB-00H8A0;
Date: 17 MAR 2010;
DCM: EANNNT2MAB ;
Product of: Thailand;
PCB Sticker: 2061-701596-500 10P;
PCB Revision: 2060-701596-001 REV A;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 9FC/2556;
1   : 1   : 9CE/2510;
2   : 2   : A14/2580;
3   : 3   : 98E/2446;
ROM F/W version……………………. : 000500DB;
Preamp vendor……………………… : 0x0000;
Preamp revision……………………. : 0x0002;
;
;

;

HDD with Serial Number: WCASY5082729;
Model: WD5000AAKB-00H8A0;
Date: 26 APR 2009;
DCM: HARNHT2MAB;
Product of: Thailand;
PCB Sticker: 2061-701596-500 09P;
PCB Revision: 2060-701596-001 REV P1;

;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 9E6/2534;
1 : 1 : A48/2632;
2 : 2 : 9D2/2514;
3 : 3 : A4C/2636 ;
ROM F/W version……………………. : 000500BH ;
Preamp vendor 0x0000 ;
Preamp revision 0x0002;

;

HDD with Serial Number: WCASYA125028;
Model: WD5000AAKB-00H8A0;
Date: 30 JAN 2010;
DCM: DANNHT2MAN;
Product of: Thailand;
PCB Sticker: 2061-701596-500 10P;
PCB Revision: 2060-701596-001 REV P1;

;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 9F6/2550;
1 : 1 : 9D8/2520;
2 : 2 : 9E4/2532;
3 : 3 : 9EA/2538;
ROM F/W version……………………. : 000500DB;
Heads map…………………………. : 0,1,2,3;
Preamp vendor……………………… : 0x0000;
Preamp revision……………………. : 0x0002;

;

HDD with Serial Number: WCASZ0040949;
Model: WD5000AAKB-00H8A0;
Date: 27 JAN 2009;
DCM: EANNNTJMAB;
Product of: Thailand;
PCB Sticker: 2061-701596-500 06P;
PCB Revision: 2060-701596-001 REV P1;
;

;

HDD with Serial Number: WCAT00301357;
Model: WD5000AAKB-00H8A0;
Date: 10 SEP 2009;
DCM: DANNHT2MGN;
Product of: Thailand;
PCB Sticker: 2061-701596-500 09P;
PCB Revision: 2060-701596-001 REV P1;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : A22/2594;
1 : 1 : 9FC/2556;
2 : 2 : 9E6/2534;
ROM F/W version……………………. : 000500BT;
Heads map…………………………. : 0,1,2;
Preamp vendor……………………. : 0x0000;
Preamp revision………………….. : 0x0002;

;

HDD with Serial Number: WCASYC561911;
Model: WD5000AAKB-00H8A0;
Date: 12 APR 2010;
DCM: EBNNHT2MAB;
Product of: Thailand;
PCB Sticker: 2061-701596-500 10P;
PCB Revision: 2060-701596-001 REV P1;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 9D4/2516;
1   : 1   : 9E4/2532;
2   : 2   : A0A/2570;
3   : 3   : 9E2/2530;
ROM F/W version……………………. : 000500DB;
Preamp vendor……………………… : 0x0000;
Preamp revision……………………. : 0x0002;
;
;
;
;

;

HDD with Serial Number: WCASY3428040;
Model: WD5000AAKB-00H8A0;
Date: 10 JAN 2009;
DCM: DANNHV2MGB;
Product of: Thailand;
PCB Sticker: 2061-701596-500 06P;
PCB Revision: 2060-701596-001 REV P1;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 8F2/2290;
1 : 1 : 8E2/2274;
2 : 2 : 8FC/2300;
3 : 3 : 8BA/2234;
ROM F/W version……………………. : 000500BD;
Heads map…………………………. : 0,1,2,3;
Preamp vendor……………………. : 0x0000;
Preamp revision………………….. : 0x0002;

;

HDD with Serial Number: WCASZ0996328;
Model: WD5000AAKB-00H8A0;
Date: 06 APR 2010;
DCM: EBRNHT2MBB;
Product of: Thailand;
PCB Sticker: 2061-701596-500 10P;
PCB Revision: 2060-701596-001 REV P1;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : A12/2578;
1 : 1 : 9E6/2534;
2 : 3 : 9D6/2518;
ROM F/W version……………………. : 000500DB;
Heads map…………………………. : 0,1,3;
Preamp vendor……………………… : 0x0000;
Preamp revision……………………. : 0x0002;

;

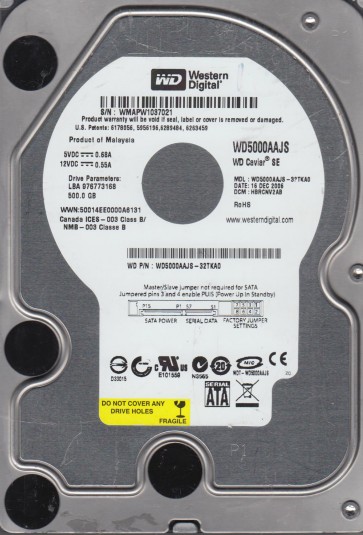

HDD with Serial Number: WMAPW1037021;
Model: WD5000AAJS-32TKA0;
Date: 16 DEC 2006;
DCM: HBRCNV2AB;
Product of: Malaysia;
PCB Sticker: 2061-701477-000 AB;
PCB Revision: 2060-701477-001 REV A;

;

HDD with Serial Number: WCASY5905137;
Model: WD5000AAJS-55A8B2;
Date: 17 JUN 2009;
DCM: HARNHT2MHB;
Product of: Thailand;
PCB Sticker: 2061-701590-K00 AD;
PCB Revision: 2060-701590-000 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : A0C/2572;
1 : 1 : 9F4/2548;
2 : 2 : A08/2568;
3 : 3 : A1E/2590;
ROM F/W version……………………. : 000500CT;
Heads map…………………………. : 0,1,2,3;
Preamp vendor……………………. : 0x0000;
Preamp revision………………….. : 0x0002;

;
