Category: HDD

HDD #1 Specs:;
SN: WCAPW0219177;
Model: WD5000AAJS-57TKA0;
Date: 15 FEB 2007;
DCM: HANCNV2ABB ;
Product of: Thailand;
PCB Sticker: 2061-701477-800 AB;
PCB Revision: 2060-701477-001 REV A;

;

;

HDD with Serial Number: WCAS80049471;
Model: WD5000AAJS-32YFA0;
Date: 20 AUG 2007;
DCM: HANCHT2AAB;
Product of: Thailand;
PCB Sticker: 2061-701477-100 04P;
PCB Revision: 2060-701477-002 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 2 : ACE/2766;
1 : 3 : A18/2584;
2 : 4 : AD4/2772;
3 : 5 : A7A/2682;
4 : 6 : ABC/2748;
5 : 7 : A60/2656;
ROM F/W version……………………. : 0058003J;
Heads map…………………………. : 2,3,4,5,6,7;
Preamp vendor…………………… : 0x0000;
Preamp revision…………………. : 0x0002;

;

HDD #1 Specs:;
SN: WCAPW4961060;
Model: WD5000AAJS-55TKA0;
Date: 11 SEP 2007;
DCM: DANCNV2MHB ;
Product of: Thailand;
PCB Sticker: 2061-701477-100 AB;
PCB Revision: 2060-701477-002 REV A;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 2   : 698/1688;
1   : 3   : 614/1556;
2   : 4   : 686/1670;
3   : 5   : 610/1552;
4   : 6   : 696/1686;
5   : 7   : 60C/1548;
ROM F/W version……………………. : 0021007B;
Preamp vendor……………………… : 0x0000;
Preamp revision……………………. : 0x0001;
;
;
;
;
;

;

HDD with Serial Number: WCAPW3979199;
Model: WD5000AAJS-57TKA0;
Date: 25 JUL 2007;
DCM: HANCNV2AHB;
Product of: Thailand;
PCB Sticker: 2061-701477-100 04P;
PCB Revision: 2060-701477-002 REV A;

;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 2 : 65E/1630;
1 : 3 : 672/1650;
2 : 4 : 632/1586;
3 : 5 : 68C/1676;
4 : 6 : 650/1616;
5 : 7 : 68E/1678;

;

ROM F/W version……………………. : 0011008P;
Preamp vendor……………………… : 0x0000;
Preamp revision……………………. : 0x0001;

;

HDD with Serial Number: WCAS80024494;
Model: WD5000AAJS-32YFA0;
Date: 18 AUG 2007;
DCM: HANCNT2CAB;
Product of: Thailand;
PCB Sticker: 2061-701477-100 04P;
PCB Revision: 2060-701477-002 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 2 : AFC/2812;
1 : 3 : A98/2712;
2 : 4 : ADC/2780;
3 : 5 : A80/2688;
4 : 6 : B2A/2858;
5 : 7 : A88/2696;

;

;
ROM F/W version: 0058003J;
Heads map: 2,3,4,5,6,7;
Preamp vendor: 0x0000;
Preamp revision: 0x0002;

;

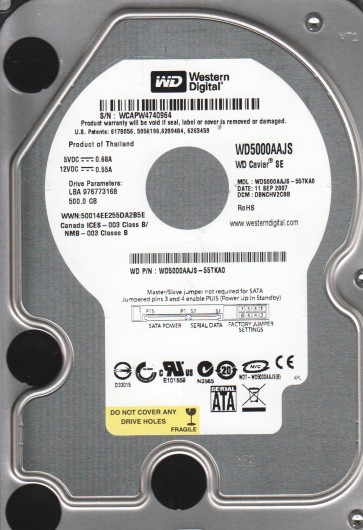

HDD #1 Specs:;
SN: WCAPW4740964;
Model: WD5000AAJS-55TKA0;
Date: 11 SEP 2007;
DCM: DBNCHV2CBB ;
Product of: Thailand;
PCB Sticker: 2061-701477-100 05P;
PCB Revision: 2060-701477-002 REV A;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 2   : 682/1666;
1   : 3   : 684/1668;
2   : 4   : 684/1668;
3   : 5   : 696/1686;
4   : 6   : 69A/1690;
5   : 7   : 69A/1690;
ROM F/W version……………………. : 0021007B;
Preamp vendor……………………… : 0x0000;
Preamp revision……………………. : 0x0001;
;
;
;
;
;
;

;

HDD with Serial Number: WCAPW4262860;
Model: WD5000AAJS-57TKA0;
Date: 07 AUG 2007;
DCM: HARCHV2MHB;
Product of: Thailand;
PCB Sticker: 2061-701477-100 04P;
PCB Revision: 2060-701477-002 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 2 : 69C/1692;
1 : 3 : 668/1640;
2 : 4 : 6C4/1732;
3 : 5 : 678/1656;
4 : 6 : 6D4/1748;
5 : 7 : 686/1670;
ROM F/W version……………………. : 00110090;
Heads map…………………………. : 2,3,4,5,6,7;
Preamp vendor……………………… : 0x0000;
Preamp revision……………………. : 0x0001;

;

HDD with Serial Number: WCAS84503408;
Model: WD5000AAJS-32YFA0;
Date: 10 JAN 2008;
DCM: HARCHT2AAB;
Product of: Thailand;
PCB Sticker: 2061-701477-100 AD;
PCB Revision: 2060-701477-002 REV A;

;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 2 : A4C/2636;
1 : 3 : A58/2648;
2 : 4 : A6A/2666;
3 : 5 : A3C/2620;
4 : 6 : A6E/2670;
5 : 7 : A42/2626;

;

ROM F/W version……………………. : 0058007R;
Preamp vendor……………………… : 0x0000;
Preamp revision……………………. : 0x0002;

;

HDD #1 Specs:;
SN: WCAPW4528901;
Model: WD5000AAJS-55TKA0;
Date: 08 SEP 2007;
DCM: DHRCNV2MHB ;
Product of: Thailand;
PCB Sticker: 2061-701447-100 04P;
PCB Revision: 2060-701477-002 REV A;

;
;

;

HDD with Serial Number: WMAPW1023316;
Model: WD5000AAJS-57TKA0;
Date: 06 DEC 2006;
DCM: HBNCNV2AB;
Product of: Malaysia;
PCB Sticker: 2061-701477-100 AD;
PCB Revision: 2060-701477-002 REV A;

;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 2 : 6A0/1696;
1 : 3 : 686/1670;
2 : 4 : 6F6/1782;
3 : 5 : 670/1648;
4 : 6 : 67A/1658;
5 : 7 : 696/1686;

;

ROM F/W version……………………. : 00110086;
Preamp vendor……………………… : 0x0000;
Preamp revision……………………. : 0x0001;

;
