Category: HDD

WD5000AAJS-32YFA0, DCM HHRNHT2AHB, Western Digital 500GB SATA 3.5 Hard Drive

Specifications;
SN: WCAS84465568;
Model: WD5000AAJS-32YFA0;
Date: 10 JAN 2008;
DCM: HHRNHT2AHB ;
Product of: Thailand;
PCB Sticker: 2061701477-100 AD;
PCB Revision: 2060-701477-002 REV A;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 2   : A30/2608;
1   : 3   : A44/2628;
2   : 4   : A1E/2590;
3   : 5   : A3C/2620;
4   : 6   : A2A/2602;
5   : 7   : A16/2582;
;
;

;

WD5000AAJS-55YFA0, DCM DBRNHT2CAB, Western Digital 500GB SATA 3.5 Hard Drive

Specifications;
SN: WCAS87954007;
Model: WD5000AAJS-55YFA0;
Date: 16 JUL 2008;
DCM: DBRNHT2CAB ;
Product of: Thailand;
PCB Sticker: 2061-701477-100 AFD8;
PCB Revision: 2060-701477-002 REV A;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 2   : A94/2708;
1   : 3   : AA6/2726;
2   : 4   : A5C/2652;
3   : 5   : AC8/2760;
4   : 6   : A8E/2702;
5   : 7   : A8C/2700;
ROM F/W version……………………. : 005800AF;
Preamp vendor……………………… : 0x0000;
Preamp revision……………………. : 0x0002;
;
;
;
;
;
;

;

WD5000AAJS-57TKA0, DCM HHNCHV2AAB, Western Digital 500GB SATA 3.5 Hard Drive

HDD with Serial Number: WCAPW5546472;
Model: WD5000AAJS-57TKA0;
Date: 04 NOV 2007;
DCM: HHNCHV2AAB;
Product of: Thailand;
PCB Sticker: 2061-701477-100 AC;
PCB Revision: 2060-701477-002 REV A;
;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 2   : 602/1538;
1   : 3   : 668/1640;
2   : 4   : 652/1618;
3   : 5   : 674/1652;
4   : 6   : 660/1632;
5   : 7   : 640/1600;
ROM F/W version……………………. : 0021007N;
Heads map…………………………. : 2,3,4,5,6,7;
Preamp vendor……………………. : 0x0000;
Preamp revision………………….. : 0x0001;

;

WD5000AAJS-55A8B0, DCM DGRNHT2MHN, Western Digital 500GB SATA 3.5 Hard Drive

HDD with Serial Number: WCASY2004565;
Model: WD5000AAJS-55A8B0;
Date: 07 AUG 2008;
DCM: DGRNHT2MHN;
Product of: Thailand;
PCB Sticker: 2061-701537-A00 10PD3;
PCB Revision: 2060-701537-003 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 9AE/2478;
1 : 1 : A0D/2573;
2 : 2 : 9C9/2505;
3 : 3 : A0A/2570;
ROM F/W version……………………. : 00050084;
Heads map…………………………. : 0,1,2,3;
Preamp vendor……………………. : 0x0000;
Preamp revision………………….. : 0x0002;

;

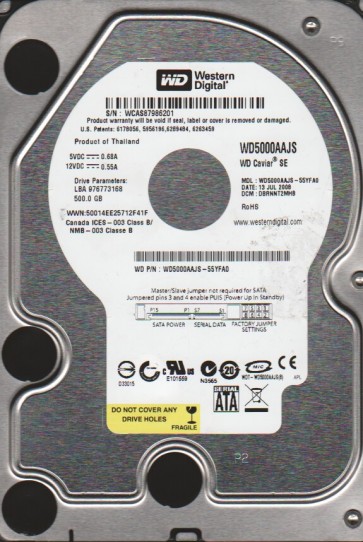

WD5000AAJS-55YFA0, DCM DBRNNT2MHB, Western Digital 500GB SATA 3.5 Hard Drive

Specifications;
SN: WCAS87986201;
Model: WD5000AAJS-55YFA0;
Date: 13 JUL 2008;
DCM: DBRNNT2MHB ;
Product of: Thailand;
PCB Sticker: 2061-701477-100 AFD8;
PCB Revision: 2060-701477-002 REV A;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 2   : AA4/2724;
1   : 3   : A58/2648;
2   : 4   : AA6/2726;
3   : 5   : A52/2642;
4   : 6   : A9A/2714;
5   : 7   : A46/2630;
ROM F/W version……………………. : 005800AF;
Preamp vendor……………………… : 0x0000;
Preamp revision……………………. : 0x0002;
;
;
;
;

;

WD5000AAJS-55A8B0, DCM DHRNHT2MHN, Western Digital 500GB SATA 3.5 Hard Drive

HDD #1 Specs:;
Serial Number: WCASY2119485;
Model: WD5000AAJS-55A8B0;
Date: 24 AUG 2008;
DCM: DHRNHT2MHN;
Product of: Thailand;
PCB Sticker: 2061-701537-A00 10PD3;
PCB Revision: 2060-701537-003 REV A;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 9EA/2538;
1   : 1   : A1F/2591;
2   : 2   : 9F6/2550;
3   : 3   : 9F8/2552;
ROM F/W version……………………. : 00050089;
Preamp vendor……………………… : 0x0000;
Preamp revision……………………. : 0x0002;
;
;
;
;
;
;
;

;

WD5000AAJS-55YFA0, DCM DHRNNT2AHB, Western Digital 500GB SATA 3.5 Hard Drive

HDD with Serial Number: WCAS87986169;
Model: WD5000AAJS-55YFA0;
Date: 15 JUL 2008;
DCM: DHRNNT2AHB;
Product of: Thailand;
PCB Sticker: 2061-701477-100 AFD8;
PCB Revision: 2060-701477-002 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 2 : 9D8/2520;
1 : 3 : A46/2630;
2 : 4 : 9D4/2516;
3 : 5 : A18/2584;
4 : 6 : A64/2660;
5 : 7 : 9E2/2530;
ROM F/W version……………………. : 005800AF;
Heads map…………………………. : 2,3,4,5,6,7;
Preamp vendor……………………. : 0x0000;
Preamp revision………………….. : 0x0002;

;

WD5000AAJS-55A8B0, DCM EBRNHTJCB, Western Digital 500GB SATA 3.5 Hard Drive

HDD with Serial Number: WMASY5323894;
Model: WD5000AAJS-55A8B0;
Date: 15 DEC 2008;
DCM: EBRNHTJCB;
Product of: Malaysia;
PCB Sticker: 2061-701537-E00 07PD3;
PCB Revision: 2060-701537-003 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : A10/2576;
1 : 1 : ABC/2748;
2 : 2 : A24/2596;
3 : 3 : A9E/2718;
ROM F/W version……………………. : 000500AP;
Heads map…………………………. : 0,1,2,3;
Preamp vendor…………………….. : 0x0001;
Preamp revision…………………… : 0x0001;

;

WD5000AAJS-55YFA0, DCM DHRNNT2MBB, Western Digital 500GB SATA 3.5 Hard Drive

Specifications;
SN: WCAS87872142;
Model: WD5000AAJS-55YFA0;
Date: 12 JUL 2008;
DCM: DHRNNT2MBB ;
Product of: Thailand;
PCB Sticker: 2061-701477-100 AFD8;
PCB Revision: 2060-701477-002 REV A;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 2   : AD2/2770;
1   : 3   : A52/2642;
2   : 4   : AEC/2796;
3   : 5   : A64/2660;
4   : 6   : AD0/2768;
5   : 7   : A6A/2666;
ROM F/W version……………………. : 005800AF;
Preamp vendor……………………… : 0x0000;
Preamp revision……………………. : 0x0002;
;
;
;
;

;
