Category: HDD

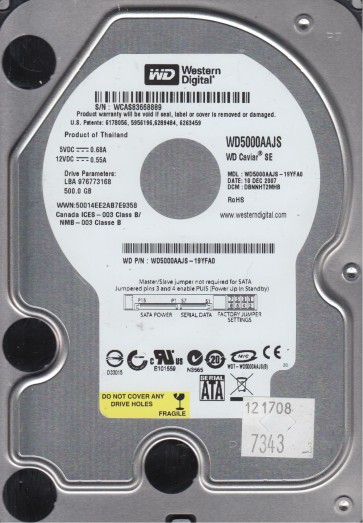

HDD with Serial Number: WCAS83668889;
Model: WD5000AAJS-19YFA0;
Date: 10 DEC 2007;
DCM: DBNNHT2MHB;
Product of: Thailand;
PCB Sticker: 2061-701477-100 AD;
PCB Revision: 2060-701477-002 REV A;

;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 2 : A7A/2682;
1 : 3 : A6C/2668;
2 : 4 : A40/2624;
3 : 5 : A58/2648;
4 : 6 : A44/2628;
5 : 7 : A56/2646;

;

ROM F/W version……………………. : 0058007M;
Preamp vendor……………………… : 0x0000;
Preamp revision……………………. : 0x0002;

;

HDD #1 Specs:;
Serial Number: WCASY1382178;
Model: WD5000AAJS-22A8B0;
Date: 01 JUL 2008;
DCM: HARNNT2MAB;
Product of: Thailand;
PCB Sticker: 2061-701537-A00 10P;
PCB Revision: 2060-701537-003 REV A;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 9B1/2481;
1   : 1   : A26/2598;
2   : 2   : 9A5/2469;
3   : 3   : A15/2581;
ROM F/W version……………………. : 00050084;
Preamp vendor……………………… : 0x0000;
Preamp revision……………………. : 0x0002;
;
;
;
;

;

HDD with Serial Number: WMASY0771136;
Model: WD5000AAJS-22A8B0;
Date: 19 MAR 2008;
DCM: HBNNNV2CB;
Product of: Malaysia;
PCB Sticker: 2061-701537-E00 02P;
PCB Revision: 2060-701537-003 REV A;

;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 866/2150;
1 : 1 : 8C1/2241;
2 : 2 : 898/2200;
3 : 3 : 8B2/2226;
;
ROM F/W version……………………. : 0002003F;
Preamp vendor……………………… : 0x0000;
Preamp revision……………………. : 0x0002;

;

HDD with Serial Number: WCASY3084034;
Model: WD5000AAJS-22A8B0;
Date: 26 NOV 2008;
DCM: HGRNHTJMHN;
Product of: Thailand;
PCB Sticker: 2061-701537-E00 07PD3;
PCB Revision: 2060-701537-003 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : A6E/2670;
1 : 1 : 9DE/2526;
2 : 2 : A72/2674;
3 : 3 : 9FC/2556;
ROM F/W version……………………. : 000500AP;
Heads map…………………………. : 0,1,2,3;
Preamp vendor……………………. : 0x0001;
Preamp revision………………….. : 0x0001;

;

HDD #1 Specs:;

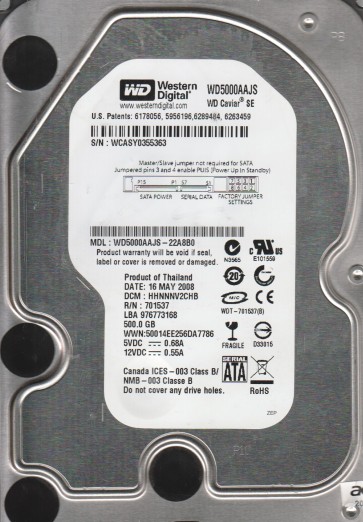

SN: WCASY0355363;
Model: WD5000AAJS-22A8B0;
Date: 16 MAY 2008;
DCM: HHNNNV2CHB ;
Product of: Thailand;
PCB Sticker: 2061-701537-A00 02P;
PCB Revision: 2060-701537-003 REV A;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 99B/2459;
1   : 1   : 944/2372;
2   : 2   : 991/2449;
3   : 3   : 938/2360;
ROM F/W version……………………. : 00050060;
Preamp vendor……………………… : 0x0000;
Preamp revision……………………. : 0x0002;
;
;
;
;
;
;

;

HDD with Serial Number: WCASY3028461;
Model: WD5000AAJS-22A8B0;
Date: 20 NOV 2008;
DCM: HHRNNTJMHN;
Product of: Thailand;
PCB Sticker: 2061-701537-A00 10PD3;
PCB Revision: 2060-701537-003 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : A02/2562;
1 : 1 : A16/2582;
2 : 2 : A1C/2588;
3 : 3 : 9EE/2542;
ROM F/W version……………………. : 000500AP;
Heads map…………………………. : 0,1,2,3;
Preamp vendor……………………. : 0x0001;
Preamp revision………………….. : 0x0001;

;

HDD with Serial Number: WCAPW0746784;
Model: WD5000AAJS-22TKA0;
Date: 03 MAR 2007;
DCM: HANCHV2AAB;
Product of: Thailand;
PCB Sticker: 2061-701477-000 AB;
PCB Revision: 2060-701477-001 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 2 : 666/1638;
1 : 3 : 676/1654;
2 : 4 : 66A/1642;
3 : 5 : 684/1668;
4 : 6 : 63A/1594;
5 : 7 : 674/1652;

;

ROM F/W version:0011008P;
Preamp vendor:0x0000;
Preamp revision:0x0001;

;

HDD with Serial Number: WCAPW1758612;
Model: WD5000AAJS-22TKA0;
Date: 19 MAY 2007;
DCM: HANCHV2CAB;
Product of: Thailand;
PCB Sticker: 2061-701477-000 AC;
PCB Revision: 2060-701477-001 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 2 : 656/1622;
1 : 3 : 658/1624;
2 : 4 : 68A/1674;
3 : 5 : 64C/1612;
4 : 6 : 680/1664;
5 : 7 : 656/1622;

;

ROM F/W version:0011008P;
Preamp vendor:0x0000;
Preamp revision:0x0001;

;

HDD with Serial Number: WCAS82449445;
Model: WD5000AAJS-00YFA0;
Date: 02 NOV 2007;
DCM: DARNHT2CHB;
Product of: Thailand;
PCB Sticker: 2061-701477-100 AD;
PCB Revision: 2060-701477-002 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 2 : ABE/2750;
1 : 3 : AC8/2760;
2 : 4 : A8E/2702;
3 : 5 : A34/2612;
4 : 6 : A6C/2668;
5 : 7 : A5A/2650;
ROM F/W version……………………. : 00580076;
Heads map…………………………. : 2,3,4,5,6,7;
Preamp vendor……………………. : 0x0000;
Preamp revision………………….. : 0x0002;

;

HDD with Serial Number: WCAS81939279;
Model: WD5000AAJS-00YFA0;
Date: 15 OCT 2007;
DCM: DHRNNT2CHB;
Product of: Thailand;
PCB Sticker: 2061-701477-100 AC;
PCB Revision: 2060-701477-002 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 2 : A8E/2702;
1 : 3 : A8C/2700;
2 : 4 : AB8/2744;
3 : 5 : A88/2696;
4 : 6 : A82/2690;
5 : 7 : A7E/2686;
ROM F/W version……………………. : 00580076;
Heads map…………………………. : 2,3,4,5,6,7;
Preamp vendor……………………… : 0x0000;
Preamp revision……………………. : 0x0002;

;
