Category: HDD

HDD with Serial Number: WCAV36149172;
Model: WD800AAJB-00J3A0;
Date: 24 DEC 2009;
DCM: HHRCHTJCHN;
Product of: Thailand;
PCB Sticker: 2061-701596-A00 14P;
PCB Revision: 2060-701596-001 REV P1;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : A3E/2622;
ROM F/W version……………………. : 000200CB;
Heads map…………………………. : 0;
Preamp vendor……………………. : 0x0001;
Preamp revision………………….. : 0x0003;

;

HDD with Serial Number: WCAPA0667304;
Model: WD800AAJS-00PSA0;
Date: 11 NOV 2007;
DCM: HGNNHT2AAN;
Product of: Thailand;
PCB Sticker: 2061-701444-600 AD;
PCB Revision: 2060-701444-004 REV A;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 78A/1930;
ROM F/W version……………………. : 0021007U;
Preamp vendor……………………… : 0x0000;
Preamp revision……………………. : 0x0004;
;
;
;
;

;

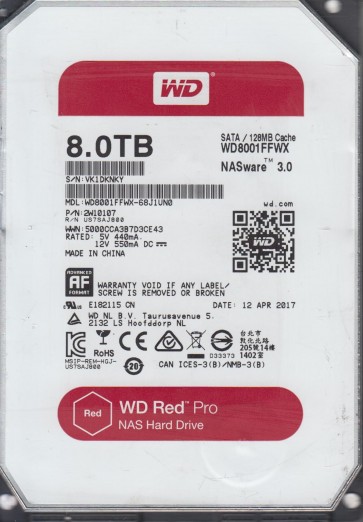

HDD with Serial Number: VK1DKNKY;
HDA Barcode: AS6104;
Model: WD8001FFWX-68J1UN0;
Part Number: 2W10107;
Product of: China;
Manufacturing Date: 12 APR 2017;
PCB Sticker: 0J35276 BA6680_;
PCB Revision: 0A90439;
Main Controller IC: LSI 7101B;
;

;

HDD with Serial Number: WCAV34247703;
Model: WD800AAJB-00J3A0;
Date: 22 SEP 2009;
DCM: HHRNHTJCHN;
Product of: Thailand;
PCB Sticker: 2061-701596-A00 12P;
PCB Revision: 2060-701596-001 REV P1;

;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 980/2432;

;

ROM F/W version……………………. : 000200C7;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0003;

;

HDD #1 Specs:;
SN: WMAPA1040538;
Model: WD800AAJS-00PSA0;
Date: 21 JUN 2008;
DCM: HGNNHTJCB ;
Product of: Malaysia;
PCB Sticker: 2061-701444-600 AC;
PCB Revision: 2060-701444-004 REV A;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 798/1944;
;

;

ROM F/W version……………………. : 0021008Q;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0003;

;

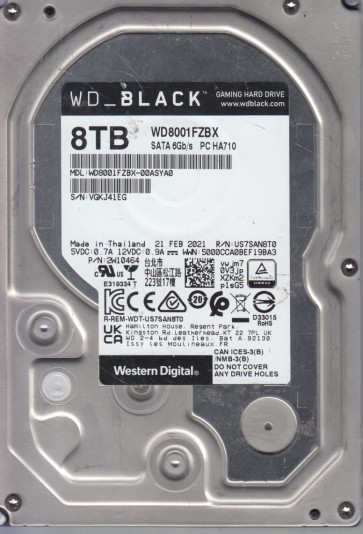

HDD with Serial Number: VGKJ41EG;
Model: WD8001FZBX-00ASYA0;
Date: 21 FEB 2021;
DCM: 2W10464;
Product of: Thailand;
PCB Sticker: 0F43494 C31412_;
PCB Revision: 0B41785;
;

HDD with Serial Number: VRH4KLDN;
Model: WD8001FZBX-00ASYA0;
Date: 12 JUN 2021;
DCM: 2W10464;
Product of: Thailand;
PCB Sticker: 0F43494 C35178_;
PCB Revision: 0B41785;
;

;

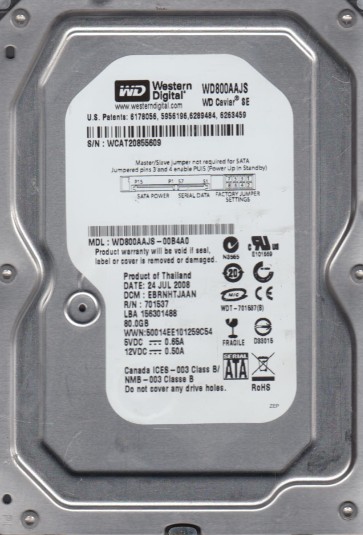

HDD with Serial Number: WCAT20855609;
Model: WD800AAJS-00B4A0;
Date: 24 JUL 2008;
DCM: EBRNHTJAAN;
Product of: Thailand;
PCB Sticker: 2061-701537-G00 AE;
PCB Revision: 2060-701537-003 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : A02/2562;
ROM F/W version……………………. : 0005007A;
Heads map…………………………. : 0;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0003;

;

HDD with Serial Number: WMAPC0073575;
Model: WD800AAJS-00PSA0;
Date: 10 SEP 2008;
DCM: HGRNNTJCG;
Product of: Malaysia;
PCB Sticker: 2061-701444-600 AH;
PCB Revision: 2060-701444-004 REV A;

;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 1 : 6DC/1756;

;

ROM F/W version……………………. : 0021008Q;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0003;

;

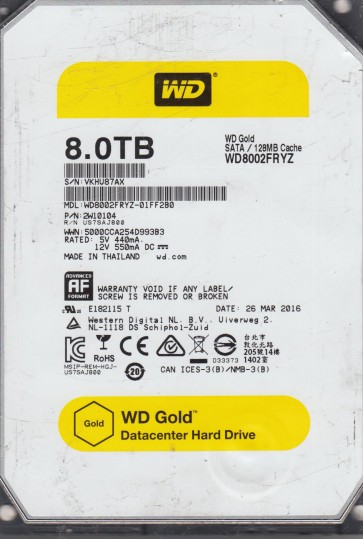

HDD with Serial Number: VKHU87AX;
HDA Barcode: AS6104;
Model: WD8002FRYZ-01FF2B0;
Part Number: 2W10104;
Product of: Thailand;
Manufacturing Date: 26 MAR 2016;
PCB Sticker: 0J35276 BA5145B;
PCB Revision: 0A90439;
Main Controller IC: LSI 7101B;
;

HDD with Serial Number: R6G5W4UY;
HDA Barcode: AS6104;
Model: WD8002FRYZ-01FF2B0;
Part Number: 2W10104;
Product of: Thailand;
Manufacturing Date: 16 MAR 2017;
PCB Sticker: 0J35276 BA6680_;
PCB Revision: 0A90439;
Main Controller IC: LSI 7101B;
;

;

HDD with Serial Number: WMAT21755054;
Model: WD800AAJS-00B4A0;
Date: 03 SEP 2008;
DCM: HHRNHT2CA;
Product of: Malaysia;
PCB Sticker: 2061-701537-G00 AE;
PCB Revision: 2060-701537-003 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : A64/2660;
ROM F/W version……………………. : 00050079;
Heads map…………………………. : 0;
Preamp vendor……………………… : 0x0000;
Preamp revision……………………. : 0x0005;

;
