Category: HDD

HDD #1 Specs:;
SN: WCAPW0534925;
Model: WD5000AAJS-00TKA0;
Date: 28 FEB 2008 M;
DCM: HBNCHV2CA ;
Product of: Thailand;
PCB Sticker: 2061-701477-000 AB;
PCB Revision: 2060-701477-001 REV A;

;


Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 2   : 6F0/1776;
1   : 3   : 66E/1646;
2   : 4   : 688/1672;
3   : 5   : 6BC/1724;
4   : 6   : 694/1684;
5   : 7   : 6C0/1728;
ROM F/W version……………………. : 0011008P;
Preamp vendor……………………… : 0x0000;
Preamp revision……………………. : 0x0001;
;
;
;
;
;
;

;

HDD with Serial Number: WCASY2873537;
Model: WD5000AAJS-00A8B0;
Date: 09 NOV 2008;
DCM: HHRNNTJMHN;
Product of: Thailand;
PCB Sticker: 2061-701537-A00 10PD3;
PCB Revision: 2060-701537-003 REV A;
;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 9FA/2554;
1   : 1   : 9F2/2546;
2   : 2   : 9AE/2478;
3   : 3   : A1E/2590

;

HDD with Serial Number: WCASY3941948;
Model: WD5000AAJS-00A8B2;
Date: 14 FEB 2009;
DCM: HARNHTJCAB;
Product of: Thailand;
PCB Sticker: 2061-701590-K00 AD;
PCB Revision: 2060-701590-000 REV A;

;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : A54/2644;
1 : 1 : AF4/2804;
2 : 2 : A3C/2620;
3 : 3 : A48/2632;

;

ROM F/W version……………………. : 000500BU;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0001;

;

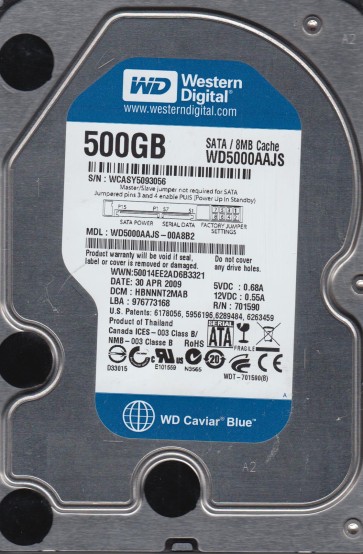

HDD #1 Specs:;
Serial Number: WCASY5093056;
Model: WD5000AAJS-00A8B2;
Date: 30 APR 2009;
DCM: HBNNNT2MAB;
Product of: Thailand;
PCB Sticker: 2061-701590-L00 AD;
PCB Revision: 2060-701590-000 REV A;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 9F8/2552;
1   : 1   : A28/2600;
2   : 2   : A0C/2572;
3   : 3   : 9FA/2554;
Preamp Vendor……………………… : 0000;
Preamp Rev………………………… : 0002;
ROM F/W version……………………. : 000500BU;
;
;
;
;
;

;

HDD with Serial Number: WCASY3690234;
Model: WD5000AAJS-00A8B2;
Date: 08 FEB 2009;
DCM: HBRNHT2MGB;
Product of: Thailand;
PCB Sticker: 2061-701590-L00 AD;
PCB Revision: 2060-701590-000 REV A;

;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : A66/2662;
1 : 1 : 9F8/2552;
2 : 2 : A3E/2622;
3 : 3 : 9AA/2474;

;

ROM F/W version……………………. : 000500BQ;
Preamp vendor……………………… : 0x0000;
Preamp revision……………………. : 0x0002;

;

HDD with Serial Number: WCASY3876850;
Model: WD5000AAJS-00A8B2;
Date: 15 FEB 2009;
DCM: HHNNHTJMBB;
Product of: Thailand;
PCB Sticker: 2061-701590-L00 AD;
PCB Revision: 2060-701590-000 REV A;

;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : A9E/2718;
1 : 1 : 99C/2460;
2 : 2 : A9E/2718;
3 : 3 : A10/2576;

;

ROM F/W version……………………. : 000500BQ;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0001;

;

HDD with Serial Number: WCASY3014709;
Model: WD5000AAJS-00A8B2;
Date: 17 NOV 2008;
DCM: HHRNHTJMHB;
Product of: Thailand;
PCB Sticker: 2061-701590-L00 01P;
PCB Revision: 2060-701590-000 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 9C8/2504;
1 : 1 : A56/2646;
2 : 2 : 9DC/2524;
3 : 3 : A42/2626;
ROM F/W version……………………. : 000500AP;
Heads map…………………………. : 0,1,2,3;
Preamp vendor……………………. : 0x0001;
Preamp revision………………….. : 0x0001;

;

HDD with Serial Number: WCAPW4682165;
Model: WD5000AAJS-00TKA0;
Date: 02 SEP 2008;
DCM: DBNCHV2A;
Product of: Thailand;
PCB Sticker: 2061-701477-100 04P;
PCB Revision: 2060-701477-002 REV A;

;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 2 : 692/1682;
1 : 3 : 6AE/1710;
2 : 4 : 6F6/1782;
3 : 5 : 6CC/1740;
4 : 6 : 6BA/1722;
5 : 7 : 6BC/1724;
;
ROM F/W version……………………. : 00110090;
Preamp vendor……………………… : 0x0000;
Preamp revision……………………. : 0x0001;

;

HDD #1 Specs:;
SN: WCAV9L734064;
Model: WD5000AADS-56S9B1;
Date: 01 MAR 2011;
DCM: HGRNHT2CHN ;
Product of: Thailand;
PCB Sticker: 2061-771640-803 01P;
PCB Revision: 2060-771640-003 REV A;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : D86/3462;
1   : 1   : D03/3331;
ROM F/W version……………………. : 007700DS;
Preamp vendor……………………… : 0x0000;
Preamp revision……………………. : 0x0005;
;
;
;
;
;
;

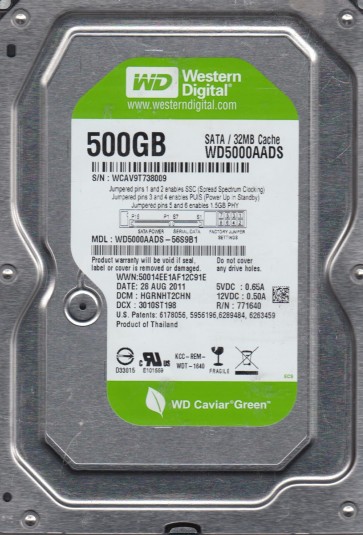

HDD with Serial Number: WCAV9T738009;
Model: WD5000AADS-56S9B1;
Date: 28 AUG 2011;
DCM: HGRNHT2CHN;
Product of: Thailand;
PCB Sticker: 2061-771640-803 AA;
PCB Revision: 2060-771640-003 REV A;
;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : CFE/3326;
1   : 1   : D43/3395;
ROM F/W version……………………. : 00780007;
Heads map…………………………. : 0,1;
Preamp vendor……………………… : 0x0000;
Preamp revision……………………. : 0x0005;
;
;
;
;

;

HDD with Serial Number: WCAPW2978679;
Model: WD5000AAJB-00UHA0;
Date: 19 JUN 2007;
DCM: HARCNV2CHB;
Product of: Thailand;
PCB Sticker: 2061-701508-100 AA;
PCB Revision: 2060-701508-001 REV A;
;

;
