Category: HDD

HDD with Serial Number: WCAV9R828826;
Model: WD5000AADS-57S9B1;
Date: 03 JUL 2011;
DCM: HGNNHT2AHN;
Product of: Thailand;
PCB Sticker: 2061-771640-803 01P;
PCB Revision: 2060-771640-003 REV A;

;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : BC9/3017;
1 : 1 : C71/3185;

;

ROM F/W version……………………. : 007700FA;
Preamp vendor……………………… : 0x0000;
Preamp revision……………………. : 0x0005;

;

HDD #1 Specs:;
Serial Number: WCAS81550727;
Model: WD5000AAJB-00YRA0;
Date: 14 Oct 2007;
DCM: DANCNT2MAB;
Product of: Thailand;
PCB Sticker: 2061-701508-100 AC;
PCB Revision: 2060-701508-001 REV A;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 2   : A0E/2574;
1   : 3   : 9B6/2486;
2   : 4   : A56/2646;
3   : 5   : 9EA/2538;
4   : 6   : A5A/2650;
5   : 7   : 9C8/2504;

;
;

;

HDD with Serial Number: WMASY0573770;
Model: WD5000AAJS-00A8B0;
Date: 05 MAR 2008;
DCM: HARNHT2CA;
Product of: Malaysia;
PCB Sticker: 2061-701537-A00 02P;
PCB Revision: 2060-701537-003 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 9D6/2518;
1 : 1 : 9F2/2546;
2 : 2 : 9CD/2509;
3 : 3 : A14/2580;
ROM F/W version……………………. : 00020035;
Heads map…………………………. : 0,1,2,3;
Preamp vendor……………………. : 0x0000;
Preamp revision………………….. : 0x0002;

;

HDD with Serial Number: WCAV9P115923;
Model: WD5000AADS-57S9B1;
Date: 22 MAY 2011;
DCM: HGRNHT2AHN;
Product of: Thailand;
PCB Sticker: 2061-771640-W03 02P;
PCB Revision: 2060-771640-003 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : CA1/3233;
1 : 1 : CE8/3304;
ROM F/W version……………………. : 007700E2;
Heads map…………………………. : 0,1;
Preamp vendor……………………… : 0x0000;
Preamp revision……………………. : 0x0005;

;

HDD #1 Specs:;
Serial Number: WCAS85773561;
Model: WD5000AAJB-00YRA0;
Date: 11 FEB 2008;
DCM: DBRNHT2CBN;
Product of: Thailand;
PCB Sticker: 2061-701508-100 AD;
PCB Revision: 2060-701508-001 REV A;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 2   : A74/2676;
1   : 3   : B22/2850;
2   : 4   : A6C/2668;
3   : 5   : B1E/2846;
4   : 6   : A64/2660;
5   : 7   : A88/2696;
ROM F/W version……………………. : 0058007T;
Preamp vendor……………………… : 0x0000;
Preamp revision……………………. : 0x0002;
;
;
;
;

;

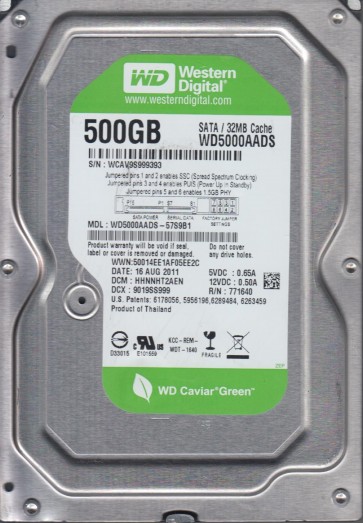

HDD with Serial Number: WCAV9S999393;
Model: WD5000AADS-57S9B1;
Date: 16 AUG 2011;
DCM: HHNNHT2AEN;
Product of: Thailand;
PCB Sticker: 2061-771640-803 AA;
PCB Revision: 2060-771640-003 REV A;
;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : C3F/3135;
1   : 1   : C84/3204;
ROM F/W version……………………. : 007700FA;
Heads map…………………………. : 0,1;
Preamp vendor……………………. : 0x0000;
Preamp revision………………….. : 0x0005;
;
;
;

;

HDD #1 Specs:;
Serial Number: WCAS82555032;
Model: WD5000AAJB-00YRA0;
Date: 11 NOV 2007;
DCM: DHNNHT2AAB;
Product of: Thailand;
PCB Sticker: 2061-701508-100 AD;
PCB Revision: 2060-701508-001 REV A;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 2   : 98E/2446;
1   : 3   : 9DA/2522;
2   : 4   : 994/2452;
3   : 5   : 9C8/2504;
4   : 6   : 9BC/2492;
5   : 7   : A08/2568;
ROM F/W version……………………. : 00580076;
Preamp vendor……………………… : 0x0000;
Preamp revision……………………. : 0x0002;
;
;
;
;
;
;

;

HDD with Serial Number: WCAV9V610285;
Model: WD5000AADS-57S9B1;
Date: 10 OCT 2011;
DCM: HHNNHT2CHN;
Product of: Thailand;
PCB Sticker: 2061-771640-803 AA;
PCB Revision: 2060-771640-003 REV A;

;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : C56/3158;
1 : 1 : CF5/3317;

;

ROM F/W version……………………. : 00780007;
Preamp vendor……………………… : 0x0000;
Preamp revision……………………. : 0x0005;

;

HDD with Serial Number: WCAS81807403;
Model: WD5000AAJB-00YRA0;
Date: 29 OCT 2007;
DCM: HANNNT2MAB;
Product of: Thailand;
PCB Sticker: 2061-701508-100 AC;
PCB Revision: 2060-701508-001 REV A;
;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 2   : A04/2564;
1   : 3   : AA0/2720;
2   : 4   : A16/2582;
3   : 5   : A28/2600;
4   : 6   : A20/2592;
5   : 7   : A7A/2682;
ROM F/W version……………………. : 00580076;
Heads map…………………………. : 2,3,4,5,6,7;
Preamp vendor……………………. : 0x0000;
Preamp revision………………….. : 0x0002;

;

HDD with Serial Number: WCAV9N189515;
Model: WD5000AADS-57S9B1;
Date: 30 APR 2011;
DCM: HHRNHT2AHN;
Product of: Thailand;
PCB Sticker: 2061-771640-803 AA;
PCB Revision: 2060-771640-003 REV A;

;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : B90/2960;
1 : 1 : CB4/3252;
ROM F/W version……………………. : 007700E2;
Heads map…………………………. : 0,1;
Preamp vendor……………………… : 0x0000;
Preamp revision……………………. : 0x0005;

;
