Category: HDD

WD800AAJS-00PSA0, DCM HHNNHTJCB, Western Digital 80GB SATA 3.5 Hard Drive

HDD with Serial Number: WMAPA1278668;
Model: WD800AAJS-00PSA0;
Date: 30 MAR 2009;
DCM: HHNNHTJCB;
Product of: Malaysia;
PCB Sticker: 2061-701444-600 AJ;
PCB Revision: 2060-701444-004 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 716/1814;
ROM F/W version……………………. : 0021008Q;
Heads map…………………………. : 0;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0003;

;

WD800AAJS-00L7A0, DCM DARNHT2CE, Western Digital 80GB SATA 3.5 Hard Drive

Specifications;
SN: WMAV40495842;
Model: WD800AAJS-00L7A0;
Date: 18 JAN 2005;
DCM: DARNHT2CE ;
Product of: Malaysia;
PCB Sticker: 2061-701590-X02 AD;
PCB Revision: 2060-701590-001 REV A;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 1   : 9E4/2532;
ROM F/W version……………………. : 000500F0;
Preamp vendor……………………… : 0x0000;
Preamp revision……………………. : 0x0005;
;
;
;
;
;
;

;

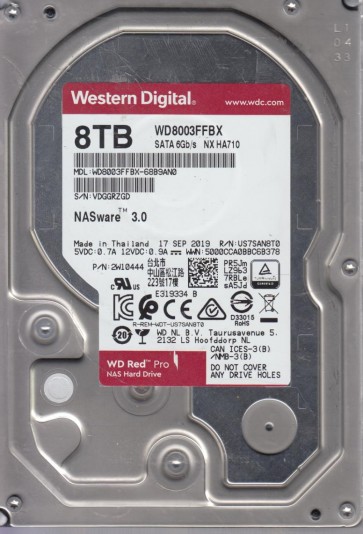

WD8003FFBX-68B9AN0, PN 2W10444, Western Digital 8TB SATA 3.5 Hard Drive

HDD with Serial Number: VDGGRZGD;
HDA Barcode: V99A03;
Model: WD8003FFBX-68B9AN0;
Part Number: 2W10444;
Product of: Thailand;
Manufacturing Date: 17 SEP 2019;
PCB Sticker: 0B36136 C06054_;
PCB Revision: 0B36131;
Main Controller IC: 6097;
;

HDD with Serial Number: VRJURLZK;
Model: WD8003FFBX-68B9AN0;
Part Number: 2W10444;
Product of: Thailand;
Manufacturing Date: 27 SEP 2021;
PCB Sticker: 0F43494 C37012_;
PCB Revision: 0B41785;
Main Controller IC: 6097;
;

;

WD800AAJS-00L7A0, DCM DBNNHTJCHN, Western Digital 80GB SATA 3.5 Hard Drive

HDD with Serial Number: WCAV2N950165;
Model: WD800AAJS-00L7A0;
Date: 23 MAY 2010;
DCM: DBNNHTJCHN;
Product of: Thailand;
PCB Sticker: 2061-701590-X02 AE;
PCB Revision: 2060-701590-001 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 9F0/2544;
ROM F/W version……………………. : 000500F9;
Heads map…………………………. : 0;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0003;

;

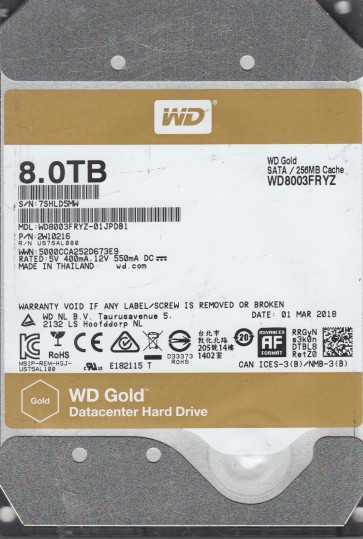

WD8003FRYZ-01JPDB1, PN 2W10216, Western Digital 8TB SATA 3.5 Hard Drive

HDD with Serial Number: 7SHLD5MW;
HDA Barcode: LM2504;
Model: WD8003FRYZ-01JPDB1;
Part Number: 2W10216;
Product of: Thailand;
Manufacturing Date: 01 MAR 2018;
PCB Sticker: 0J45413 BA6159A;
PCB Revision: 0A90561;
;

HDD with Serial Number: 7SJH0VRW;
Model: WD8003FRYZ-01JPDB1;
Part Number: 2W10216;
Product of: Thailand;
Manufacturing Date: 29 JUL 2018;
PCB Sticker: 0J45413 C09570_;
PCB Revision: 0A90561;
;

;

WD800AAJS-00L7A0, DCM HANNHTJAHN, Western Digital 80GB SATA 3.5 Hard Drive

HDD with Serial Number: WCAV36317207;
Model: WD800AAJS-00L7A0;
Date: 31 DEC 2009;
DCM: HANNHTJAHN;
Product of: Thailand;
PCB Sticker: 2061-701590-X02 AD;
PCB Revision: 2060-701590-001 REV A;

;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 932/2354;

;

ROM F/W version……………………. : 000500F9;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0003;

;

WD800AAJB-00J3A0, DCM DGRNHT2CGN, Western Digital 80GB IDE 3.5 Hard Drive

HDD with Serial Number: WCAV3D670182;
Model: WD800AAJB-00J3A0;
Date: 26 JAN 2011;
DCM: DGRNHT2CGN;
Product of: Thailand;
PCB Sticker: 2061-701596-A00 15P;
PCB Revision: 2060-701596-001 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : A04/2564;
ROM F/W version……………………. : 000200CC;
Heads map…………………………. : 0;
Preamp vendor……………………. : 0x0000;
Preamp revision………………….. : 0x0005;

;
