HDD with Serial Number: WCAV9N159297;
Model: WD5000AACS-61M6B2;
Date: 24 APR 2011;
DCM: HGRNHT2AHN;
Product of: Thailand;
PCB Sticker: 2061-771640-W03 02P;
PCB Revision: 2060-771640-003 REV A;
;
Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : C95/3221;
1 : 1 : C8E/3214;
ROM F/W version……………………. : 007700E2;
Heads map…………………………. : 0,1;
Preamp vendor……………………… : 0x0000;
Preamp revision……………………. : 0x0005;
;
HDD with Serial Number: WCAV5U584172;
Model: WD5000AADS-00M2B0;
Date: 13 JUN 2011;
DCM: DHNNNT2MAB;
Product of: Thailand;
PCB Sticker: 2061-771640-B03 AD;
PCB Revision: 2060-771640-003 REV A;
;
Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : C01/3073;
1 : 2 : BCC/3020;
2 : 3 : C7E/3198;
;
ROM F/W version: 007700EE;
Preamp vendor: 0x0000;
Preamp revision: 0x0002;
;
HDD with Serial Number: WCAUH1036243;
Model: WD5000AACS-00G8B1;
Date: 12 APR 2009;
DCM: HHRNHTJMBB;
Product of: Thailand;
PCB Sticker: 2061-701590-B00 AD;
PCB Revision: 2060-701590-000 REV A;
;
Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : A48/2632;
1 : 1 : A1E/2590;
2 : 3 : A2A/2602;
ROM F/W version……………………. : 000500C2;
Heads map…………………………. : 0,1,3;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0001;
;
Specifications;
SN: WCAV9L093817;
Model: WD5000AACS-61M6B2;
Date: 30 JAN 2011;
DCM: HHNNHT2AHN ;
Product of: Thailand;
PCB Sticker: 2061-771640-N03 02P;
PCB Revision: 2060-771640-003 REV A;
;
Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : D04/3332;
1 : 1 : C9C/3228;
ROM F/W version……………………. : 007700BM;
Preamp vendor……………………… : 0x0000;
Preamp revision……………………. : 0x0005;
;
;
;
;
;
;
;
HDD with Serial Number: WCAV5H665641;
Model: WD5000AADS-00M2B0;
Date: 01 OCT 2010;
DCM: EGNCHV2MAB;
Product of: Thailand;
PCB Sticker: 2061-771640-M03 AB;
PCB Revision: 2060-771640-003 REV P1;
;
Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 2 : B28/2856;
1 : 3 : B02/2818;
ROM F/W version……………………. : 007700C7;
Heads map…………………………. : 2,3;
Preamp vendor……………………. : 0x0000;
Preamp revision………………….. : 0x0002;
;
;
;
;
HDD with Serial Number: WCAUF2967354;
Model: WD5000AACS-00G8B1;
Date: 12 APR 2009;
DCM: HHRNHTJMGB;
Product of: Thailand;
PCB Sticker: 2061-701590-B00 AD;
PCB Revision: 2060-701590-000 REV A;
;
Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 9FC/2556;
1 : 2 : A22/2594;
2 : 3 : A80/2688;
ROM F/W version……………………. : 000500C2;
Heads map…………………………. : 0,2,3;
Preamp vendor……………………. : 0x0001;
Preamp revision………………….. : 0x0001;
;
Specifications;
SN: WCAV9P805915;
Model: WD5000AACS-61M6B2;
Date: 07 JUN 2011;
DCM: HHNNHT2CHN ;
Product of: Thailand;
PCB Sticker: 2061-771640-W03 02P;
PCB Revision: 2060-771640-003 REV A;
;
Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : CD9/3289;
1 : 1 : D0F/3343;
ROM F/W version……………………. : 007700FA;
Preamp vendor……………………… : 0x0000;
Preamp revision……………………. : 0x0005;
;
;
;
;
;
;
;
HDD #1 Specs:;
SN: WCAV5V783437;
Model: WD5000AADS-00M2B0;
Date: 11 SEP 2011;
DCM: EGNNHT2MGB ;
Product of: Thailand;
PCB Sticker: 2061-771640-M03 AE;
PCB Revision: 2060-771640-003 REV A;
;
Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : CD3/3283;
1 : 1 : C27/3111;
2 : 3 : C27/3111;
ROM F/W version……………………. : 0078000A;
Preamp vendor……………………… : 0x0000;
Preamp revision……………………. : 0x0002;
;
;
;
;
HDD with Serial Number: WMC5H0D10X8E;
Model: WD450VF4YZ-49SJYM0;
Date: 20 AUG 2020;
DCM: HBNNHVJMA;
Product of: Malaysia;
PCB Sticker: 771822-204 AE;
PCB Revision: 2060-771822-004 REV A;
;

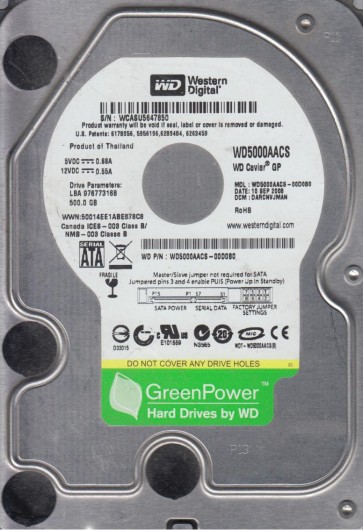

HDD with Serial Number: WCASU5647850;
Model: WD5000AACS-00D0B0;
Date: 10 SEP 2008;
DCM: DARCNVJMAN;
Product of: Thailand;
PCB Sticker: 2061-701477-F00 AED1;
PCB Revision: 2060-701477-002 REV A;
;
Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : A0A/2570;
1 : 1 : 98A/2442;
2 : 2 : 9C8/2504;
3 : 3 : 9CC/2508;
;
ROM F/W version: 005C008U;
Preamp vendor: 0x0001;
Preamp revision: 0x0001;
;
