Category: HDD

HDD with Serial Number: WCAUF1711092;
Model: WD5000AACS-00G8B0;
Date: 12 OCT 2008;
DCM: DBNNHT2MGN;
Product of: Thailand;
PCB Sticker: 2061-701537-R00 AD;
PCB Revision: 2060-701537-004 REV A;
;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : A2A/2602;
1   : 1   : A04/2564;
2   : 2   : A10/2576;
3   : 3   : A94/2708;
ROM F/W version……………………. : 000500AQ;
Heads map…………………………. : 0,1,2,3;
Preamp vendor……………………. : 0x0000;
Preamp revision…………………. : 0x0002;
;
;
;

;

HDD with Serial Number: WCAUF1151533;
Model: WD5000AACS-00G8B0;
Date: 01 SEP 2008;
DCM: EHRNHTJMAB;
Product of: Thailand;
PCB Sticker: 2061-701537-R00 AD;
PCB Revision: 2060-701537-004 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : A78/2680;
1 : 1 : 9FA/2554;
2 : 2 : A6C/2668;
3 : 3 : 9D6/2518;
ROM F/W version……………………. : 00050063;
Heads map…………………………. : 0,1,2,3;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0001;

;

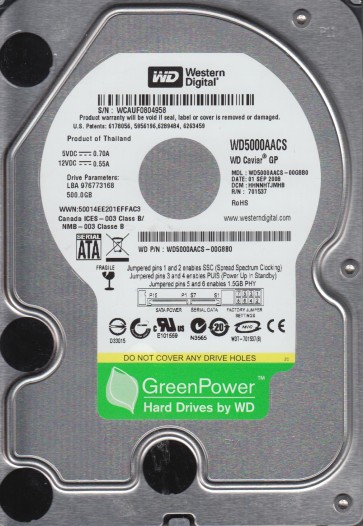

HDD #1 Specs:;
SN: WCAUF0804958;
Model: WD5000AACS-00G8B0;
Date: 01 SEP 2008;
DCM: HHNNHTJMHB ;
Product of: Thailand;
PCB Sticker: 2061-701537-R00 AD;
PCB Revision: 2060-701537-004 REV A;

;

;

HDD with Serial Number: WCAUH0484495;
Model: WD5000AACS-00G8B1;
Date: 13 FEB 2009;
DCM: DHNNHT2MAB;
Product of: Thailand;
PCB Sticker: 2061-701590-B00 AD;
PCB Revision: 2060-701590-000 REV A;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : A68/2664;
1   : 1   : A54/2644;
2   : 3   : A52/2642;
ROM F/W version……………………. : 000500BM;
Preamp vendor……………………… : 0x0000;
Preamp revision……………………. : 0x0002;
;
;
;
;

;

HDD with Serial Number: WCAUH0484863;
Model: WD5000AACS-00G8B1;
Date: 13 FEB 2009;
DCM: DHNNHT2MHB;
Product of: Thailand;
PCB Sticker: 2061-701590-B00 AD;
PCB Revision: 2060-701590-000 REV A;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : A0C/2572;
1   : 1   : A1E/2590;
2   : 3   : A0A/2570;
ROM F/W version……………………. : 000500BM;
Preamp vendor……………………… : 0x0000;
Preamp revision……………………. : 0x0002;
;
;
;
;

;

HDD with Serial Number: WCAUK0856288;
Model: WD5000AACS-00G8B1;
Date: 25 MAY 2009;
DCM: DHNNHTJMHB;
Product of: Thailand;
PCB Sticker: 2061-701590-B00 AD;
PCB Revision: 2060-701590-000 REV A;
;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : A8A/2698;
1   : 1   : A54/2644;
2   : 2   : A80/2688;
;
;
ROM F/W version: 000500C2;
Heads map: 0,1,2;
Preamp vendor: 0x0001;
Preamp revision: 0x0001

;

HDD #1 Specs:;
SN: WCAUF1342994;
Model: WD5000AACS-00G8B1;
Date: 30 SEP 2008;
DCM: EANNHT2MBN ;
Product of: Thailand;
PCB Sticker: 2061-701590-B00 02P;
PCB Revision: 2060-701590-000 REV P1;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : A5A/2650;
1   : 1   : A14/2580;
2   : 2   : A66/2662;
3   : 3   : A26/2598;

;

ROM F/W version……………………. : 000500AM;
Preamp vendor……………………… : 0x0000;
Preamp revision……………………. : 0x0002;

;

HDD with Serial Number: WCC7K1EYN21C;
Model: WD40PURZ-85TTDY0;
Date: 18 NOV 2018;
Product of: Thailand;
PCB Sticker: 800055-402 AF;
PCB Revision: 2060-800055-002 REV P1;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 00/0;
1 : 1 : 00/0;
2 : 2 : 00/0;
3 : 3 : 00/0;
4 : 4 : 00/0;
5 : 5 : 00/0;

;

ROM F/W version: 0002001V;
Preamp vendor: 0x0000;
Preamp revision: 0x0002;

;

HDD with Serial Number: WCAUH0235506;
Model: WD5000AACS-00G8B1;
Date: 19 JAN 2009;
DCM: EHRNNT2MAB;
Product of: Thailand;
PCB Sticker: 2061-701590-B00 02P;
PCB Revision: 2060-701590-000 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : ABC/2748;
1 : 1 : A94/2708;
2 : 3 : A7C/2684;
ROM F/W version……………………. : 000500BG;
Heads map…………………………. : 0,1,3;
Preamp vendor……………………… : 0x0000;
Preamp revision……………………. : 0x0002;

;

HDD with Serial Number: WCC7K0KJX4HD;
Model: WD40PURZ-85TTDY0;
Date: 07 FEB 2018;
DCM: HANNHT2MAB;
Product of: Thailand;
PCB Sticker: 800055-402 AC;
PCB Revision: 2060-800055-002 REV P1;
;

;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 00/0;
1 : 1 : 00/0;
2 : 2 : 00/0;
3 : 3 : 00/0;
4 : 4 : 00/0;
5 : 5 : 00/0;

;

ROM F/W version: 0002001P;
Heads map: 0,1,2,3,4,5;
Preamp vendor: 0x0000;
Preamp revision: 0x0002;

;
