Category: HDD

HDD with Serial Number: WCAW31428492;
Model: WD7502AAEX-00Y9A0;
Date: 27 MAR 2011;
DCM: HANCNTJABB;
Product of: Thailand;
PCB Sticker: 2061-771702-101 AG;
PCB Revision: 2060-771702-001 REV A;
;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : CA8/3240;
1   : 2   : CE4/3300;
2   : 3   : C74/3188

;

HDD with Serial Number: WCAW30241705;
Model: WD7502AAEX-00Y9A0;
Date: 20 DEC 2010;
DCM: HANNHTJAAB;
Product of: Thailand;
PCB Sticker: 2061-771702-101 AE;
PCB Revision: 2060-771702-001 REV P1;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : BCC/3020;
1   : 2   : BF4/3060;
2   : 3   : C38/3128;
ROM F/W version……………………. : 0005000Q;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0001;
;
;
;
;

;

HDD with Serial Number: WCAW30527558;
Model: WD7502AAEX-00Y9A0;
Date: 03 JAN 2011;
DCM: HARCHTJAAB;
Product of: Thailand;
PCB Sticker: 2061-771702-101 AE;
PCB Revision: 2060-771702-001 REV P1;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : C20/3104;
1 : 1 : C80/3200;
2 : 2 : C6C/3180;
ROM F/W version……………………. : 0005000Q;
Heads map…………………………. : 0,1,2;
Preamp vendor……………………. : 0x0001;
Preamp revision………………….. : 0x0001;

;

HDD with Serial Number: WCAW33461577;
Model: WD7502AAEX-00Y9A0;
Date: 15 DEC 2011;
DCM: HARNHTJAB;
Product of: Malaysia;
PCB Sticker: 2061-771702-101 AH;
PCB Revision: 2060-771702-001 REV A;

;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : CB8/3256;
1 : 1 : D40/3392;
2 : 3 : D08/3336;

;

ROM F/W version: 0065001A;
Heads map: 0,1,3;
Preamp vendor: 0x0001;
Preamp revision: 0x0001;

;

Specifications;
SN: WMAW30169020;
Model: WD7502AAEX-00Y9A0;
Date: 25 JAN 2012;
DCM: HARNNTJCAB ;
Product of: Thailand;
PCB Sticker: 2061-771702-B01 AA;
PCB Revision: 2060-771702-001 REV A;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : C70/3184;
1   : 1   : CA0/3232;
2   : 2   : CF4/3316;
3   : 3   : C94/3220;

;

ROM F/W version……………………. : 0065001A;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0001;

;

HDD with Serial Number: WCAW31096857;
Model: WD7502AAEX-00Y9A0;
Date: 28 MAR 2011;
DCM: HBRCHTJABB;
Product of: Thailand;
PCB Sticker: 2061-771702-101 AG;
PCB Revision: 2060-771702-001 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : C64/3172;
1 : 2 : C10/3088;
2 : 3 : CC0/3264;
ROM F/W version……………………. : 00050060;
Heads map…………………………. : 0,2,3;
Preamp vendor……………………. : 0x0001;
Preamp revision………………….. : 0x0001;

;

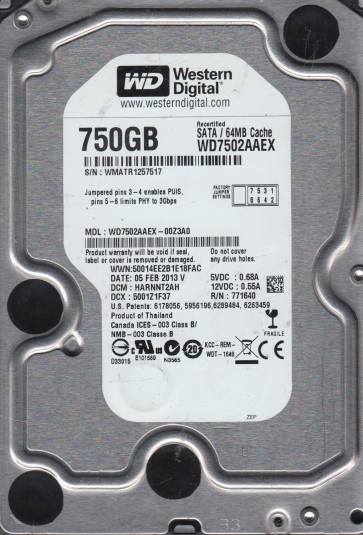

HDD with Serial Number: WMATR1257517;
Model: WD7502AAEX-00Z3A0;
Date: 05 FEB 2013;
DCM: HARNNT2AH;
Product of: Thailand;
PCB Sticker: 2061-771640-303 AD;
PCB Revision: 2060-771640-003 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : CC1/3265;
1 : 1 : D28/3368;
2 : 2 : CAA/3242;
ROM F/W version……………………. : 00010076;
Heads map…………………………. : 0,1,2;
Preamp vendor……………………. : 0x0000;
Preamp revision………………….. : 0x0005;

;

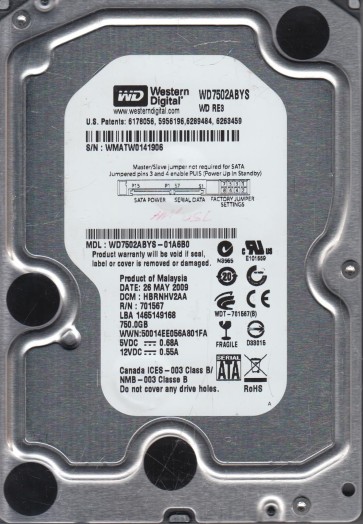

HDD with Serial Number: WMATW0141906;
Model: WD7502ABYS-01A6B0;
Date: 26 MAY 2009;
DCM: HBRNHV2AA;
Product of: Malaysia;
PCB Sticker: 2061-701567-400 AC;
PCB Revision: 2060-701567-000 REV A;
;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 3   : 898/2200;
1   : 4   : 8AE/2222;
2   : 5   : 890/2192;
3   : 6   : 87C/2172;
4   : 7   : 89F/2207;
ROM F/W version……………………. : 0005009H;
Heads map…………………………. : 3,4,5,6,7;
Preamp vendor……………………. : 0x0000;
Preamp revision………………….. : 0x0003;

;

HDD #1 Specs:;
SN: WMATV7869087;
Model: WD7502ABYS-02A6B0;
Date: 03 JUL 2010;
DCM: HANNHT2CA ;
Product of: Malaysia;
PCB Sticker: 2061-701567-400 AF;
PCB Revision: 2060-701567-000 REV A;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 2   : 9E4/2532;
1   : 3   : 9A2/2466;
2   : 4   : A0D/2573;
3   : 6   : A00/2560;
4   : 7   : 9D2/2514;
;

;

ROM F/W version……………………. : 0005009U;
Preamp vendor……………………… : 0x0000;
Preamp revision……………………. : 0x0003;

;

;
;

;

HDD #1 Specs:;
SN: WMATV6878788;
Model: WD7502ABYS-02A6B0;
Date: 03 APR 2010;
DCM: HARNHT2AB ;
Product of: Malaysia;
PCB Sticker: 2061-701567-400 AF;
PCB Revision: 2060-701567-000 REV A;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 3   : A4D/2637;
1   : 4   : A13/2579;
2   : 5   : A31/2609;
3   : 6   : A37/2615;
4   : 7   : A38/2616;
ROM F/W version……………………. : 0005009U;
Preamp vendor……………………… : 0x0000;
Preamp revision……………………. : 0x0003;
;
;
;
;
;
;

;
