Category: HDD

HDD with Serial Number: WCC4E0435058;
Model: WD40EURX-64WRWY0;
Date: 12 OCT 2013;
DCM: HGNNHTJMAB;
Product of: Thailand;
PCB Sticker: 771945-E01 04P;
PCB Revision: 2060-771945-001 REV P1;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 00/0;
1 : 1 : 00/0;
2 : 2 : 00/0;
3 : 3 : 00/0;
4 : 4 : 00/0;
5 : 5 : 00/0;
6 : 6 : 00/0;
7 : 7 : 00/0;
ROM F/W version……………………. : 00000016;
Heads map…………………………. : 0,1,2,3,4,5,6,7;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0002;

;

HDD with Serial Number: WCC4E6VVT12L;
Model: WD40EFRX-68WT0N0;
Date: 17 AUG 2015;
DCM: HARNNTJMHB;
Product of: Thailand;
PCB Sticker: 771945-F02 AB;
PCB Revision: 2060-771945-002 REV A;
;

;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 00/0;
1 : 1 : 00/0;
2 : 2 : 00/0;
3 : 3 : 00/0;
4 : 4 : 00/0;
5 : 5 : 00/0;
6 : 6 : 00/0;
7 : 7 : 00/0;

;

ROM F/W version: 0001008B;
Heads map: 0,1,2,3,4,5,6,7;
Preamp vendor: 0x0001;
Preamp revision: 0x0002;

;

HDD with Serial Number: WCC4E6VVTXJ2;
Model: WD40EFRX-68WT0N0;
Date: 17 AUG 2015;
DCM: HHRNNTJMHB;
Product of: Thailand;
PCB Sticker: 771945-F02 AB;
PCB Revision: 2060-771945-002 REV A;
;

;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 00/0;
1 : 1 : 00/0;
2 : 2 : 00/0;
3 : 3 : 00/0;
4 : 4 : 00/0;
5 : 5 : 00/0;
6 : 6 : 00/0;
7 : 7 : 00/0;

;

ROM F/W version: 0001008B;
Heads map: 0,1,2,3,4,5,6,7;
Preamp vendor: 0x0001;
Preamp revision: 0x0002;

;

HDD #1 Specs:;
Serial Number: WCC4E0447452;
Model: WD40EURX-64WRWY0;
Date: 17 OCT 2013;
DCM: HGNNNTJCGB;
Product of: Thailand;
PCB Sticker: 771945-E01 04P;
PCB Revision: 2060-771945-001 REV P1;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 00/0;
1   : 1   : 00/0;
2   : 2   : 00/0;
3   : 3   : 00/0;
4   : 4   : 00/0;
5   : 5   : 00/0;
6   : 6   : 00/0;
7   : 7   : 00/0;
ROM F/W version……………………. : 00000016;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0002;
;
;
;
;
;

;

HDD with Serial Number: WCC4E1849843;
Model: WD40EFRX-68WT0N0;
Date: 23 APR 2014;
DCM: HGNNHTJMGB;
Product of: Thailand;
PCB Sticker: 771945-F01 AC;
PCB Revision: 2060-771945-001 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 00/0;
1 : 1 : 00/0;
2 : 2 : 00/0;
3 : 3 : 00/0;
4 : 4 : 00/0;
5 : 5 : 00/0;
6 : 6 : 00/0;
7 : 7 : 00/0;
ROM F/W version……………………. : 00000054;
Heads map…………………………. : 0,1,2,3,4,5,6,7;
Preamp vendor……………………. : 0x0001;
Preamp revision………………….. : 0x0002;

;

HDD with Serial Number: WCC4E4EYF65P;
Model: WD40EFRX-68WT0N0;
Date: 08 DEC 2015;
DCM: T2;
Product of: Thailand;
PCB Sticker: 771945-F02;
PCB Revision: 2060-771945-002 REV A;
;

;

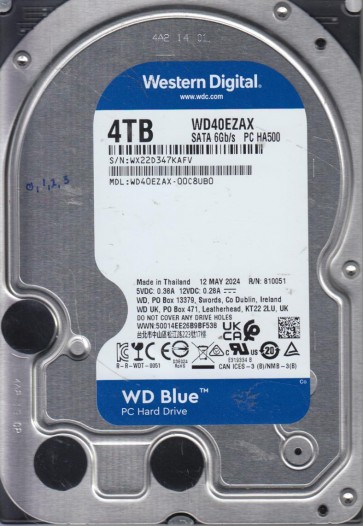

HDD with Serial Number: WX22D347KAFV;
Model: WD40EZAX-00C8UB0;
Date: 12 MAY 2024;
Product of: Thailand;
PCB Sticker: 810051-400 02;
PCB Revision: 2060-810051-000 REV P0;
;

HDD with Serial Number: WX32D94MCHTS;
Model: WD40EZAX-00C8UB0;
Date: 08 NOV 2024;
Product of: Thailand;
PCB Sticker: 810051-400 03;
PCB Revision: 2060-810051-000 REV P0;
;

;

HDD with Serial Number: WCC4EFPDHKFA;
Model: WD40EFRX-68WT0N0;
Date: 14 JUN 2014;
DCM: HGNNNT2MGB;
Product of: Thailand;
PCB Sticker: 771945-F01 AD;
PCB Revision: 2060-771945-001 REV P1;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 00/0;
1 : 1 : 00/0;
2 : 2 : 00/0;
3 : 3 : 00/0;
4 : 4 : 00/0;
5 : 5 : 00/0;
6 : 6 : 00/0;
7 : 7 : 00/0;
ROM F/W version……………………. : 00000058;
Heads map…………………………. : 0,1,2,3,4,5,6,7;
Preamp vendor……………………. : 0x0000;
Preamp revision………………….. : 0x0002;

;

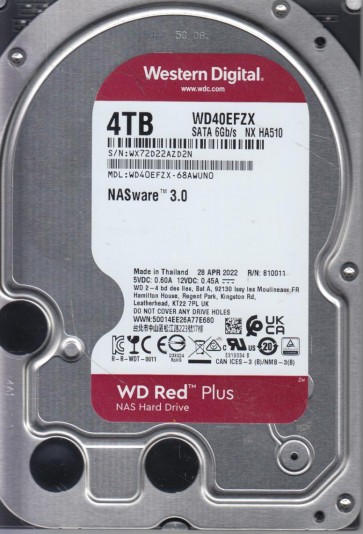

HDD with Serial Number: WX72D22AZD2N;
Model: WD40EFZX-68AWUN0;
Date: 28 APR 2022;
Product of: Thailand;
PCB Sticker: 810011-A01 AJ;
PCB Revision: 2060-810011-001 REV P1;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 00/0;
1 : 1 : 00/0;
2 : 2 : 00/0;
3 : 3 : 00/0;
4 : 4 : 00/0;

ROM F/W version: 0094001A;
Heads map: 0,1,2,3,4;
Preamp vendor: 0x0001;
Preamp revision: 0x00D1;

;

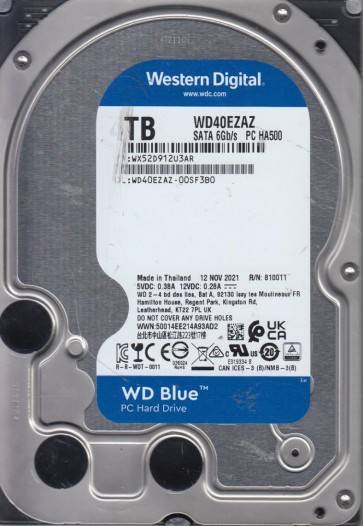

HDD with Serial Number: WX52D912U3AR;
Model: WD40EZAZ-00SF3B0;
Date: 12 NOV 2021;
Product of: Thailand;
PCB Sticker: 810011-811 AE;
PCB Revision: 2060-810011-001 REV P1;
ROM F/W: 0053004R;
Heads map: 0,1,2,3;
Preamp vendor: 0x0000;
Preamp revision: 0x0000;
;
;

;
