Category: HDD

HDD #1 Specs:;
SN: WMAJA3577154;
Model: WD400JD-75HKA1;
Date: 30 SEP 2004;
DCM: HSBHCTJCA ;
Product of: Malaysia;
PCB Sticker: 2061-001252-000 AH;
PCB Revision: 2060-001252-000 REV A;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 41A/1050;
ROM F/W version……………………. : 14DCG;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0003;
;
;
;

;

HDD #2 Specs:;
Serial Number: WMAJC2623832;
Model: WD400JD-75HKA1;
Date: 30 SEP 2004;
DCM: HSBHCTJCA;
Product of: Malaysia;
PCB Sticker: 2061-001252-000 AH;
PCB Revision: 2060-001252-000 REV A;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 1   : 474/1140;
Preamp Vendor……………………… : 0001;
Preamp Rev………………………… : 0003;
ROM F/W version……………………. : 14DCG;
;
;
;

;

Specifications:;
SN WXE406803015;
Model WD400UE-22HCT0;
Date 31 MAY 2006;
DCM HOHTJHFH ;
Product of Thailand;
PCB Sticker: 2061-701281-200 AA;
PCB Revision: 2060-701281-002 REV A;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : FCDF/64735;
1   : 1   : FC9D/64669;
;
;

;

HDD with Serial Number: WMAMA3700977;
Model: WD400JB-00JJC0;
Date: 08 MAY 2005;
DCM: HSBHYTJCA;
Product of: Malaysia;
PCB Sticker: 2061-701292-A00 AL;
PCB Revision: 2060-701292-000 REV A;
;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 47E/1150;
ROM F/W version……………………. : 0891C;
Heads map…………………………. : 0;
Preamp vendor……………………. : 0x0001;
Preamp revision…………………. : 0x0003;
;
;
;

;

HDD #1 Specs:;
SN: WMAJA3597747;
Model: WD400JD-75HKA1;
Date: 30 SEP 2004;
DCM: HSBHCTJCH ;
Product of: Malaysia;
PCB Sticker: 2061-001252-000 AH;
PCB Revision: 2060-001252-000 REV A;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 43E/1086;
;
ROM F/W version……………………. : 14DCG;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0003;
;
;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 442/1090;
;
ROM F/W version……………………. : 14DCG;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0003;
;
;
HDD with Serial Number: WMAJC2974462;
Model: WD400JD-75HKA1;
Date: 31 OCT 2004;
DCM: HSBHCTJCH;
Product of: Malaysia;
PCB Sticker: 2061-001252-000 AH;
PCB Revision: 2060-001252-000 REV A;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 1 : 45A/1114;

ROM F/W version……………………. : 14DCG;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0003;

;

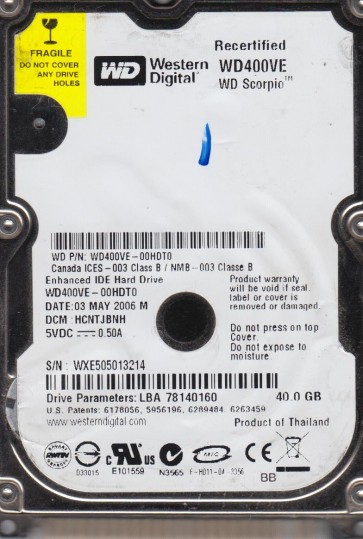

HDD #1 Specs:;
Serial Number: WXE505013214;
Model: WD400VE-00HDT0;
Date: 03 MAY 2006;
DCM: HCNTJBNH;
Product of: Thailand;
PCB Sticker: 2061-701285-100 AG;
PCB Revision: 2060-701285-001 REV A;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : FCBB/64699;
1   : 1   : FC55/64597;

;

ROM F/W version……………………. : 104SD;
Preamp vendor……………………… : 0x0004;
Preamp revision……………………. : 0x0002;

;

HDD with Serial Number: WCAMA5140835;
Model: WD400JB-00JJC0;
Date: 14 NOV 2007;
DCM: HSBHYTJEHN;
Product of: Thailand;
PCB Sticker: 2061-701292-A00 BA;
PCB Revision: 2060-701292-002 REV A;
;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 4A6/1190;
ROM F/W version……………………. : 0894C;
Heads map…………………………. : 0;
Preamp vendor……………………. : 0x0001;
Preamp revision…………………. : 0x0004;
;
;
;

;

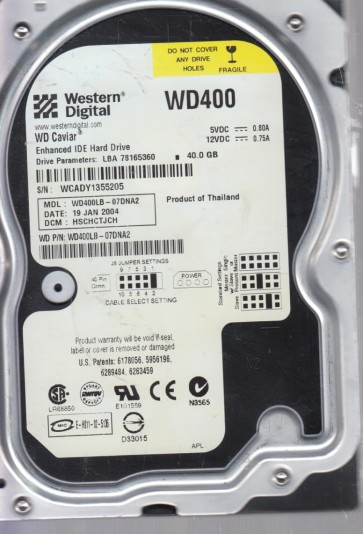

HDD with Serial Number: WCADY1355205;
Model: WD400LB-07DNA2;
Date: 19 JAN 2004;
DCM: HSCHCTJCH;
Product of: Thailand;
PCB Sticker: 2061-001159-200 AE;
PCB Revision: 2060-001159-006 REV A;
;

;

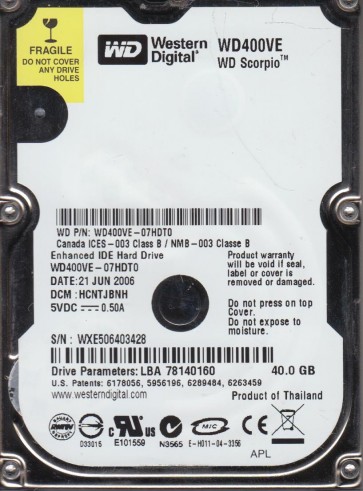

HDD #1 Specs:;
Serial Number: WXE506403428;
Model: WD400VE-07HDT0;
Date: 21 JUN 2006;
DCM: HCNTJBNH;
Product of: Thailand;
PCB Sticker: 2061-701285-200 AA;
PCB Revision: 2060-701285-002 REV A;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : FC69/64617;
1   : 1   : FC35/64565;
ROM F/W version……………………. : 1051D;
Preamp vendor……………………… : 0x0004;
Preamp revision……………………. : 0x0002;
;
;
;
;
;

;

HDD with Serial Number: WCAMA3588069;
Model: WD400JB-00JJC0;
Date: 04 NOV 2005;
DCM: HSCACTJAA;
Product of: Thailand;
PCB Sticker: 2061-701292-A00 AR;
PCB Revision: 2060-701292-000 REV A;
;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 48A/1162;
ROM F/W version……………………. : 0892C;
Heads map…………………………. : 0;
Preamp vendor……………………. : 0x0001;
Preamp revision…………………. : 0x0004;
;
;
;

HDD with Serial Number: WCAMA3577345;
Model: WD400JB-00JJC0;
Date: 04 NOV 2005;
DCM: HSCACTJAA;
Product of: Thailand;
PCB Sticker: 2061-701292-A00 AR;
PCB Revision: 2060-701292-000 REV A;
;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 43E/1086;
ROM F/W version……………………. : 0892C;
Heads map…………………………. : 0;
Preamp vendor……………………. : 0x0001;
Preamp revision………………….. : 0x0004;
;
;
;

;

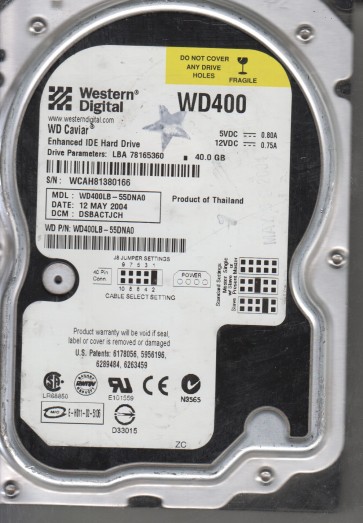

Specifications;
SN: WCAH81380166;
Model: WD400LB-55DNA0;
Date: 12 MAY 2004;
DCM: DSBACTJCH ;
Product of: Thailand;
PCB Sticker: 2061-001159-200 AG;
PCB Revision: 2060-001159-006 REV A;

;

Heads configuration………………… : From map;
Heads number………………………. : 1;
The number of heads in use………….. : 1;
Head map………………………….. : 0;
ROM version……………………….. : 77.1J.;
;
;
;
;

;
