Category: HDD

HDD with Serial Number: WXE506135029;
Model: WD400VE-08HDT0;
Date: 20 AUG 2006;
DCM: HCNTJHFBN;
Product of: Thailand;
PCB Sticker: 2061-701285-200 AB;
PCB Revision: 2060-701285-002 REV A;
;

;

HDD with Serial Number: WCAM99890631;
Model: WD400JB-00JJC0;
Date: 09 AUG 2005;
DCM: HSCANTJCA;
Product of: Thailand;
PCB Sticker: 2061-701292-A00 AL;
PCB Revision: 2060-701292-000 REV A;
;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 444/1092;
ROM F/W version……………………. : 0892C;
Heads map…………………………. : 0;
Preamp vendor……………………. : 0x0001;
Preamp revision…………………. : 0x0004;
;
;
;

;

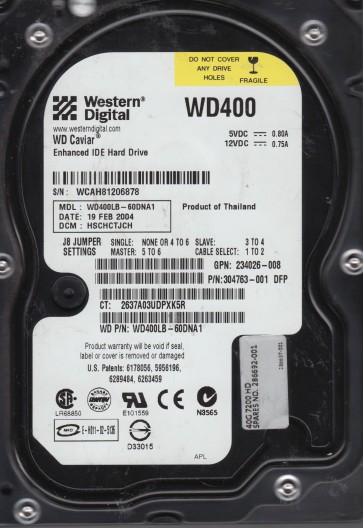

HDD #1 Specs:;
SN: WCAH81206878;
Model: WD400LB-60DNA1;
Date: 19 FEB 2004;
DCM: HSCHCTJCH ;
Product of: Thailand;
PCB Sticker: 2061-001159-200 AG;
PCB Revision: 2060-001159-006 REV A;

;

;

HDD with Serial Number: WXE306481273;
Model: WD400VE-08HDT0;
Date: 28 APR 2006;
DCM: HCNTJHNB;
Product of: Thailand;
PCB Sticker: 2061-701285-100 AK;
PCB Revision: 2060-701285-001 REV A;
;

;

HDD with Serial Number: WCAMC2803874;
Model: WD400JB-00JJC0;
Date: 08 AUG 2005;
DCM: HSCHCTJCA;
Product of: Thailand;
PCB Sticker: 2061-701292-A00 AL;
PCB Revision: 2060-701292-000 REV A;
;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 1   : 482/1154;
ROM F/W version……………………. : 0812C;
Heads map…………………………. : 1;
Preamp vendor……………………. : 0x0001;
Preamp revision…………………. : 0x0004;
;
;
;

;

HDD with Serial Number: WXEY05748672;
Model: WD400UE-00HCT0;
Date: DEC 28 2005;
DCM: HCHTJBFB;
Product of: Thailand;
PCB Sticker: 2061-701281-100 AG;
PCB Revision: 2060-701281-001 REV A;
;

;

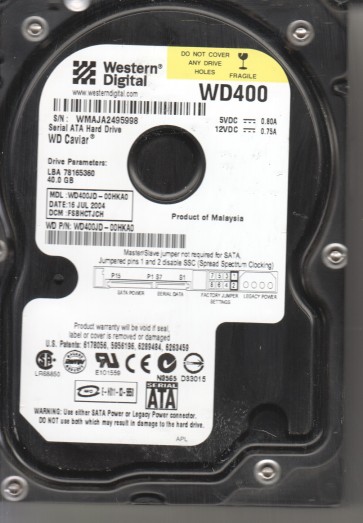

HDD #1 Specs:;
SN: WMAJA2495998;
Model: WD400JD-00HKA0;
Date: 16 JUL 2004;
DCM: FSBHCTJCH ;
Product of: Malaysia;
PCB Sticker: 2061-001252-000 AG;
PCB Revision: 2060-001252-000 REV A;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 44B/1099;
ROM F/W version……………………. : 13D7G;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0003;
;
;

;

HDD #1 Specs:;
SN: WMAJA2662900;
Model: WD400JD-00HKA0;
Date: 15 JUL 2004;
DCM: FSBHCTJCH ;
Product of: Malaysia;
PCB Sticker: 2061-001252-000 AG;
PCB Revision: 2060-001252-000 REV A;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 45B/1115;
ROM F/W version……………………. : 13D7G;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0003;
;
;
;
;
;
;

;

HDD #1 Specs:;
Serial Number: WXE305283336;
Model: WD400UE-00HCT0;
Date: 21 APR 2005;
DCM: HCNTJHNB;
Product of: Thailand;
PCB Sticker: 2061-701285-100 AE;
PCB Revision: 2060-701285-001 REV A;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : FC4B/64587;
1   : 1   : FC79/64633;
ROM F/W version……………………. : 096RD;
Preamp vendor……………………… : 0x0004;
Preamp revision……………………. : 0x0002;
;
;

;

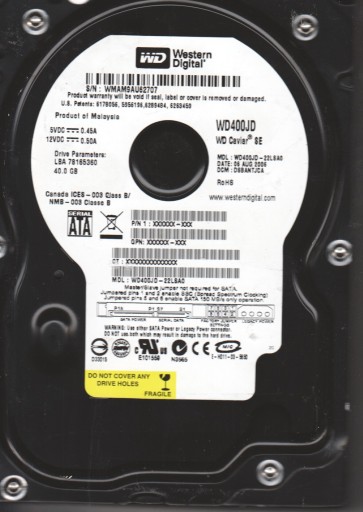

Specifications:;
SN WMAM9AU62707;
Model WD400JD-22LSA0;
Date 06 AUG 2006;
DCM DSBANTJCA ;
Product of Malaysia;
PCB Sticker: 2061-701335-E00 AE;
PCB Revision: 2060-701335-005 REV A;

;

ROM F/W version……………………. : 06BVD;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0004;
Heads map…………………………. : 1;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 1   : 46C/1132;
;
;

;

HDD with Serial Number: WXE105251205;
Model: WD400UE-00HCT0;
Date: 03 FEB 2005;
DCM: HCNTJHNH;
Product of: Thailand;
PCB Sticker: 2061-701281-100 AE;
PCB Revision: 2060-701281-001 REV A;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 2   : FC99/64665;
1   : 3   : FCE9/64745;
ROM F/W version……………………. : 092HD;
Preamp vendor……………………… : 0x0004;
Preamp revision……………………. : 0x0002;
;
;
;
;

;
