Category: HDD

HDD #1 Specs:;
Serial Number: WCAD17294129;
Model: WD400JB-00ENA0;
Date: 13 FEB 2003;
DCM: HSCHCT2AH;
Product of: Thailand;
PCB Sticker: 2061-001175-001 C;
PCB Revision: 2060-001175-000 REV A;

Micro Jogs
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;

;

;

HDD with Serial Number: WCAMA3584348;
Model: WD400JB-00JJC0;
Date: 04 NOV 2005;
DCM: DSCACTJAA;
Product of: Thailand;
PCB Sticker: 2061-701292-A00 AR;
PCB Revision: 2060-701292-000 REV A;
;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 418/1048;
ROM F/W version……………………. : 0892C;
Heads map…………………………. : 0;
Preamp vendor……………………. : 0x0001;
Preamp revision…………………. : 0x0004;
;
;
;

;

HDD #1 Specs:;

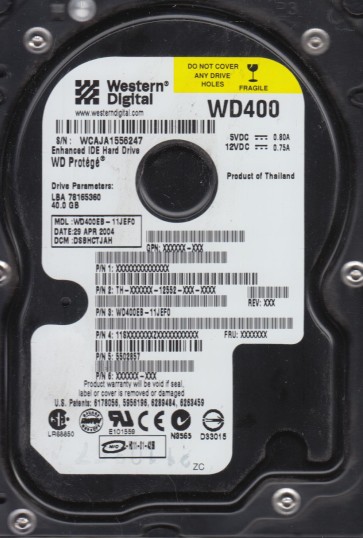

SN: WCAJA1556247;
Model: WD400EB-11JEF0;
Date: 29 APR 2004;
DCM: DSBHCTJAH ;
Product of: Thailand;
PCB Sticker: 2061-001130-300 AD;
PCB Revision: 2060-001130-012 REV A;

;

;
Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 48B/1163;
ROM F/W version……………………. : 134NG;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0003;
;
;
;
;

;

HDD with Serial Number: WCAHL4776731;
Model: WD400JB-00ETA0;
Date: 18 NOV 2003;
DCM: HSBHCTJAA;
Product of: Thailand;
PCB Sticker: 2061-001189-190 EE;
PCB Revision: 2060-001189-003 REV A;
Heads configuration………………… : From map;
Heads number………………………. : 2;
The number of heads in use………….. : 1;
Head map………………………….. : 0;

;

HDD with Serial Number: WMAMC1122445;
Model: WD400EB-11JUF0;
Date: 26 AUG 2004;
DCM: DSCHYTJCH;
Product of: Malaysia;
PCB Sticker: 2061-001292-000 AC;
PCB Revision: 2060-001292-000 REV A;
;

;

HDD #1 Specs:;
Serial Number: WCAHL5188135;
Model: WD400JB-00ETA0;
Date: 10 DEC 2003;
DCM: HSBHCTJCA;
Product of: Thailand;
PCB Sticker: 2061-001189-190 EG;
PCB Revision: 2060-001189-003 REV A;

;

ROM version……………………….. : 77.9D.;
Head map………………………….. : 0;
;
;
;

;

HDD with Serial Number: WCAMC1213494;
Model: WD400EB-11JUF0;
Date: 13 OCT 2004;
DCM: ESBHYTJAH;
Product of: Thailand;
PCB Sticker: 2061-001292-000 AD;
PCB Revision: 2060-001292-000 REV A;

;

;

;

Specifications:;
Model WD400JB-00ETA0;
SN WCAHL6095085;
DATE 13 JAN 2004;
DCM HSCHCTJCH;
Product of Thailand;
PCB Sticker: 2061-001189-190 EJ;
PCB Revision: 2060-001189-003 REV A;

;

Head map………………………….. : 1;

;

ROM version……………………….. : 77.9D.;

;

Specifications:;
SN WMAMA4377335;
Model WD400BD-75JMC0;
Date 10 JUN 2005;
DCM DSBHCTJCH ;
Product of Malaysia;
PCB Sticker: 2061-701293-100 AM;
PCB Revision: 2060-701293-001 REV A;

;

ROM F/W version……………………. : 0891C;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0004;
Heads map…………………………. : 0;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 474/1140;
;
;

;

HDD #2 Specs:;
SN: WMAMA3765083;
Model: WD400BD-75JMC0;
Date: 16 APR 2005;
DCM: DSBHCTJCH ;
Product of: Malaysia;
PCB Sticker: 2061-701293-100 AM;
PCB Revision: 2060-701293-001 REV A;

;

ROM F/W version……………………. : 088FC;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0003;
Heads map…………………………. : 0;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 440/1088;

;

;
;
;
;

;

Specifications:;
SN WMAMC7822811;
Model WD400BD-75MRA2;
Date 02 JUN 2006;
DCM HSBANTJCA ;
Product of Malaysia;
PCB Sticker: 2061-701335-D00 AD;
PCB Revision: 2060-701335-005 REV A;

;

;
