Category: HDD

HDD with Serial Number: WMATV3075747;
Model: WD7501AALS-00J7B0;
Date: 11 SEP 2009;
DCM: HANNHT2CA;
Product of: Malaysia;
PCB Sticker: 2061-701567-400 AD;
PCB Revision: 2060-701567-000 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 2 : A68/2664;
1 : 3 : A51/2641;
2 : 4 : A5B/2651;
3 : 5 : A3E/2622;
4 : 7 : A4B/2635;

;

ROM F/W: 0009009K;
Heads map: 2,3,4,5,7;
Preamp vendor: 0x0000;
Preamp revision: 0x0003;

;

HDD #1 Specs:;
SN: WMATV2064275;
Model: WD7501AALS-00J7B1;
Date: 17 JUN 2009;
DCM: HBNNHV2AB ;
Product of: Malaysia;
PCB Sticker: 2061-701622-800 03P;
PCB Revision: 2060-701622-000 REV P1;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 2   : 8B5/2229;
1   : 3   : 8AD/2221;
2   : 5   : 8D7/2263;
3   : 6   : 87D/2173;
4   : 7   : 8D8/2264;
;
;

;

HDD with Serial Number: WMATV2616706;
Model: WD7501AALS-00J7B0;
Date: 27 JUL 2009;
DCM: HANNHV2CA;
Product of: Malaysia;
PCB Sticker: 2061-701567-400 AD;
PCB Revision: 2060-701567-000 REV A;

;

;

;

HDD with Serial Number: WMATV1672726;
Model: WD7501AALS-00J7B1;
Date: 14 MAY 2009;
DCM: HBNNNV2AA;
Product of: Malaysia;
PCB Sticker: 2061-701622-800 02P;
PCB Revision: 2060-701622-000 REV P1;
;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 2   : 901/2305;
1   : 3   : 88B/2187;
2   : 5   : 869/2153;
3   : 6   : 901/2305;
4   : 7   : 87F/2175;
ROM F/W version……………………. : 00050095;
Heads map…………………………. : 2,3,5,6,7;
Preamp vendor……………………. : 0x0000;
Preamp revision………………….. : 0x0003;
;
;
;

;

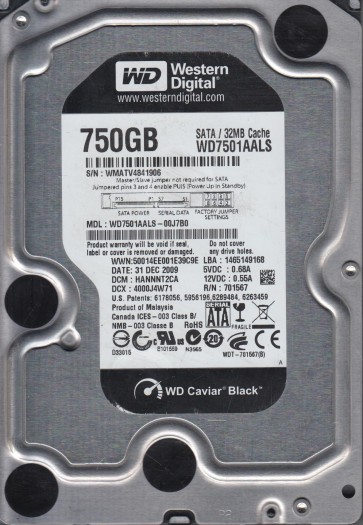

HDD with Serial Number: WMATV4841906;
Model: WD7501AALS-00J7B0;
Date: 31 DEC 2009;
DCM: HANNNT2CA;
Product of: Malaysia;
PCB Sticker: 2061-701567-400 AE;
PCB Revision: 2060-701567-000 REV A;
Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 3   : 9DA/2522;
1   : 4   : 9C7/2503;
2   : 5   : 97F/2431;
3   : 6   : 9E2/2530;
4   : 7   : 988/2440;
ROM F/W version……………………. : 0009009R;
Heads map…………………………. : 3,4,5,6,7;
Preamp vendor……………………. : 0x0000;
Preamp revision………………….. : 0x0003;

;

HDD with Serial Number: WMATW0190658;
Model: WD7501AALS-00J7B1;
Date: 15 JUN 2009;
DCM: HBRNNV2CA;
Product of: Malaysia;
PCB Sticker: 2061-701622-800 03P;
PCB Revision: 2060-701622-000 REV P1;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 3 : 8EE/2286;
1 : 4 : 8B9/2233;
2 : 5 : 8CB/2251;
3 : 6 : 8C6/2246;
4 : 7 : 8A9/2217;

;

ROM F/W version:00050095;
Preamp vendor:0x0000;
Preamp revision:0x0003;

;

HDD with Serial Number: WMATV4973116;
Model: WD7501AALS-00J7B0;
Date: 24 DEC 2009;
DCM: HANNNV2CB;
Product of: Malaysia;
PCB Sticker: 2061-701567-400 AE;
PCB Revision: 2060-701567-000 REV A;
;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 2   : 8EB/2283;
1   : 3   : 923/2339;
2   : 4   : 99D/2461;
3   : 6   : 94E/2382;
4   : 7   : 941/2369

;

HDD with Serial Number: WMATW0259771;
Model: WD7501AALS-75J7B0;
Date: 22 OCT 2009;
DCM: HANNHT2AA;
Product of: Malaysia;
PCB Sticker: 2061-701567-400 AD;
PCB Revision: 2060-701567-000 REV A;
;

;

HDD with Serial Number: WCATR4124651;
Model: WD7501AAES-75W7A0;
Date: 19 OCT 2010;
DCM: HARNHTJCAB;
Product of: Thailand;
PCB Sticker: 2061-771640-303 ABD2;
PCB Revision: 2060-771640-003 REV P1;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : CC2/3266;
1   : 1   : CF3/3315;
2   : 2   : CC4/3268;
3   : 3   : D0E/3342;
ROM F/W version……………………. : 0001002G;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0001;
;
;
;
;

;

HDD with Serial Number: WMATV5048193;
Model: WD7501AALS-00J7B0;
Date: 03 JAN 2010;
DCM: HARNHT2AA;
Product of: Malaysia;
PCB Sticker: 2061-701567-400 AE;
PCB Revision: 2060-701567-000 REV A;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 2   : A05/2565;
1   : 3   : A2F/2607;
2   : 5   : A17/2583;
3   : 6   : 9E4/2532;
4   : 7   : A39/2617;
ROM F/W version……………………. : 0009009U;
Preamp vendor……………………… : 0x0000;
Preamp revision……………………. : 0x0003;
;
;
;
;

;
