Category: HDD

HDD #1 Specs:;
Serial Number: WMAME1866507;
Model: WD400BD-60LTA0;
Date: 14 AUG 2005;
DCM: HSBHNTJCH;
Product of: Malaysia;
PCB Sticker: 2061-701335-A00 AG;
PCB Revision: 2060-701335-003 REV B;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 4A8/1192;
ROM F/W version……………………. : 06BGD;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0004;
;
;
;
;
;
;

;

HDD #1 Specs:;
Serial Number: WMAMC2232779;
Model: WD400BD-75JMA0;
Date: 04 MAR 2005;
DCM: DSBAYTJCA ;
Product of: Malaysia;
PCB Sticker: 2061-001293-100 AK;
PCB Revision:  2060-001293-001 REV A;

;

ROM F/W version……………………. : 088CC;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0003;
Heads map…………………………. : 1;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 1   : 462/1122;
;
;

;

HDD #2 Specs:;
Serial Number: WMAMC1772614;
Model: WD400BD-75JMA0;
Date: 04 Nov 2004;
DCM: DSBAYTJCA;
Product of: Malaysia;
PCB Sticker: 2061-001293-100 AH;
PCB Revision: 2060-001293-000 REV A;

;

ROM F/W version……………………. : 05BFC;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0003;
Heads map…………………………. : 1;
;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 1   : 476/1142;

;

HDD #1 Specs:;
SN: WMAMC2706952;
Model: WD400BD-75JMA0;
Date: 01 MAR 2005;
DCM: DSBHCTJCH ;
Product of: Malaysia;
PCB Sticker: 2061-001293-100 AK;
PCB Revision: 2060-001293-001 REV A;

;

ROM F/W version……………………. : 088CC;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0003;
Heads map…………………………. : 1;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 1   : 44C/1100;
;
;

;

HDD #2 Specs:;
Serial Number: WMAMC2418358;
Model: WD400BD-75JMA0;
Date: 03 FEB 2005;
DCM: DSBHCTJCH;
Product of: Malaysia;
PCB Sticker: 2061-001293-100 AK;
PCB Revision: 2060-001293-001 REV A;

;

ROM F/W version……………………. : 0889C;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0003;
Heads map…………………………. : 1;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 1   : 462/1122;
;
;

;

HDD #1 Specs:;
SN: WMAMA2319628;
Model: WD400BD-75JMA0;
Date: 10 JAN 2005;
DCM: DSCHCTJCH ;
Product of: Malaysia;
PCB Sticker: 2061-001293-100 AK;
PCB Revision: 2060-001293-001 REV A;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 464/1124;
ROM F/W version……………………. : 0886C;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0003;
;
;
;
;
;

;

Specifications:;
SN WMAMA2224125;
Model WD400BD-75JMA0;
Date 26 DEC 2004;
DCM DSCHYTJCA ;
Product of Malaysia;
PCB Sticker: 2061-001293-100 AK;
PCB Revision: 2060-001293-001 REV A;

;

ROM F/W version……………………. : 059DC;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0003;
Heads map…………………………. : 0;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 40C/1036;
;
;

;

Specifications:;
SN WMAMC2603893;
Model WD400BD-75JMA0;
Date 09 JAN 2005;
DCM DSCHYTJCH ;
Product of Malaysia;
PCB Sticker: 2061-001293-100 AK;
PCB Revision: 2060-001293-001 REV A;

;

ROM F/W version……………………. : 0886C;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0003;
Heads map…………………………. : 1;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 1   : 44C/1100;
;
;

;

HDD #1 Specs:;
SN WMAMA2085653;
Model WD400BD-75JMA0;
Date 26 DEC 2004;
DCM ESBHYTJCH ;
Product of Malaysia;
PCB Sticker: 2061-001293-100 AK;
PCB Revision: 2060-001293-001 REV A;

;

ROM F/W version……………………. : 059DC;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0003;
Heads map…………………………. : 0;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 444/1092;
;
;

;

HDD #2 Specs:;
SN WMAMA2603445;
Model WD400BD-75JMA0;
Date 16 JAN 2005;
DCM ESBHYTJCH;
Product of Malaysia;
PCB Sticker: 2061-001293-100 AK;
PCB Revision: 2060-001293-001 REV A;

;

ROM F/W version……………………. : 0887C;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0003;
Heads map…………………………. : 0;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 422/1058;
;
;

;

HDD #1 Specs:;

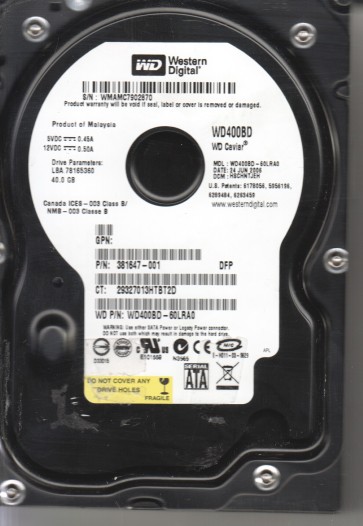

SN: WMAMC7902870;
Model: WD400BD-60LRA0;
Date: 24 JUN 2006;
DCM: HSCHNTJEH ;
Product of: Malaysia;
PCB Sticker: 2061-701335-D00 AD;
PCB Revision: 2060-701335-005 REV A;

;

ROM F/W version……………………. : 06BUD;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0004;
Heads map…………………………. : 1;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 1   : 47C/1148;
;
;

;

HDD #1 Specs:;
SN: WMAMA2765322;
Model: WD400BD-75JMA0;
Date: 31 MAR 2005;
DCM: HSBACTJCA ;
Product of: Malaysia;
PCB Sticker: 2061-001293-100 AK;
PCB Revision: 2060-001293-001 REV A;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 434/1076;
;

;

ROM F/W version……………………. : 088FC;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0003;

;

;
PCB Revision:  2060-001293-001 REV A;
HDD with Serial Number: WMAMA2617212;
Model: WD400BD-75JMA0;
Date: 15 JAN 2005;
DCM: HSBACTJCA;
Product of: Malaysia;
PCB Sticker: 2061-001293-100 AK;
;
Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 42C/1068;
;
ROM F/W version……………………. : 0887C;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0003;

;

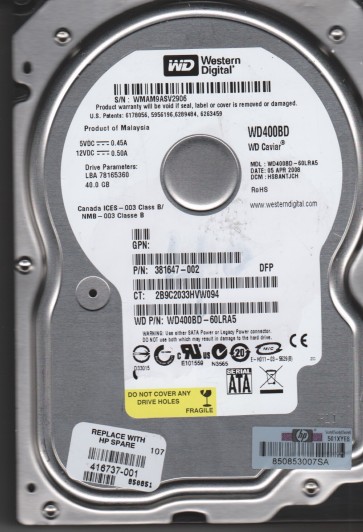

HDD with Serial Number: WMAMA9930666;
Model: WD400BD-60LRA5;
Date: 18 OCT 2006;
DCM: HSBACTJCA;
Product of: Malaysia;
PCB Sticker: 2061-701335-E00 AG;
PCB Revision: 2060-701335-005 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 47C/1148;
ROM F/W version……………………. : 408RE;
Heads map…………………………. : 0;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0004;

;
