Category: HDD

WD4005FZBX-00K5WB0, PN 2W10405, Western Digital 4TB SATA 3.5 Hard Drive

HDD with Serial Number: V6GK0YRR;
HDA Barcode: VK9603;
Model: WD4005FZBX-00K5WB0;
Part Number: 2W10405;
Product of: Thailand;
Manufacturing Date: 10 OCT 2018;
PCB Sticker: 0B36136 C13811_;
PCB Revision: 0B36131;
Main Controller IC: 6097;
;

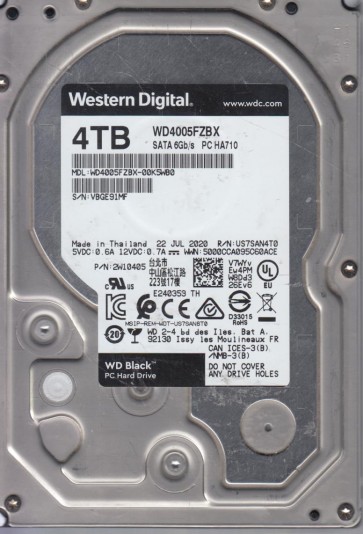

HDD with Serial Number: VBGE91MF;
HDA Barcode: VT9B03;
Model: WD4005FZBX-00K5WB0;
Part Number: 2W10405;
Product of: Thailand;
Manufacturing Date: 22 JUL 2020;
PCB Sticker: 0B36136 C20525_;
PCB Revision: 0B36131;
Main Controller IC: 6097;
;

;

WD4003FZEX-00Z4SA0, DCM HANNNTJAB, Western Digital 4TB SATA 3.5 Hard Drive

HDD with Serial Number: WCC5D7KZJATZ;
Model: WD4003FZEX-00Z4SA0;
Date: 26 JAN 2016;
DCM: HANNNTJAB;
Product of: Malaysia;
PCB Sticker: 771822-206 AA;
PCB Revision: 2060-771822-006 REV A;
;

;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 11A6/4518;
1 : 1 : 120F/4623;
2 : 2 : 11AF/4527;
3 : 3 : 1206/4614;
4 : 4 : 11D4/4564;
5 : 5 : 1226/4646;
6 : 6 : 11AF/4527;
7 : 7 : 11C3/4547;
8 : 8 : 11E4/4580;
9 : 9 : 11E3/4579;

;

ROM F/W version: 000100C2;
Heads map: 0,1,2,3,4,5,6,7,8,9;
Preamp vendor: 0x0001;
Preamp revision: 0x0003;

;

WD400AW-00DDK1, DCM HERHNA2AH, Western Digital 40GB IDE 3.5 Hard Drive

HDD #1 Specs:;
SN: WMACE1031277;
Model: WD400AW-00DDK1;
Date: 11 JAN 2003;
DCM: HERHNA2AH ;
Product of: Malaysia;
PCB Sticker: 2061-001092-301 D;
PCB Revision: 2060-001092-007 REV A;

;

ROM:;
Read ROM………………………….. : Ok;
ROM version……………………….. : 04.28 B;
ROM generation…………………….. : 34;
Link table version…………………. : 07.10;
Head map………………………….. : 0,1;
;
;

;

WD4003FZEX-00Z4SA0, DCM HANNNVJMAB, Western Digital 4TB SATA 3.5 Hard Drive

HDD with Serial Number: WCC5D6CTHETN;
Model: WD4003FZEX-00Z4SA0;
Date: 14 FEB 2015;
DCM: HANNNVJMAB;
Product of: Thailand;
PCB Sticker: 771822-H02 AE;
PCB Revision: 2060-771822-002 REV A;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 10FC/4348;
1   : 1   : 1108/4360;
2   : 2   : 1090/4240;
3   : 3   : 1114/4372;
4   : 4   : 1091/4241;
5   : 5   : 1102/4354;
6   : 6   : 1092/4242;
7   : 7   : 10D5/4309;
8   : 8   : 10AA/4266;
9   : 9   : 10FD/4349;
;
;

;

ROM F/W: 00O1009E;
Heads map: 0,1,2,3,4,5,6,7,8,9;
Preamp vendor: 0x0001;
Preamp revision: 0x0003;

;

WD4003FZEX-00Z4SA0, DCM HARCHVJMA, Western Digital 4TB SATA 3.5 Hard Drive

HDD #1 Specs:;
Serial Number: WMC1F1168999;
Model: WD4003FZEX-00Z4SA0;
Date: 20 DEC 2013;
DCM: HARCHVJMA;
Product of: Malaysia;
PCB Sticker: 771822-H02 AC;
PCB Revision: 2060-771822-002 REV A;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 10E8/4328;
1   : 1   : 10D2/4306;
2   : 2   : 1108/4360;
3   : 3   : 10FA/4346;
4   : 4   : 10F0/4336;
5   : 5   : 10EE/4334;
6   : 6   : 10E4/4324;
7   : 7   : 1117/4375;
Micro Jog reading………………….. : List index out of bounds (8);

;

Preamp Vendor……………………… : 0001;
Preamp Rev………………………… : 0003;
;
;
;
;
;

;

WD4001FYYG-05JJYW1, DCM HARNNVJAA, Western Digital 4TB SAS 3.5 Hard Drive

HDD with Serial Number: WMC1F0DCT5UH;
Model: WD4001FYYG-05JJYW1;
Date: 20 JAN 2015;
DCM: HARNNVJAA;
Product of: Malaysia;
PCB Sticker: 771825-E03 AC;
PCB Revision: 2060-771825-003 REV A;
;

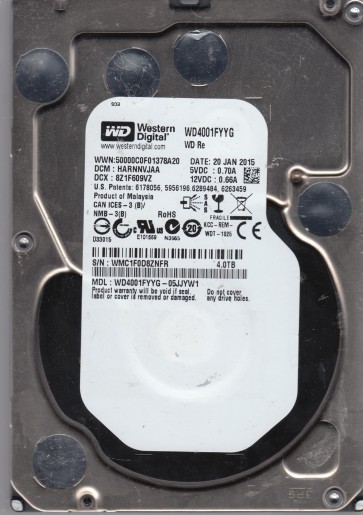

HDD with Serial Number: WMC1F0D8ZNFR;
Model: WD4001FYYG-05JJYW1;
Date: 20 JAN 2015;
DCM: HARNNVJAA;
Product of: Malaysia;
PCB Sticker: 771825-E03 AC;
PCB Revision: 2060-771825-003 REV A;
;

;

WD4003FZEX-00Z4SA0, DCM HARCNVJMBB, Western Digital 4TB SATA 3.5 Hard Drive

HDD with Serial Number: WCC130938424;
Model: WD4003FZEX-00Z4SA0;
Date: 24 OCT 2013;
DCM: HARCNVJMBB;
Product of: Thailand;
PCB Sticker: 771822-D02 AF;
PCB Revision: 2060-771822-002 REV A;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 0x10B7;
1   : 1   : 0x1090;
2   : 2   : 0x10CA;
3   : 3   : 0x1068;
4   : 4   : 0x108A;
5   : 5   : 0x1072;
6   : 6   : 0x10B6;
7   : 7   : 0x1094;
8   : 8   : 0x10A7;
8   : 9   : 0x10AC;
;

;

ROM F/W:0001003V;
Heads map: 0,1,2,3,4,6,7,8,9;
Preamp vendor: 0x0001;
Preamp revision: 0x0003;

;
