Category: HDD

HDD with Serial Number: WMC1F0D8XKD1;
Model: WD4001FYYG-05JJYW1;
Date: 30 JAN 2015;
DCM: HANNNVJAA;
Product of: Malaysia;
PCB Sticker: 771825-E03 AC;
PCB Revision: 2060-771825-003 REV A;
;

;

HDD with Serial Number: WCC130147356;
Model: WD4001FAEX-00MJRA0;
Date: 21 NOV 2012;
DCM: HARCNVJAAB;
Product of: Thailand;
PCB Sticker: 771822-D02 04P;
PCB Revision: 2060-771822-002 REV P1;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 1110/4368;
1 : 1 : 1160/4448;
2 : 2 : 10DE/4318;
3 : 3 : 1158/4440;
4 : 4 : 10E9/4329;
5 : 5 : 10E0/4320;
6 : 6 : 10BC/4284;
7 : 7 : 1106/4358;
8 : 8 : 108D/4237;
9 : 9 : 114E/4430;

;

ROM F/W version:00Y7004E;
Preamp vendor:0x0001;
Preamp revision:0x0003;

;

HDD with Serial Number: WCC130456013;
Model: WD4001FAEX-00MJRA0;
Date: 30 MAR 2013;
DCM: HARCNVJABB;
Product of: Thailand;
PCB Sticker: 771822-D02 04P;
PCB Revision: 2060-771822-002 REV P1;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 1064/4196;
1 : 1 : 111A/4378;
2 : 2 : 1078/4216;
3 : 3 : 10CD/4301;
4 : 4 : 109A/4250;
5 : 5 : 11CD/4557;
6 : 6 : 107C/4220;
7 : 7 : 1106/4358;
8 : 8 : 1098/4248;
9 : 9 : 1234/4660;
ROM F/W version……………………. : 00070083;
Heads map…………………………. : 0,1,2,3,4,5,6,7,8,9;
Preamp vendor……………………. : 0x0001;
Preamp revision………………….. : 0x0003;

;

HDD with Serial Number: WCC130229144;
Model: WD4001FAEX-00MJRA0;
Date: 15 DEC 2012;
DCM: HARCNVJMAB;
Product of: Thailand;
PCB Sticker: 771822-D02 04P;
PCB Revision: 2060-771822-002 REV P1;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 1099/4249;
1 : 1 : 1093/4243;
2 : 2 : 1128/4392;
3 : 3 : 1051/4177;
4 : 4 : 114B/4427;
5 : 5 : 1052/4178;
6 : 6 : 1071/4209;
7 : 7 : 1028/4136;
8 : 8 : 1091/4241;
9 : 9 : 1038/4152;
ROM F/W version……………………. : 0007005K;
Heads map…………………………. : 0,1,2,3,4,5,6,7,8,9;
Preamp vendor……………………. : 0x0001;
Preamp revision………………….. : 0x0003;

;

HDD with Serial Number: WCC130225804;
Model: WD4001FAEX-00MJRA0;
Date: 16 DEC 2012;
DCM: HARCNVJMBB;
Product of: Thailand;
PCB Sticker: 771822-D02 04P;
PCB Revision: 2060-771822-002 REV P1;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 1086/4230;
1 : 1 : 1161/4449;
2 : 2 : 10F4/4340;
3 : 3 : 1121/4385;
4 : 4 : 10D1/4305;
5 : 5 : 1155/4437;
6 : 6 : 10FA/4346;
7 : 7 : 1173/4467;
8 : 8 : 10AB/4267;
9 : 9 : 110A/4362;
ROM F/W version……………………. : 0007005K;
Heads map…………………………. : 0,1,2,3,4,5,6,7,8,9;
Preamp vendor…………………….. : 0x0001;
Preamp revision…………………… : 0x0003;

;

HDD with Serial Number: WCC131136381;
Model: WD4001FAEX-00MJRA0;
Date: 27 AUG 2013;
DCM: HARNHVJABB;
Product of: Thailand;
PCB Sticker: 771822-D02 AF;
PCB Revision: 2060-771822-002 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 10C2/4290;
1 : 1 : 114C/4428;
2 : 2 : 10CA/4298;
3 : 3 : 10E2/4322;
4 : 4 : 1136/4406;
5 : 5 : 10CD/4301;
6 : 6 : 10F9/4345;
7 : 7 : 10D2/4306;
8 : 8 : 114E/4430;
9 : 9 : 10F0/4336;
ROM F/W version……………………. : 00070083;
Heads map…………………………. : 0,1,2,3,4,5,6,7,8,9;
Preamp vendor…………………….. : 0x0001;
Preamp revision…………………… : 0x0003;

;

HDD with Serial Number: WCC130904174;
Model: WD4001FAEX-00MJRA0;
Date: 04 SEP 2013;
DCM: HBNCHVJABB;
Product of: Thailand;
PCB Sticker: 771822-D02 AF;
PCB Revision: 2060-771822-002 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 1140/4416;
1 : 1 : 111A/4378;
2 : 2 : 1130/4400;
3 : 3 : 10FA/4346;
4 : 4 : 10F7/4343;
5 : 5 : 10F4/4340;
6 : 6 : 10E6/4326;
7 : 7 : 10FA/4346;
8 : 8 : 10E7/4327;
9 : 9 : 10E6/4326;
ROM F/W version……………………. : 000700FJ;
Heads map…………………………. : 0,1,2,3,4,5,6,7,8,9;
Preamp vendor……………………. : 0x0001;
Preamp revision………………….. : 0x0003;

;

HDD with Serial Number: WCC130164119;
Model: WD4001FAEX-00MJRA0;
Date: 21 NOV 2012;
DCM: HBRCHVJMAB;
Product of: Thailand;
PCB Sticker: 771822-D02 04PD4;
PCB Revision: 2060-771822-002 REV P1;
;

;

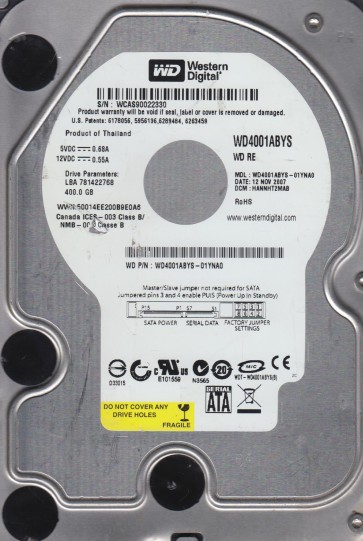

HDD #1 Specs:;
SN: WCAS90022330;
Model: WD4001ABYS-01YNA0;
Date: 12 NOV 2007;
DCM: HANNHT2MAB ;
Product of: Thailand;
PCB Sticker: 2061-701477-900 AD;
PCB Revision: 2060-701477-002 REV A;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 2   : A56/2646;
1   : 3   : ABA/2746;
2   : 5   : AC2/2754;
3   : 6   : A60/2656;
4   : 7   : AC4/2756;
ROM F/W version……………………. : 005C002A;
Preamp vendor……………………… : 0x0000;
Preamp revision……………………. : 0x0002;
;
;
;
;

;

HDD with Serial Number: WMAMY1095377;
Model: WD4000YR-01PLB0;
Date: 13 AUG 2005;
DCM: HBACAJAH;
Product of: Malaysia;
PCB Sticker: 2061-701310-C00 AB;
PCB Revision: 2060-701310-004 REV A;
ROM version……………………….. : 01.1BA;
Heads configuration………………… : by map;
Heads number………………………. : 8;
The number of heads in use………….. : 8;
Disabled heads…………………….. : No;

;
