Category: HDD

HDD #1 Specs:;
Serial Number: WMAMY1468064;
Model: WD4000YR-01PLB0;
Date: 18 MAR 2006;
DCM: HCACAJAH;
Product of: Malaysia;
PCB Sticker: 2061-701310-C00 AG;
PCB Revision: 2060-701310-004 REV A;

;

View ROM information;
Heads configuration………………… : by map;
Heads number………………………. : 8;
The number of heads in use………….. : 8;
Disabled heads…………………….. : No;
;
;
;

;

HDD with Serial Number: WMAMY1407819;
Model: WD4000YR-01PLB0;
Date: 16 FEB 2006;
DCM: HCACAJCA;
Product of: Malaysia;
PCB Sticker: 2061-701310-C00 AD;
PCB Revision: 2060-701310-004 REV A;

;

ROM version……………………….. : 01.24A;
Head map………………………….. : 0,1,2,3,4,5,6,7;

;

HDD with Serial Number: WMAMY1821396;
Model: WD4000YR-01PLB0;
Date: 09 MAY 2007;
DCM: HCHCAJAA;
Product of: Malaysia;
PCB Sticker: 2061-701310-C00 ABD2;
PCB Revision: 2060-701310-004 REV A;
;

;

HDD with Serial Number: WMAMY1188181;
Model: WD4000YR-01PLB0;
Date: 28 SEP 2005;
DCM: HCHCAJAH;
Product of: Malaysia;
PCB Sticker: 2061-701310-C00 AB;
PCB Revision: 2060-701310-004 REV A;
Heads configuration………………… : by map;
Heads number………………………. : 8;
The number of heads in use………….. : 8;
Disabled heads…………………….. : No;

HDD with Serial Number: WMAMY1495549;
Model: WD4000YR-01PLB0;
Date: 26 FEB 2006;
DCM: HCHCAJAH;
Product of: Malaysia;
PCB Sticker: 2061-701310-C00 AD;
PCB Revision: 2060-701310-004 REV A;
;

HDD with Serial Number: WMAMY1499143;
Model: WD4000YR-01PLB0;
Date: 21 FEB 2006;
DCM: HCHCAJAH;
Product of: Malaysia;
PCB Sticker: 2061-701310-C00 AD;
PCB Revision: 2060-701310-004 REV A;
;

;

HDD with Serial Number: WCANU2141322;
Model: WD4000YS-01MPB1;
Date: 29 MAR 2007;
DCM: HCACAJAAB;
Product of: Thailand;
PCB Sticker: 2061-701383-E00 AJ;
PCB Revision: 2060-701383-001 REV A;
;

HDD with Serial Number: WCANU2112724;
Model: WD4000YS-01MPB1;
Date: 31 MAR 2007;
DCM: HCACAJAAB;
Product of: Thailand;
PCB Sticker: 2061-701383-E00 AK;
PCB Revision: 2060-701383-001 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 1 : 7C2/1986;
1 : 2 : 6FE/1790;
2 : 3 : 7E8/2024;
3 : 4 : 6F0/1776;
4 : 5 : 78C/1932;
5 : 6 : 712/1810;
6 : 7 : 818/2072;

;

ROM F/W version:072CE;
Preamp vendor:0x0001;
Preamp revision:0x0002;

;

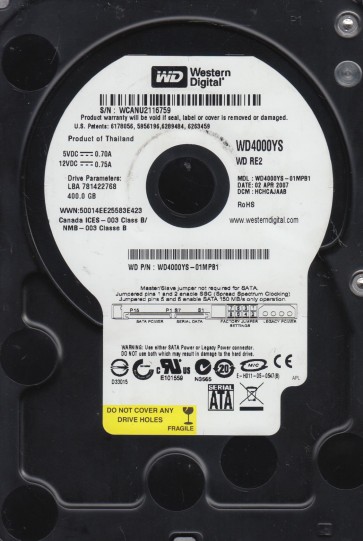

HDD #1 Specs:;
SN: WCANU2116759;
Model: WD4000YS-01MPB1;
Date: 02 APR 2007;
DCM: HCHCAJAAB ;
Product of: Thailand;
PCB Sticker: 2061-701383-E00 AJ;
PCB Revision: 2060-701383-001 REV A;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 7A4/1956;
1   : 1   : 796/1942;
2   : 2   : 7C6/1990;
3   : 3   : 7F8/2040;
4   : 4   : 7CE/1998;
5   : 5   : 7F8/2040;
6   : 6   : 77C/1916;
7   : 7   : 7D0/2000;
ROM F/W version……………………. : 072CE;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0002;
;
;
;
;

;

HDD #1 Specs:;
SN: WCAS85249944;
Model: WD4001ABYS-01YNA0;
Date: 06 FEB 2008;
DCM: DANNHT2CAB ;
Product of: Thailand;
PCB Sticker: 2061-701477-900 AD;
PCB Revision: 2060-701477-002 REV A;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 2   : A68/2664;
1   : 3   : AA6/2726;
2   : 5   : AA2/2722;
3   : 6   : A6C/2668;
4   : 7   : AAA/2730;
ROM F/W version……………………. : 005C002C;
Preamp vendor……………………… : 0x0000;
Preamp revision……………………. : 0x0002;
;
;
;
;

;

HDD with Serial Number: WCAS85510850;
Model: WD4001ABYS-01YNA0;
Date: 21 FEB 2008;
DCM: DHNNHT2MHB;
Product of: Thailand;
PCB Sticker: 2061-701477-900 AE;
PCB Revision: 2060-701477-002 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 2 : A90/2704;
1 : 3 : A0C/2572;
2 : 5 : A66/2662;
3 : 6 : A78/2680;
4 : 7 : A02/2562;
ROM F/W version……………………. : 005C002C;
Heads map…………………………. : 2,3,5,6,7;
Preamp vendor……………………… : 0x0000;
Preamp revision……………………. : 0x0002;

;

HDD with Serial Number: WMC130230601;
Model: WD4000FYYZ-01UL1B0;
Date: 08 JUN 2013;
DCM: EARCHVJMA;
Product of: Malaysia;
PCB Sticker: 771822-D02 AF;
PCB Revision: 2060-771822-002 REV A;

;

Micro Jogs —————————— LH : PH : Micro Jog (Hex/Dec) —————————— 0 : 0 : 10A5/4261 1 : 1 : 1155/4437 2 : 2 : 1094/4244 3 : 3 : 1172/4466 4 : 4 : 109A/4250 5 : 5 : 1180/4480 6 : 6 : 10AB/4267 7 : 7 : 1139/4409 8 : 8 : 1094/4244 9 : 9 : 1165/4453;

;

HDD with Serial Number: WMC130068145;
Model: WD4000FYYZ-01UL1B0;
Date: 09 SEP 2013;
DCM: EARCHVJMA;
Product of: Malaysia;
PCB Sticker: 771822-D02 04P;
PCB Revision: 2060-771822-002 REV P1;
;

;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 1181/4481;
1 : 1 : 111C/4380;
2 : 2 : 1144/4420;
3 : 3 : 1104/4356;
4 : 4 : 115A/4442;
5 : 5 : 1118/4376;
6 : 6 : 114D/4429;
7 : 7 : 1140/4416;
8 : 8 : 114A/4426;
9 : 9 : 1163/4451;

;

ROM F/W version: 00A70083;
Heads map: 0,1,2,3,4,5,6,7,8,9;
Preamp vendor: 0x0001;
Preamp revision: 0x0003;

;

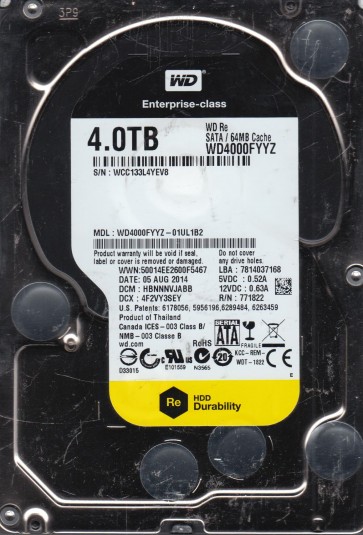

HDD with Serial Number: WCC133L4YEV8;
Model: WD4000FYYZ-01UL1B2;
Date: 05 AUG 2014;
DCM: HBNNNVJABB;
Product of: Thailand;
PCB Sticker: 771822-H02 AD;
PCB Revision: 2060-771822-002 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 10B3/4275;
1 : 1 : 10E0/4320;
2 : 2 : 10BC/4284;
3 : 3 : 1137/4407;
4 : 4 : 10C9/4297;
5 : 5 : 1108/4360;
6 : 6 : 109C/4252;
7 : 7 : 10BE/4286;
8 : 8 : 10BE/4286;
9 : 9 : 10F2/4338;
ROM F/W version……………………. : 000700PR;
Heads map…………………………. : 0,1,2,3,4,5,6,7,8,9;
Preamp vendor……………………. : 0x0001;
Preamp revision…………………… : 0x0003;

;
