Category: HDD

HDD with Serial Number: WMAMY1663629;
Model: WD4000YR-01PLB0;
Date: 02 MAY 2006;
DCM: HBACA2CA;
Product of: Malaysia;
PCB Sticker: 2061-701310-C00 AG;
PCB Revision: 2060-701310-004 REV A;
;

ROM version……………………….. : 01.29A;
Head map………………………….. : 0,1,2,3,4,5,6,7;
;
;

;

HDD with Serial Number: WMC130102766;
Model: WD4000FYYZ-01UL1B0;
Date: 11 SEP 2012;
DCM: EBNCHVJABB;
Product of: Thailand;
PCB Sticker: 771822-D02 02PD3;
PCB Revision: 2060-771822-002 REV P1;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 1148/4424;
1 : 1 : 11CE/4558;
2 : 2 : 1112/4370;
3 : 3 : 115A/4442;
4 : 4 : 10F0/4336;
5 : 5 : 1117/4375;
6 : 6 : 10F7/4343;
7 : 7 : 10E4/4324;
8 : 8 : 110B/4363;
9 : 9 : 10F2/4338;
ROM F/W version……………………. : 0006002A;
Heads map…………………………. : 0,1,2,3,4,5,6,7,8,9;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0003;

;

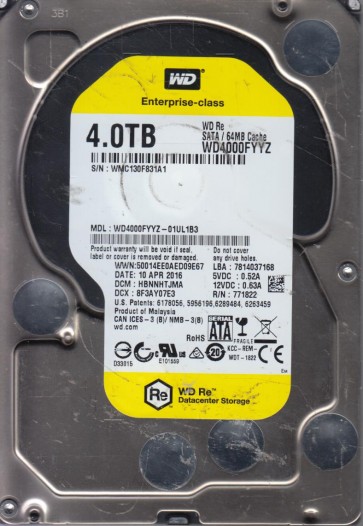

HDD with Serial Number: WMC130F831A1;
Model: WD4000FYYZ-01UL1B3;
Date: 10 APR 2016;
DCM: HBNNHTJMA;
Product of: Malaysia;
PCB Sticker: 771822-206 AA;
PCB Revision: 2060-771822-006 REV A;
;

;

HDD with Serial Number: WCC130481051;
Model: WD4000FYYZ-01UL1B0;
Date: 28 APR 2013;
DCM: EBNCNVJABB;
Product of: Thailand;
PCB Sticker: 771822-D02 04P;
PCB Revision: 2060-771822-002 REV P1;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 1159/4441;
1 : 1 : 10D6/4310;
2 : 2 : 10A2/4258;
3 : 3 : 1102/4354;
4 : 4 : 10C4/4292;
5 : 5 : 10C8/4296;
6 : 6 : 110A/4362;
7 : 7 : 1120/4384;
8 : 8 : 10FC/4348;
9 : 9 : 10C2/4290;
ROM F/W version……………………. : 000700F3;
Heads map…………………………. : 0,1,2,3,4,5,6,7,8,9;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0003;

;

HDD with Serial Number: WMAMY1532735;
Model: WD4000KD-00NAB0;
Date: 22 FEB 2006;
DCM: HBACAJAA;
Product of: Malaysia;
PCB Sticker: 2061-701310-C00 AD;
PCB Revision: 2060-701310-004 REV A;
;

;

HDD #1 Specs:;
Serial Number: WCC130137874;
Model: WD4000FYYZ-01UL1B0;
Date: 14 DEC 2012;
DCM: HANCNVJMAB;
Product of: Thailand;
PCB Sticker: 771822-D02 04P;
PCB Revision: 2060-771822-002 REV P1;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 10DA/4314;
1   : 1   : 115C/4444;
2   : 2   : 10C1/4289;
3   : 3   : 1132/4402;
4   : 4   : 109F/4255;
5   : 5   : 1161/4449;
6   : 6   : 10A3/4259;
7   : 7   : 1178/4472;
8   : 8   : 106A/4202;
9   : 9   : 11B2/4530;
ROM F/W version……………………. : 00Y7004E;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0003;
;
;
;
;

;

HDD with Serial Number: WMAMY1561248;
Model: WD4000KD-00NAB0;
Date: 31 MAR 2006;
DCM: HBACAJAH;
Product of: Malaysia;
PCB Sticker: 2061-701310-C00 AG;
PCB Revision: 2060-701310-004 REV A;
;

;

HDD with Serial Number: WMC130215180;
Model: WD4000FYYZ-01UL1B0;
Date: 23 MAY 2013;
DCM: HARCHVJMA;
Product of: Malaysia;
PCB Sticker: 771822-H02 AA;
PCB Revision: 2060-771822-002 REV A;

;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 10CE/4302;
1 : 1 : 11A2/4514;
2 : 2 : 10D8/4312;
3 : 3 : 1198/4504;
4 : 4 : 10E0/4320;
5 : 5 : 1172/4466;
6 : 6 : 1167/4455;
7 : 7 : 115F/4447;
8 : 8 : 116D/4461;
9 : 9 : 1164/4452;
ROM F/W version……………………. : 000700FC;
Heads map…………………………. : 0,1,2,3,4,5,6,7,8,9;
Preamp vendor…………………… : 0x0001;
Preamp revision…………………. : 0x0003;

;

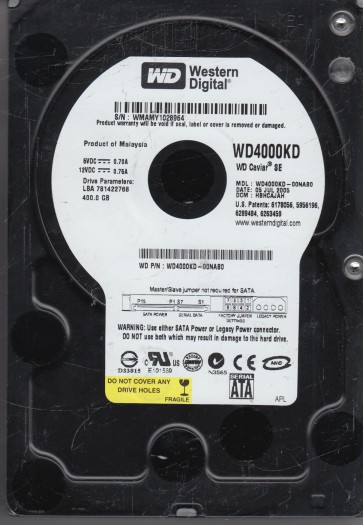

HDD with Serial Number: WMAMY1028964;
Model: WD4000KD-00NAB0;
Date: 05 JUL 2005;
DCM: HBHCAJAH;
Product of: Malaysia;
PCB Sticker: 2061-701310-D00 ACD3;
PCB Revision: 2060-701310-003 REV A;
ROM version……………………….. : 01.05A;
Head map………………………….. : 0,1,2,3,4,5,6,7;

;

HDD with Serial Number: WCC130135898;
Model: WD4000FYYZ-01UL1B0;
Date: 14 NOV 2012;
DCM: HARCHVJMAB;
Product of: Thailand;
PCB Sticker: 771822-D02 04P;
PCB Revision: 2060-771822-002 REV P1;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 10B8/4280;
1 : 1 : 10F6/4342;
2 : 2 : 108C/4236;
3 : 3 : 10F2/4338;
4 : 4 : 108A/4234;
5 : 5 : 10B6/4278;
6 : 6 : 1059/4185;
7 : 7 : 10C2/4290;
8 : 8 : 1076/4214;
9 : 9 : 108A/4234;
ROM F/W version……………………. : 00Y7004E;
Heads map…………………………. : 0,1,2,3,4,5,6,7,8,9;
Preamp vendor…………………… : 0x0001;
Preamp revision…………………. : 0x0003;

;
