Category: HDD

HDD with Serial Number: WMAMY1592384;
Model: WD4000KD-00NAB0;
Date: 09 APR 2006;
DCM: HBHCAJCA;
Product of: Malaysia;
PCB Sticker: 2061-701310-C00 AG;
PCB Revision: 2060-701310-004 REV A;

;

ROM version……………………….. : 01.24A;
Head map………………………….. : 0,1,2,3,4,5,6,7;

;

HDD with Serial Number: WMC130068165;
Model: WD4000FYYZ-01UL1B0;
Date: 09 SEP 2013;
DCM: HARCNVJAA;
Product of: Malaysia;
PCB Sticker: 771822-D02 04P;
PCB Revision: 2060-771822-002 REV P1;
;

;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 10D3/4307;
1 : 1 : 11D0/4560;
2 : 2 : 10AD/4269;
3 : 3 : 11A9/4521;
4 : 4 : 1090/4240;
5 : 5 : 11AE/4526;
6 : 6 : 10DB/4315;
7 : 7 : 119F/4511;
8 : 8 : 10E3/4323;
9 : 9 : 11A5/4517;

;

ROM F/W version: 000700F3;
Heads map: 0,1,2,3,4,5,6,7,8,9;
Preamp vendor: 0x0001;
Preamp revision: 0x0003;

;

HDD with Serial Number: WMAMY1602462;
Model: WD4000KD-00NAB0;
Date: 30 MAR 2006;
DCM: HBHCAJCH;
Product of: Malaysia;
PCB Sticker: 2061-701310-C00 AG;
PCB Revision: 2060-701310-003 REV A;

;

ROM version……………………….. : 01.24A;
Head map………………………….. : 0,1,2,3,4,5,6,7;
Heads configuration………………… : by map;
Heads number………………………. : 8;
The number of heads in use………….. : 8;
Disabled heads…………………….. : No;
;
;
;
;

;

HDD with Serial Number: WMC130019116;
Model: WD4000FYYZ-01UL1B0;
Date: 11 DEC 2012;
DCM: HARCNVJMAB;
Product of: Thailand;
PCB Sticker: 771822-D02 04P;
PCB Revision: 2060-771822-002 REV P1;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 1160/4448;
1 : 1 : 120C/4620;
2 : 2 : 119E/4510;
3 : 3 : 10F8/4344;
4 : 4 : 116A/4458;
5 : 5 : 11BA/4538;
6 : 6 : 113D/4413;
7 : 7 : 1105/4357;
8 : 8 : 1152/4434;
9 : 9 : 1139/4409;
ROM F/W version……………………. : 0007005D;
Heads map…………………………. : 0,1,2,3,4,5,6,7,8,9;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0003;

;

HDD with Serial Number: WMAMY1162232;
Model: WD4000KD-00NAB0;
Date: 15 SEP 2005;
DCM: HCACAJAA;
Product of: Malaysia;
PCB Sticker: 2061-701310-D00 AC;
PCB Revision: 2060-701310-003 REV A;
;

ROM version……………………….. : 01.1TA;
Head map………………………….. : 0,1,2,3,4,5,6,7;

HDD with Serial Number: WMAMY1096648;
Model: WD4000KD-00NAB0;
Date: 18 JUN 2009;
DCM: HCACAJAA;
Product of: Malaysia;
PCB Sticker: 2061-701310-D00 AC;
PCB Revision: 2060-701310-003 REV A;
;

ROM version……………………….. : 01.29A;
Head map………………………….. : 0,1,2,3,4,5,6,7;
;
;

;

HDD with Serial Number: WCC131609464;
Model: WD4000FYYZ-01UL1B1;
Date: 21 FEB 2014;
DCM: EANNHVJMAB;
Product of: Thailand;
PCB Sticker: 771822-H02 AC;
PCB Revision: 2060-771822-002 REV A;
;

;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 10CE/4302;
1 : 1 : 1139/4409;
2 : 2 : 10C9/4297;
3 : 3 : 1100/4352;
4 : 4 : 109A/4250;
5 : 5 : 10C1/4289;
6 : 6 : 10C7/4295;
7 : 7 : 10F6/4342;
8 : 8 : 108A/4234;
9 : 9 : 1092/4242;

;

ROM F/W version: 000700PC;
Heads map: 0,1,2,3,4,5,6,7,8,9;
Preamp vendor: 0x0001;
Preamp revision: 0x0003;

;

HDD with Serial Number: WMAMY1155946;
Model: WD4000KD-00NAB0;
Date: 07 SEP 2005;
DCM: HCACAJAH;
Product of: Malaysia;
PCB Sticker: 2061-701310-C00 AB;
PCB Revision: 2060-701310-004 REV A;
;

ROM version……………………….. : 01.1JA;
Head map………………………….. : 0,1,2,3,4,5,6,7;

;

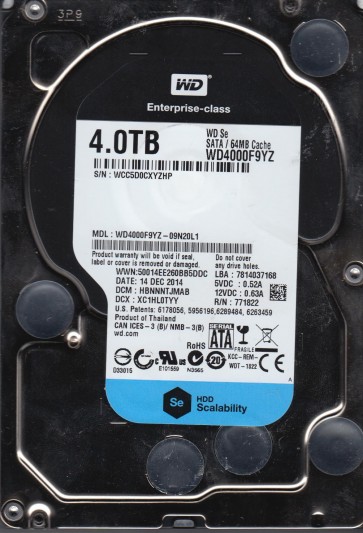

HDD with Serial Number: WCC5D0CXYZHP;
Model: WD4000F9YZ-09N20L1;
Date: 14 DEC 2014;
DCM: HBNNNTJMAB;
Product of: Thailand;
PCB Sticker: 771822-H02 AD;
PCB Revision: 2060-771822-002 REV A;

;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 108A/4234;
1 : 1 : 10AD/4269;
2 : 2 : 1050/4176;
3 : 3 : 109A/4250;
4 : 4 : 104C/4172;
5 : 5 : 10A1/4257;
6 : 6 : 104E/4174;
7 : 7 : 107F/4223;
8 : 8 : 101F/4127;
9 : 9 : 1038/4152;

;

ROM F/W version……………………. : 00O1009E;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0003;

;

HDD with Serial Number: WCC130990181;
Model: WD4000FYYZ-01UL1B1;
Date: 14 AUG 2013;
DCM: HANNHVJAAB;
Product of: Thailand;
PCB Sticker: 771822-H02 AA;
PCB Revision: 2060-771822-002 REV A;
;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 10E2/4322;
1   : 1   : 10C8/4296;
2   : 2   : 10C7/4295;
3   : 3   : 10C6/4294;
4   : 4   : 10C0/4288;
5   : 5   : 10B4/4276;
6   : 6   : 10AB/4267;
7   : 7   : 10CD/4301;
8   : 8   : 1097/4247;
9   : 9   : 109F/4255;
ROM F/W version……………………. : 000700FJ;
Heads map…………………………. : 0,1,2,3,4,5,6,7,8,9;
Preamp vendor……………………. : 0x0001;
Preamp revision………………….. : 0x0003;

;

HDD with Serial Number: WMAMY1400333;
Model: WD4000KD-00NAB0;
Date: 22 FEB 2006;
DCM: HCACAJCH;
Product of: Malaysia;
PCB Sticker: 2061-701310-C00 AD;
PCB Revision: 2060-701310-004 REV A;
;

;
