Category: HDD

HDD with Serial Number: WCAPW3548675;
Model: WD4000AAKS-00TMA0;
Date: 16 JUL 2007;
DCM: DHNCHV2CHB;
Product of: Thailand;
PCB Sticker: 2061-701477-900 04P;
PCB Revision: 2060-701477-002 REV A;

;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 3 : 674/1652;
1 : 4 : 698/1688;
2 : 5 : 642/1602;
3 : 6 : 6A6/1702;
4 : 7 : 67C/1660;

;

ROM F/W version……………………. : 00210023;
Preamp vendor……………………… : 0x0000;
Preamp revision……………………. : 0x0001;

;

HDD with Serial Number: WMC130345243;
Model: WD4000F9YZ-09N20L0;
Date: 13 MAR 2014;
DCM: EARNNVJAB;
Product of: Malaysia;
PCB Sticker: 771822-H02 AC;
PCB Revision: 2060-771822-002 REV A;
;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 1105/4357;
1   : 1   : 10EB/4331;
2   : 2   : 10BC/4284;
3   : 3   : 10FF/4351;
4   : 4   : 109E/4254;
5   : 5   : 10DA/4314;
6   : 6   : 10A6/4262;
7   : 7   : 10DE/4318;
8   : 8   : 10E7/4327;
9   : 9   : 108A/4234;
ROM F/W version……………………. : 00010070;
Heads map…………………………. : 0,1,2,3,4,5,6,7,8,9;
Preamp vendor……………………. : 0x0001;
Preamp revision………………….. : 0x0003;
;
;
;

;

HDD with Serial Number: WCC13NLE40AU;
Model: WD4000F9YZ-09N20L1;
Date: 20 SEP 2014;
DCM: HANNHTJMAB;
Product of: Thailand;
PCB Sticker: 771822-H02 AD;
PCB Revision: 2060-771822-002 REV A;
;

;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 1126/4390;
1 : 1 : 10E9/4329;
2 : 2 : 1125/4389;
3 : 3 : 10F1/4337;
4 : 4 : 1152/4434;
5 : 5 : 10D4/4308;
6 : 6 : 116C/4460;
7 : 7 : 10B5/4277;
8 : 8 : 1194/4500;
9 : 9 : 10F7/4343;

;

ROM F/W version: 00O1009E;
Heads map: 0,1,2,3,4,5,6,7,8,9;
Preamp vendor: 0x0001;
Preamp revision: 0x0003;

;

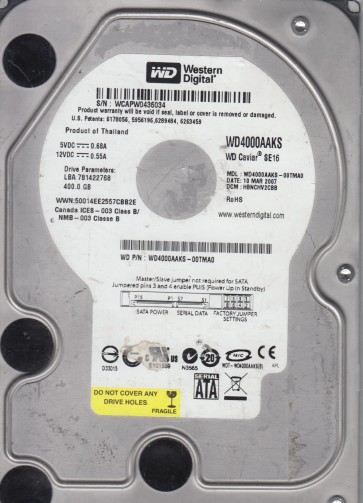

HDD with Serial Number: WCAPW0436034;
Model: WD4000AAKS-00TMA0;
Date: 10 MAR 2007;
DCM: HBNCHV2CBB;
Product of: Thailand;
PCB Sticker: 2061-701477-800 AB;
PCB Revision: 2060-701477-001 REV A;
;

;

HDD with Serial Number: WCC131716687;
Model: WD4000F9YZ-09N20L0;
Date: 18 MAR 2014;
DCM: EBNNHVJMAB;
Product of: Thailand;
PCB Sticker: 771822-D02 AH;
PCB Revision: 2060-771822-002 REV A;
;

;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 1018/4120;
1 : 1 : 108E/4238;
2 : 2 : 1023/4131;
3 : 3 : 1110/4368;
4 : 4 : 1144/4420;
5 : 5 : 10EC/4332;
6 : 6 : 105A/4186;
7 : 7 : 10AE/4270;
8 : 8 : 1064/4196;
9 : 9 : 10E1/4321;

;

ROM F/W version: 00010088;
Heads map: 0,1,2,3,4,5,6,7,8,9;
Preamp vendor: 0x0001;
Preamp revision: 0x0003;

;

HDD with Serial Number: WMC5D0D6HUKF;
Model: WD4000F9YZ-09N20L1;
Date: 29 JUN 2015;
DCM: HANNNTJAAB;
Product of: Thailand;
PCB Sticker: 771822-H02 AE;
PCB Revision: 2060-771822-002 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 1196/4502;
1 : 1 : 10AA/4266;
2 : 2 : 1182/4482;
3 : 3 : 109A/4250;
4 : 4 : 1167/4455;
5 : 5 : 10A6/4262;
6 : 6 : 118A/4490;
7 : 7 : 1095/4245;
8 : 8 : 112A/4394;
9 : 9 : 1054/4180;
ROM F/W version……………………. : 000100C2;
Heads map…………………………. : 0,1,2,3,4,5,6,7,8,9;
Preamp vendor……………………. : 0x0001;
Preamp revision………………….. : 0x0003;

;

HDD with Serial Number: WCAPW1928606;
Model: WD4000AAKS-00TMA0;
Date: 14 MAY 2007;
DCM: HHRCHV2AAB;
Product of: Thailand;
PCB Sticker: 2061-701477-800 AC;
PCB Revision: 2060-701477-001 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 2 : 644/1604;
1 : 3 : 62A/1578;
2 : 4 : 644/1604;
3 : 5 : 638/1592;
4 : 6 : 680/1664;

;

ROM F/W version:0011008P;
Preamp vendor:0x0000;
Preamp revision:0x0001;

;



;

HDD with Serial Number: WMC1F0079265;
Model: WD4000F9YZ-09N20L0;
Date: 29 JUN 2013;
DCM: HANCNVJMB;
Product of: Malaysia;
PCB Sticker: 771822-D02 AF;
PCB Revision: 2060-771822-002 REV A;
;
;

;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 106E/4206;
1 : 1 : 11A8/4520;
2 : 2 : 10A4/4260;
3 : 3 : 11EE/4590;
4 : 4 : 10AC/4268;
5 : 5 : 118D/4493;
6 : 6 : 107B/4219;
7 : 7 : 11E7/4583;
8 : 8 : 1045/4165;
9 : 9 : 11F9/4601;

;

ROM F/W version: 00010028;
Heads map: 0,1,2,3,4,5,6,7,8,9;
Preamp vendor: 0x0001;
Preamp revision: 0x0003;

;

;

;

HDD with Serial Number: WCC5D2SU7T4X;
Model: WD4000F9YZ-09N20L1;
Date: 18 FEB 2015;
DCM: HANNNTJABB;
Product of: Thailand;
PCB Sticker: 771822-D02 AJ;
PCB Revision: 2060-771822-002 REV A;
;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 11C2/4546;
1   : 1   : 122E/4654;
2   : 2   : 11A8/4520;
3   : 3   : 11F2/4594;
4   : 4   : 122C/4652;
5   : 5   : 1202/4610;
6   : 6   : 123E/4670;
7   : 7   : 120F/4623;
8   : 8   : 11C4/4548;
9   : 9   : 11CB/4555;
ROM F/W version……………………. : 00O1009E;
Heads map…………………………. : 0,1,2,3,4,5,6,7,8,9;
Preamp vendor……………………. : 0x0001;
Preamp revision………………….. : 0x0003;
;
;
;

;

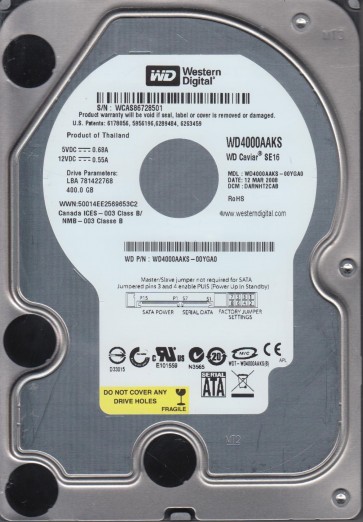

HDD with Serial Number: WCAS86728501;
Model: WD4000AAKS-00YGA0;
Date: 12 MAR 2008;
DCM: DARNHT2CAB;
Product of: Thailand;
PCB Sticker: 2061-701444-700 AD;
PCB Revision: 2060-701444-004 REV A;
;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 3   : A4A/2634;
1   : 4   : AD8/2776;
2   : 5   : A5C/2652;
3   : 6   : A28/2600;
4   : 7   : A2A/2602;
ROM F/W version……………………. : 005800A8;
Heads map…………………………. : 3,4,5,6,7;
Preamp vendor……………………. : 0x0000;
Preamp revision………………….. : 0x0002;
;
;
;

;
