Category: HDD

HDD #1 Specs:;
Serial Number: WMASY0897006;
Model: WD4000AAKS-00A7B0;
Date: 04 Apr 2008;
DCM: HANNHT2AA;
Product of: Malaysia;
PCB Sticker: 2061-701537-E00 02P;
PCB Revision: 2060-701537-003 REV A;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 1   : 9D5/2517;
1   : 2   : 9F7/2551;
2   : 3   : 9B8/2488;
ROM F/W version……………………. : 0002003K;
Preamp vendor……………………… : 0x0000;
Preamp revision……………………. : 0x0002;
;
;
;
;
;
;

;

HDD with Serial Number: WMASY0793767;
Model: WD4000AAKS-00A7B0;
Date: 19 MAR 2008;
DCM: HARNHV2CA;
Product of: Malaysia;
PCB Sticker: 2061-701537-E00 02P;
PCB Revision: 2060-701537-003 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 1 : 948/2376;
1 : 2 : 8A6/2214;
2 : 3 : 982/2434;

;

;
ROM F/W version: 0002003F;
Heads map: 1,2,3;
Preamp vendor: 0x0000;
Preamp revision: 0x0002;

;

HDD #1 Specs:;
SN: WCAPW4944793;
Model: WD4000AAJS-65TKA0;
Date: 12 SEP 2007;
DCM: DHNCHV2MHB ;
Product of: Thailand;
PCB Sticker: 2061-701477-100 AB;
PCB Revision: 2060-701477-002 REV A;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 3   : 6A0/1696;
1   : 4   : 6A2/1698;
2   : 5   : 6BE/1726;
3   : 6   : 69C/1692;
4   : 7   : 6E6/1766;
;
ROM F/W version……………………. : 0021007B;
Preamp vendor……………………… : 0x0000;
Preamp revision……………………. : 0x0001;
;

;

HDD #1 Specs:;
Serial Number: WMASY0790948;
Model: WD4000AAKS-00A7B0;
Date: 25 MAR 2008;
DCM: HARNNV2CB;
Product of: Malaysia;
PCB Sticker: 2061-701537-E00 02P;
PCB Revision: 2060-701537-003 REV A;

;

;

Specifications:;
SN WCAPW2179600;
Model WD4000AAJS-65TKA0;
Date 02 JUN 2007;
DCM HANCHV2CAB ;
Product of Thailand;
PCB Sticker: 2061-701477-000 AF;
PCB Revision: 2060-701477-001 REV A;

;

ROM F/W version……………………. : 00210023;
Preamp vendor……………………… : 0x0000;
Preamp revision……………………. : 0x0001;
Heads map…………………………. : 2,3,4,5,6,7;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 2   : 728/1832;
1   : 3   : 6EC/1772;
2   : 4   : 742/1858;
3   : 5   : 6D0/1744;
4   : 6   : 720/1824;
5   : 7   : 6DA/1754;
;
;

;

HDD with Serial Number: WMASY0772260;
Model: WD4000AAKS-00A7B0;
Date: 20 MAR 2008;
DCM: HBNNNV2CB;
Product of: Malaysia;
PCB Sticker: 2061-701537-E00 02P;
PCB Revision: 2060-701537-003 REV A;

;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 1 : 90A/2314;
1 : 2 : 93D/2365;
2 : 3 : 8FA/2298;

;

ROM F/W version……………………. : 0002003K;
Preamp vendor……………………… : 0x0000;
Preamp revision……………………. : 0x0002;

;

HDD with Serial Number: WCAPW5314813;
Model: WD4000AAJS-65TKA0;
Date: 29 SEP 2007;
DCM: HHNCHV2AHB;
Product of: Thailand;
PCB Sticker: 2061-701477-100 AC;
PCB Revision: 2060-701477-002 REV A;
Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 2   : 712/1810;
1   : 4   : 6C6/1734;
2   : 5   : 624/1572;
3   : 6   : 6D6/1750;
4   : 7   : 64E/1614;
ROM F/W version……………………. : 0021007B;
Heads map…………………………. : 2,4,5,6,7;
Preamp vendor……………………. : 0x0000;
Preamp revision………………….. : 0x0001;

;

HDD #1 Specs:;
SN: WCAS86604796;
Model: WD4000AAKS-00C8A0;
Date: 12 MAR 2008;
DCM: HBRNHT2CBB ;
Product of: Thailand;
PCB Sticker: 2061-701477-900 AE;
PCB Revision: 2060-701477-002 REV A;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 2   : A8E/2702;
1   : 3   : A7A/2682;
2   : 4   : A90/2704;
3   : 5   : A78/2680;
4   : 6   : AB0/2736;
ROM F/W version……………………. : 005C002C;
Preamp vendor……………………… : 0x0000;
Preamp revision……………………. : 0x0002;
;
;
;
;

;

HDD #1 Specs:;
SN: WMAH91499381;
Model: WD360GD-50GHA2;
Date: 23 JUL 2004;
DCM: HBCAJAB ;
Product of: Malaysia;
PCB Sticker: 2061-001172-500 CSD20;
PCB Revision: 2060-001172-003 REV A;
ROM version……………………….. : 38.00N;
Head map………………………….. : 0,1;

;

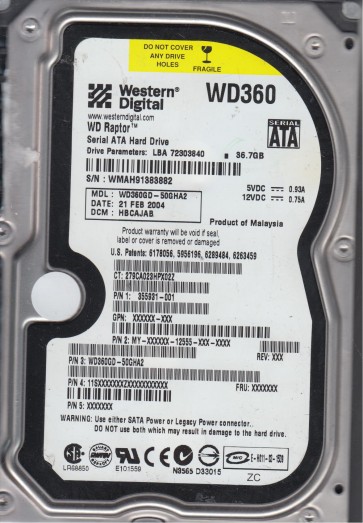

HDD with Serial Number: WMAH91383882;
Model: WD360GD-50GHA2;
Date: 21 FEB 2004;
DCM: HBCAJAB;
Product of: Malaysia;
PCB Sticker: 2061-001172-500 CND20;
PCB Revision: 2060-001172-003 REV A;
ROM version……………………….. : 38.00N;
Head map………………………….. : 0,1;

;

HDD with Serial Number: WCAS84131868;
Model: WD4000AAJS-00YFA0;
Date: 25 DEC 2007;
DCM: HBNNNT2AHB;
Product of: Thailand;
PCB Sticker: 2061-701477-100 AD;
PCB Revision: 2060-701477-002 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 2 : A24/2596;
1 : 3 : A26/2598;
2 : 4 : A2A/2602;
3 : 6 : A1A/2586;
4 : 7 : A16/2582;
ROM F/W version……………………. : 0058007R;
Heads map…………………………. : 2,3,4,6,7;
Preamp vendor…………………….. : 0x0000;
Preamp revision…………………… : 0x0002;

;
