Category: HDD

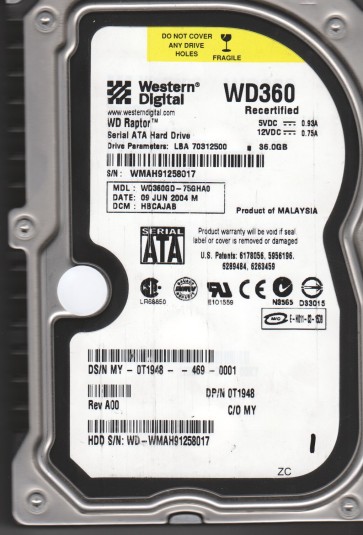

Specifications;
SN: WMAH91258017;
Model: WD360GD-75GHA0;
Date: 09 JUN 2004 M;
DCM: HBCAJAB ;
Product of: Malaysia;
PCB Sticker: 2061-001172-500 CH;
PCB Revision: 2060-001172-003 REV A;

;

;

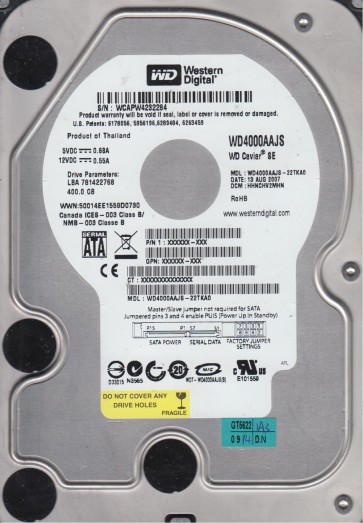

HDD with Serial Number: WCAPW4232284;
Model: WD4000AAJS-22TKA0;
Date: 13 AUG 2007;
DCM: HHNCHV2MHN;
Product of: Thailand;
PCB Sticker: 2061-701477-100 04P;
PCB Revision: 2060-701477-002 REV A;

;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 2 : 6A6/1702;
1 : 4 : 6A8/1704;
2 : 5 : 686/1670;
3 : 6 : 69A/1690;
4 : 7 : 680/1664;

;

ROM F/W version……………………. : 00210068;
Preamp vendor……………………… : 0x0000;
Preamp revision……………………. : 0x0001;

;

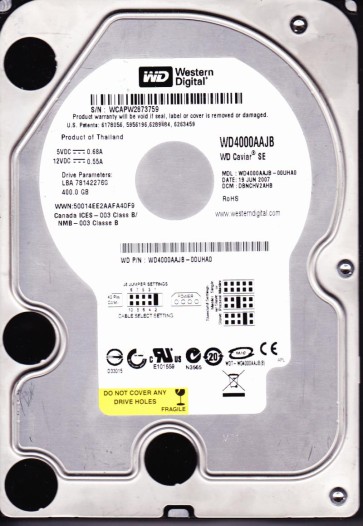

Specifications;
SN WCAPW2873759;
MDL WD4000AAJB-00UHA0;
DATE 19 JUN 2007;
DCM DBNCHV2AHB;
Product of Thailand;
PCB Sticker: 2061-701508-100 AA;
PCB Revision: 2060-701508-001 REV A;

;

HDD with Serial Number: WCAPY0009385;
Model: WD4000AAJS-22TKA0;
Date: 09 AUG 2007;
DCM: HHNCNV2AHN;
Product of: Thailand;
PCB Sticker: 2061-701477-100 05P;
PCB Revision: 2060-701477-002 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 2 : 640/1600;
1 : 3 : 62C/1580;
2 : 5 : 622/1570;
3 : 6 : 632/1586;
4 : 7 : 634/1588;
ROM F/W version……………………. : 00210068;
Heads map…………………………. : 2,3,5,6,7;
Preamp vendor……………………. : 0x0000;
Preamp revision………………….. : 0x0001;

;

HDD with Serial Number: WCAPW5727658;
Model: WD4000AAJS-00TKA0;
Date: 03 DEC 2007;
DCM: DARCHV2ABB;
Product of: Thailand;
PCB Sticker: 2061-701477-100 AD;
PCB Revision: 2060-701477-002 REV A;
;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 2   : 668/1640;
1   : 3   : 612/1554;
2   : 4   : 680/1664;
3   : 5   : 62A/1578;
4   : 6   : 60C/1548;
ROM F/W version……………………. : 0021007N;
Heads map…………………………. : 2,3,4,5,6;
Preamp vendor……………………. : 0x0000;
Preamp revision………………….. : 0x0001;

;

HDD with Serial Number: WCAS81085463;
Model: WD4000AAJS-22YFA0;
Date: 20 OCT 2007;
DCM: DANCNT2MHB;
Product of: Thailand;
PCB Sticker: 2061-701477-100 AC;
PCB Revision: 2060-701477-002 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 2 : A70/2672;
1 : 3 : A72/2674;
2 : 4 : A8E/2702;
3 : 5 : A70/2672;
4 : 7 : A6E/2670;
ROM F/W version……………………. : 00580076;
Heads map…………………………. : 2,3,4,5,7;
Preamp vendor……………………. : 0x0000;
Preamp revision………………….. : 0x0002;

;

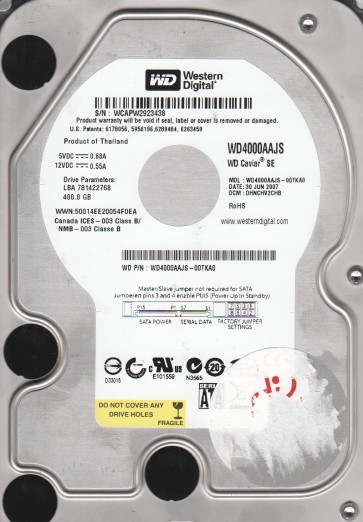

HDD #1 Specs:;
SN: WCAPW2923438;
Model: WD4000AAJS-00TKA0;
Date: 30 JUN 2007;
DCM: DHNCHV2CHB ;
Product of: Thailand;
PCB Sticker: 2061-701477-000 AC;
PCB Revision: 2060-701477-001 REV A;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 3   : 692/1682;
1   : 4   : 6B4/1716;
2   : 5   : 68A/1674;
3   : 6   : 6B2/1714;
4   : 7   : 690/1680;
ROM F/W version……………………. : 00210023;
Preamp vendor……………………… : 0x0000;
Preamp revision……………………. : 0x0001;
;
;
;
;
;
;

;

HDD with Serial Number: WCAS82536424;
Model: WD4000AAJS-22YFA0;
Date: 10 NOV 2007;
DCM: DANNHT2MAB;
Product of: Thailand;
PCB Sticker: 2061-701477-100 AC;
PCB Revision: 2060-701477-002 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 2 : A54/2644;
1 : 4 : AA8/2728;
2 : 5 : B1C/2844;
3 : 6 : AAE/2734;
4 : 7 : AF6/2806;
ROM F/W version……………………. : 00580076;
Heads map…………………………. : 2,4,5,6,7;
Preamp vendor……………………. : 0x0000;
Preamp revision………………….. : 0x0002;

;

HDD with Serial Number: WCAT1A513588;
Model: WD3202ABYS-01B7A0;
Date: 08 MAY 2009;
DCM: DHRNHT2AAN;
Product of: Thailand;
PCB Sticker: 2061-701537-U00 07P;
PCB Revision: 2060-701537-004 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 9EB/2539;
1 : 1 : A07/2567;
ROM F/W version……………………. : 0005008T;
Heads map…………………………. : 0,1;
Preamp vendor……………………… : 0x0000;
Preamp revision……………………. : 0x0005;

;

HDD with Serial Number: WCAPW2896877;
Model: WD4000AAJS-00TKA0;
Date: 27 JUN 2007;
DCM: DHNCNV2CHB;
Product of: Thailand;
PCB Sticker: 2061-701477-000 AF;
PCB Revision: 2060-701477-001 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 3 : 6CC/1740;
1 : 4 : 6B6/1718;
2 : 5 : 6C2/1730;
3 : 6 : 6E4/1764;
4 : 7 : 6E6/1766;
ROM F/W version……………………. : 00210023;
Heads map…………………………. : 3,4,5,6,7;
Preamp vendor……………………… : 0x0000;
Preamp revision……………………. : 0x0001;

HDD with Serial Number: WCAPW2466693;
Model: WD4000AAJS-00TKA0;
Date: 27 JUN 2007;
DCM: DHNCNV2CHB;
Product of: Thailand;
PCB Sticker: 2061-701477-000 AF;
PCB Revision: 2060-701477-001 REV A;
;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 2   : 72E/1838;
1   : 4   : 720/1824;
2   : 5   : 652/1618;
3   : 6   : 706/1798;
4   : 7   : 670/1648;
ROM F/W version……………………. : 00210023;
Heads map…………………………. : 2,4,5,6,7;
Preamp vendor……………………. : 0x0000;
Preamp revision………………….. : 0x0001;
;
;
;

;
