Category: HDD

HDD with Serial Number: WCATR4494743;
Model: WD7501AAES-75W7A0;
Date: 10 NOV 2010;
DCM: EBNNHTJCAB;
Product of: Thailand;
PCB Sticker: 2061-771640-303 ABD2;
PCB Revision: 2060-771640-003 REV P1;

;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : C10/3088;
1 : 1 : CB8/3256;
2 : 2 : BDF/3039;
3 : 3 : CAE/3246;

;

ROM F/W version……………………. : 0001003C;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0001;

;

HDD with Serial Number: WX71AC346926;
Model: WD7500LPCX-60HWST0;
Date: 28 JUL 2014;
DCM: HVVJBB0;
Product of: Malaysia;
PCB Sticker: 771927-903 08RD8;
PCB Revision: 2060-771927-003 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 00/0;
1 : 1 : 00/0;
2 : 2 : 00/0;
3 : 3 : 00/0;
;
ROM F/W version: 00070041;
Heads map: 0,1,2,3;
Preamp vendor: 0x0001;
Preamp revision: 0x0000;

;

HDD with Serial Number: WCATR2575400;
Model: WD7501AAES-75W7A0;
Date: 08 AUG 2010;
DCM: EBNNNTJAAB;
Product of: Thailand;
PCB Sticker: 2061-701640-D02 AB;
PCB Revision: 2060-701640-002 REV A;
;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : C1B/3099;
1   : 1   : D66/3430;
2   : 2   : BFB/3067;
3   : 3   : D05/3333;
ROM F/W version……………………. : 0001002G;
Heads map…………………………. : 0,1,2,3;
Preamp vendor……………………. : 0x0001;
Preamp revision………………….. : 0x0001;
;
;
;

;

HDD with Serial Number: WX61A83N3768;
Model: WD7500LPCX-60HWST0;
Date: 18 MAY 2014;
DCM: HVVJBVO;
Product of: Malaysia;
PCB Sticker: 771927-902 06P;
PCB Revision: 2060-771927-003 REV P1;
;

——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 00/0;
1   : 1   : 00/0;
2   : 2   : 00/0;
;
ROM F/W Version: 00070036;
Heads map: 0,1,2;
Preamp vendor: 0x0001;
Preamp revision: 0x0000

;

HDD #1 Specs:;
Serial Number: WCATR2669868;
Model: WD7501AAES-75W7A0;
Date: 09 AUG 2010;
DCM: EBRNHTJAAB;
Product of: Thailand;
PCB Sticker: 2061-701640-D02 ACD14;
PCB Revision: 2060-701640-002 REV A;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : C65/3173;
1   : 1   : D7A/3450;
2   : 2   : C0C/3084;
3   : 3   : D69/3433;
Preamp Vendor……………………… : 0001;
Preamp Rev………………………… : 0001;
;
;
;

;

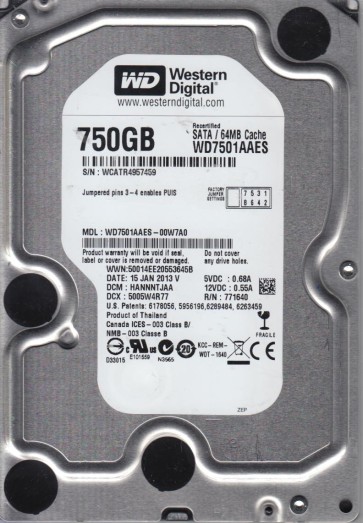

HDD with Serial Number: WCATR4957459;
Model: WD7501AAES-00W7A0;
Date: 15 JAN 2013;
DCM: HANNNTJAA;
Product of: Thailand;
PCB Sticker: 2061-771640-303 AB;
PCB Revision: 2060-771640-003 REV A;
;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : C0A/3082;
1   : 1   : C87/3207;
2   : 2   : C5E/3166;
3   : 3   : C87/3207

;

HDD with Serial Number: WCATR2019491;
Model: WD7501AAES-75W7A0;
Date: 18 JUN 2010;
DCM: HANNNTJCBB;
Product of: Thailand;
PCB Sticker: 2061-701640-D02 AB;
PCB Revision: 2060-701640-002 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : C48/3144;
1 : 1 : D5C/3420;
2 : 2 : C86/3206;
3 : 3 : D35/3381;
ROM F/W version……………………. : 0001002G;
Heads map…………………………. : 0,1,2,3;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0001;

;

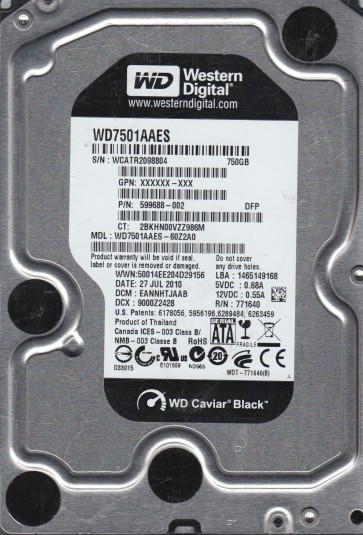

HDD with Serial Number: WCATR2098804;
Model: WD7501AAES-60Z2A0;
Date: 27 JUL 2010;
DCM: EANNHTJAAB;
Product of: Thailand;
PCB Sticker: 2061-771640-302 AA;
PCB Revision: 2060-771640-002 REV P2;

;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : CC5/3269;
1 : 1 : D06/3334;
2 : 2 : CAE/3246;
3 : 3 : CEA/3306;
ROM F/W version……………………. : 0001002G;
Heads map…………………………. : 0,1,2,3;
Preamp vendor……………………. : 0x0001;
Preamp revision………………….. : 0x0001;

;

HDD with Serial Number: WCATR2694533;
Model: WD7501AAES-60Z2A0;
Date: 12 AUG 2011;
DCM: EANNNTJAA;
Product of: Thailand;
PCB Sticker: 2061-771640-303 ABD2;
PCB Revision: 2060-771640-003 REV P1;
;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : C40/3136;
1   : 1   : CBF/3263;
2   : 2   : BF7/3063;
ROM F/W version……………………. : 0001003C;
Heads map…………………………. : 0,1,2;
Preamp vendor……………………. : 0x0001;
Preamp revision………………….. : 0x0001;

;

HDD with Serial Number: WCATR2502567;
Model: WD7501AAES-60Z2A0;
Date: 28 JUL 2010;
DCM: EARNHTJAAB;
Product of: Thailand;
PCB Sticker: 2061-771640-303 01P;
PCB Revision: 2060-771640-003 REV P1;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : C5A/3162;
1 : 1 : CC1/3265;
2 : 2 : C26/3110;
3 : 3 : CB1/3249;
ROM F/W version……………………. : 0001002G;
Heads map…………………………. : 0,1,2,3;
Preamp vendor……………………. : 0x0001;
Preamp revision………………….. : 0x0001;

;
