Category: HDD

HDD with Serial Number: WX61A26FJ9LF;
Model: WD3200LPLX-75ZNTT0;
Date: 10 APR 2016;
DCM: HHOTJHB;
Product of: Malaysia;
PCB Sticker: 800018-A01 AA;
PCB Revision: 2060-800018-001 REV P1;
;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 00/0;
1   : 1   : 00/0;
ROM F/W version……………………. : 00050052;
Heads map…………………………. : 0,1;
Preamp vendor……………………. : 0x0001;
Preamp revision………………….. : 0x0002;

HDD with Serial Number: WX91A36PND4F;
Model: WD3200LPLX-75ZNTT0;
Date: 09 JUN 2016;
DCM: HHOTJHB;
Product of: Malaysia;
PCB Sticker: 800018-A01 AA;
PCB Revision: 2060-800018-001 REV P1;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 00/0;
1 : 1 : 00/0;

;

ROM F/W version:00050052;
Preamp vendor:0x0001;
Preamp revision:0x0002;

;

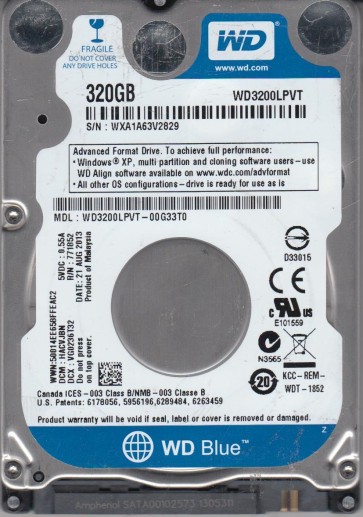

HDD with Serial Number: WXA1A63V2829;
Model: WD3200LPVT-00G33T0;
Date: 21 AUG 2013;
DCM: HACVJBN;
Product of: Malaysia;
PCB Sticker: 771852-201 AL;
PCB Revision: 2060-771852-001 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 1005/4101;
1 : 1 : FDE/4062;
ROM F/W version……………………. : 00020066;
Heads map…………………………. : 0,1;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0001;

;

HDD with Serial Number: WXG1A25CP3S4;
Model: WD3200LPLX-66ZNTT0;
Date: 14 AUG 2015;
DCM: HBOTJVB;
Product of: Malaysia;
PCB Sticker: 800018-601 02P;
PCB Revision: 2060-800018-001 REV P1;
;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 00/0;
1   : 1   : 00/0;
ROM F/W version……………………. : 0005003P;
Heads map…………………………. : 0,1;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0002;
;
;
;
;

;

HDD with Serial Number: WXB1A53H1387;
Model: WD3200LPVT-08G33T1;
Date: 10 JUL 2013;
DCM: HBOTJBN;
Product of: Malaysia;
PCB Sticker: 771852-204 AJ;
PCB Revision: 2060-771852-004 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : FE8/4072;
1 : 1 : FDF/4063;

;

ROM F/W: 00020066;
Heads map: 0,1;
Preamp vendor: 0x0001;
Preamp revision: 0x0001;

;

HDD with Serial Number: WXF1A45P3XN1;
Model: WD3200LPLX-66ZNTT0;
Date: 16 JUN 2015;
DCM: HHOTJAB;
Product of: Malaysia;
PCB Sticker: 800018-601 01PD2;
PCB Revision: 2060-800018-001 REV P1;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 00/0;
1 : 1 : 00/0;

;

ROM F/W version: 0005003E;
Heads map: 0,1;
Preamp vendor: 0x0001;
Preamp revision: 0x0002;

;

HDD #1 Specs:;
SN: WX81C32U8457;
Model: WD3200LPVT-22G33T0;
Date: 28 APR 2012;
DCM: HACVJAB ;
Product of: Malaysia;
PCB Sticker: 771852-201 05P;
PCB Revision: 2060-771852-001 REV P1;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 10C2/4290;
1   : 1   : 101F/4127;
ROM F/W version……………………. : 0002000V;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0001;
;
;
;
;

;

HDD with Serial Number: WXF1A45CZD5D;
Model: WD3200LPLX-66ZNTT0;
Date: 19 AUG 2015;
DCM: HHOTJBB;
Product of: Malaysia;
PCB Sticker: 800018-601 02P;
PCB Revision: 2060-800018-001 REV P1;
;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 00/0;
1   : 1   : 00/0;
ROM F/W version……………………. : 0005003P;
Heads map…………………………. : 0,1;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0002;
;
;
;
;

;

HDD with Serial Number: WX41C42E3865;
Model: WD3200LPVT-22G33T0;
Date: 07 MAY 2012;
DCM: HACVJHNB;
Product of: Thailand;
PCB Sticker: 771852-201 05P;
PCB Revision: 2060-771852-001 REV P1;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : FB1/4017;
1 : 1 : 1012/4114;

;

ROM F/W: 00020010;
Heads map: 0,1;
Preamp vendor: 0x0001;
Preamp revision: 0x0001;

;

HDD with Serial Number: WCAPD3550427;
Model: WD3200KS-75PFB0;
Date: 17 DEC 2006;
DCM: DHBHCAJAHN;
Product of: Thailand;
PCB Sticker: 2061-701393-800 AE;
PCB Revision: 2060-701393-002 REV B;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 6BC/1724;
1 : 1 : 6BE/1726;
2 : 2 : 698/1688;
3 : 3 : 6D0/1744;
4 : 4 : 692/1682;
5 : 5 : 688/1672;

;

ROM F/W version:400SM;
Preamp vendor:0x0001;
Preamp revision:0x0000;

;



;

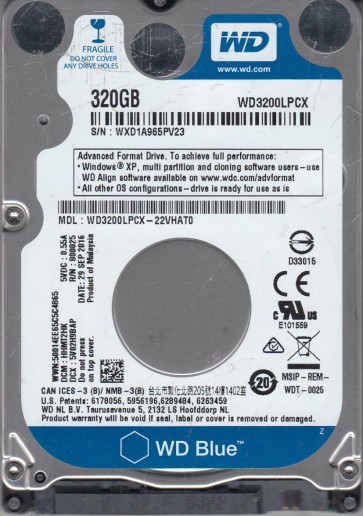

HDD with Serial Number: WXD1A965PV23;
Model: WD3200LPCX-22VHAT0;
Date: 29 SEP 2016;
DCM: HHMT2HK;
Product of: Malaysia;
PCB Sticker: 800025-601 AF;
PCB Revision: 2060-800025-001 REV P2;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 00/0;
1 : 1 : 00/0;
ROM F/W version……………………. : 0003003V;
Heads map…………………………. : 0,1;
Preamp vendor…………………….. : 0x0000;
Preamp revision…………………… : 0x0002;

;
