Category: HDD

HDD with Serial Number: WCAMR2042670;
Model: WD3200JD-22KLB0;
Date: 28 DEC 2005;
DCM: HSBHCA2CH;
Product of: Thailand;
PCB Sticker: 2061-701336-B00 AF;
PCB Revision: 2060-701336-003 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 5D2/1490;
1 : 1 : 65E/1630;
2 : 2 : 5E2/1506;
3 : 5 : 61A/1562;
4 : 6 : 618/1560;
5 : 7 : 628/1576;
ROM F/W version……………………. : 083AJ;
Heads map…………………………. : 0,1,2,5,6,7;
Preamp vendor……………………… : 0x0000;
Preamp revision……………………. : 0x0000;

;

HDD #1 Specs:;
SN: WCAMR4131525;
Model: WD3200JB-00KFA0;
Date: 07 DEC 2006;
DCM: HHBHCA2AHN ;
Product of: Thailand;
PCB Sticker: 2061-701314-A00 AP;
PCB Revision: 2060-701314-003 REV A;

;

;

HDD with Serial Number: WCAMR2494015;
Model: WD3200JB-00KFA0;
Date: 22 FEB 2006;
DCM: HSCACAJCA;
Product of: Thailand;
PCB Sticker: 2061-701314-A00 AG;
PCB Revision: 2060-701314-001 REV A;
;

;

HDD with Serial Number: WCAMR2511122;
Model: WD3200JD-22KLB0;
Date: 01 MAR 2006;
DCM: HSCACAJCA;
Product of: Thailand;
PCB Sticker: 2061-701336-B00 AF;
PCB Revision: 2060-701336-003 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 5FA/1530;
1 : 1 : 67E/1662;
2 : 2 : 62C/1580;
3 : 3 : 66E/1646;
4 : 4 : 600/1536;
5 : 5 : 638/1592;

;

;
ROM F/W version: 083EJ;
Heads map: 0,1,2,3,4,5;
Preamp vendor: 0x0001;
Preamp revision: 0x0000

;

Specifications;
SN: WCAMR2908105;
Model: WD3200JB-00KFA0;
Date: 17 JUN 2006;
DCM: HHBHCA2CA ;
Product of: Thailand;
PCB Sticker: 2061-701314-A00 AL;
PCB Revision: 2060-701314-002 REV A;

;

;

Specifications;

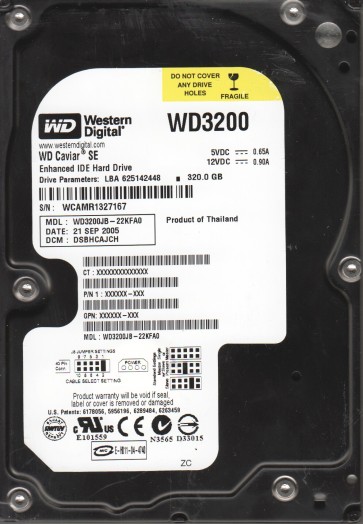

SN: WCAMR1327167;
Model: WD3200JB-22KFA0;
Date: 21 SEP 2005;
DCM: DSBHCAJCH ;
Product of: Thailand;
PCB Sticker: 2061-701314-A00 AD;
PCB Revision: 2060-701314-002 REV A;

;

;

HDD with Serial Number: WCAMR2511871;
Model: WD3200JD-22KLB0;
Date: 28 FEB 2006;
DCM: HSCHAJCA;
Product of: Thailand;
PCB Sticker: 2061-701336-B00  AF;
PCB Revision: 2060-701336-003 REV A;
;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 5DA/1498;
1   : 1   : 5F8/1528;
2   : 2   : 630/1584;
3   : 3   : 61C/1564;
4   : 4   : 63E/1598;
5   : 5   : 664/1636

;

HDD with Serial Number: WCAMR4278518;
Model: WD3200JB-00KFA0;
Date: 05 JAN 2007;
DCM: HHBHCA2CHN;
Product of: Thailand;
PCB Sticker: 2061-701314-A00 AP;
PCB Revision: 2060-701314-003 REV A;
;

;

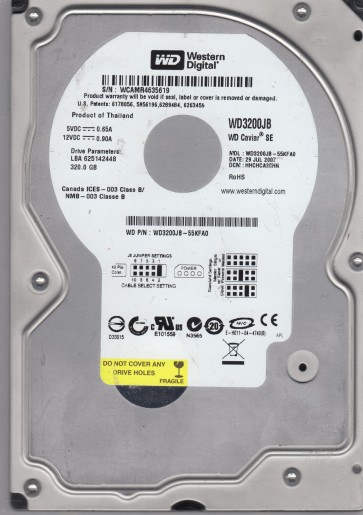

HDD with Serial Number: WCAMR4635619;
Model: WD3200JB-55KFA0;
Date: 29 JUL 2007;
DCM: HHCHCA2CHN;
Product of: Thailand;
PCB Sticker: 2061-701314-A00 AQ;
PCB Revision: 2060-701314-003 REV A;
;

;

HDD #1 Specs:;
SN: WCAMR2302719;
Model: WD3200JD-22KLB0;
Date: 08 FEB 2006;
DCM: HSCACAJCH ;
Product of: Thailand;
PCB Sticker: 2061-701336-B00 AF;
PCB Revision: 2060-701336-003 REV A;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 64C/1612;
1   : 1   : 5C4/1476;
2   : 2   : 5E6/1510;
3   : 3   : 5BA/1466;
4   : 4   : 63E/1598;
5   : 5   : 650/1616;
;

;

ROM F/W version……………………. : 083EJ;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0000;

;
