Category: HDD

HDD with Serial Number: WX71A61P9251;

;

Model: WD3200BPVT-00ZEST0;
Date: 01 DEC 2012;
DCM: HHMTJHB;
Product of: Malaysia;
PCB Sticker: 2061-771672-R04 04RD7;
PCB Revision: 2060-771672-004 REV A;

;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : B07/2823;
1 : 1 : AFB/2811;

;

ROM F/W version……………………. : 0015003H;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0000;

;

HDD with Serial Number: WXL1A81T6265;
Model: WD3200BPVT-00ZEST0;
Date: 13 JUL 2013;
DCM: HHMTJHK;
Product of: Thailand;
PCB Sticker: 2061-771672-R04 04R;
PCB Revision: 2060-771672-004 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : AD9/2777;
1 : 1 : B59/2905;
ROM F/W version……………………. : 0015003H;
Heads map…………………………. : 0,1;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0000;

;

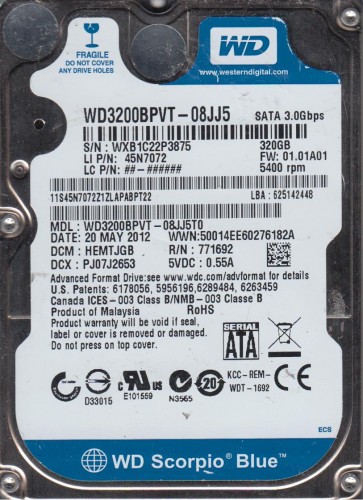

HDD with Serial Number: WXB1C22P3875;
Model: WD3200BPVT-08JJ5T0;
Date: 20 MAY 2012;
DCM: HEMTJGB;
Product of: Malaysia;
PCB Sticker: 771820-F00 AA;
PCB Revision: 2060-771820-000 REV A;

;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : B6E/2926;
1 : 1 : B04/2820;

;

ROM F/W version……………………. : 0065006A;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0000;

;

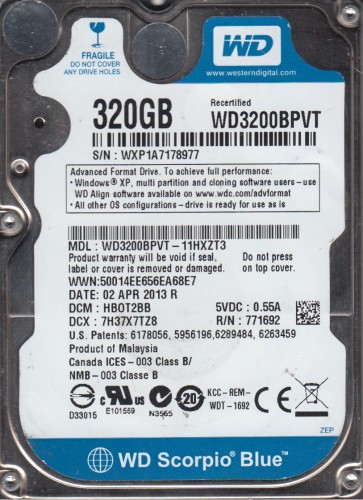

HDD with Serial Number: WXP1A7178977;
Model: WD3200BPVT-11HXZT3;
Date: 02 APR 2013;
DCM: HBOT2BB;
Product of: Malaysia;
PCB Sticker: 771820-200 03P;
PCB Revision: 2060-771820-000 REV P1;

;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 1 : B06/2822;
1 : 3 : B14/2836;

;

ROM F/W version……………………. : 0065001F;
Preamp vendor……………………… : 0x0000;
Preamp revision……………………. : 0x0009;

;

Specifications;

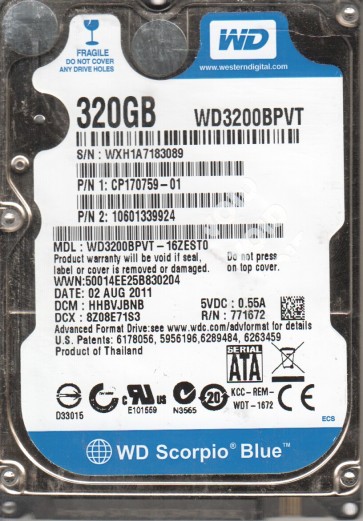

SN: WXH1A7183089;
Model: WD3200BPVT-16ZEST0;
Date: 02 AUG 2011;
DCM: HHBVJBNB ;
Product of: Thailand;
PCB Sticker: 2061-771672-E04 AED21;
PCB Revision: 2060-771672-004 REV A;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : B53/2899;
1   : 1   : B64/2916;
;

;

ROM F/W version……………………. : 00150039;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0000;

;

HDD with Serial Number: WX31A81N3069;
Model: WD3200BPVT-16ZEST0;
Date: 16 AUG 2011;
DCM: HHBVJHKB;
Product of: Thailand;
PCB Sticker: 2061-771672-E04 AED21;
PCB Revision: 2060-771672-004 REV A;
;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : B3E/2878;
1   : 1   : AD7/2775;
ROM F/W version……………………. : 0015003A;
Heads map…………………………. : 0,1;
Preamp vendor……………………. : 0x0001;
Preamp revision………………….. : 0x0000;

HDD with Serial Number: WXH1A71M4906;
Model: WD3200BPVT-16ZEST0;
Date: 01 AUG 2011;
DCM: HHBVJHKB;
Product of: Thailand;
PCB Sticker: 2061-771672-E04 AED21;
PCB Revision: 2060-771672-004 REV A;
;

ROM F/W  00150039;
Heads map   0,1;
Preamp Vendor: x001;
Preamp revision: x000;
Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : B65/2917;
1   : 1   : BE3/3043

;

HDD with Serial Number: WXM1E11LXXR7;
Model: WD3200BPVT-22JJ5T0;
Date: 25 SEP 2011;
DCM: DEMTJBN;
Product of: Malaysia;
PCB Sticker: 771820-800 01P;
PCB Revision: 2060-771820-000 REV P1;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : A98/2712;
1 : 1 : B2C/2860;

;

ROM F/W version: 00650043;
Heads map: 0,1;
Preamp vendor: 0x0001;
Preamp revision: 0x0000;

;

HDD with Serial Number: WXC1E33HYCU3;
Model: WD3200BPVT-00JJ5T0;
Date: 22 MAY 2013;
DCM: SHMTJGK;
Product of: Malaysia;
PCB Sticker: 771820-B00 AD;
PCB Revision: 2060-771820-000 REV A;
;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : B77/2935;
1   : 1   : ABE/2750;
ROM F/W version……………………. : 00650074;
Heads map…………………………. : 0,1;
Preamp vendor……………………. : 0x0001;
Preamp revision………………….. : 0x0003;

;

HDD with Serial Number: WXB1E92DXW64;
Model: WD3200BPVT-22JJ5T0;
Date: 31 JAN 2013;
DCM: DHMTJAB;
Product of: Malaysia;
PCB Sticker: 771820-B00 AA;
PCB Revision: 2060-771820-000 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : B88/2952;
1 : 1 : B57/2903;
ROM F/W version……………………. : 0065006P;
Heads map…………………………. : 0,1;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0000;

;

HDD with Serial Number: WXP1EA2DDS38;
Model: WD3200BPVT-00JJ5T0;
Date: 15 FEB 2013;
DCM: SHMTJHB;
Product of: Malaysia;
PCB Sticker: 771820-B00 AA;
PCB Revision: 2060-771820-000 REV A;
;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : B30/2864;
1   : 1   : B62/2914;
ROM F/W version……………………. : 0065006P;
Heads map…………………………. : 0,1;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0000;
;
;
;
;

HDD with Serial Number: WXU1EA1MVTFT;
Model: WD3200BPVT-00JJ5T0;
Date: 14 JUN 2012;
DCM: SHMTJHB;
Product of: Malaysia;
PCB Sticker: 771820-900 AF;
PCB Revision: 2060-771820-000 REV A;
;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : BB8/3000;
1   : 1   : AB5/2741;
ROM F/W version……………………. : 0065006E;
Heads map…………………………. : 0,1;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0000;

;
