Category: HDD

HDD with Serial Number: WXK1A30X4460;
Model: WD3200BMVV-11A1CS0;
Date: 31 MAY 2010;
DCM: HHNTJHN;
Product of: Malaysia;
PCB Sticker: 2061-701675-604 04P;
PCB Revision: 2060-701675-004 REV P1;
Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : A86/2694;
1   : 1   : A16/2582;
2   : 2   : A8E/2702;
3   : 3   : A52/2642;
ROM F/W version……………………. : 00140028;
Heads map…………………………. : 0,1,2,3;
Preamp vendor……………………. : 0x0001;
Preamp revision………………….. : 0x0003;
;
;
;
;

;

Specifications;
SN: WX20EB9DZ546;
Model: WD3200BMVV-11A1PS0;
Date: 08 JUL 2012;
DCM: DANT2BB ;
Product of: Thailand;
PCB Sticker: 2061-701650-000 08P;
PCB Revision: 2060-701650-000 REV P1;

;

;

HDD with Serial Number: WXF0A89H2783;
Model: WD3200BMVU-11A04S0;
Date: 07 SEP 2009;
DCM: HBNTJABB;
Product of: Thailand;
PCB Sticker: 2061-701615-600 AD;
PCB Revision: 2060-701615-003 REV A;

Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0001;
ROM F/W version……………………. : 0002000K;
Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 93F/2367;
1 : 1 : 94E/2382;
2 : 2 : 929/2345;
3 : 3 : 93F/2367;



;

Specifications:;
SN WXW0E69VVV95;
Model WD3200BMVV-11A1PS0;
DATE 25 AUG 2009;
DCM DANT2HBB;
Product of Thailand;
PCB Sticker: 2061-701650-000 08P;
PCB Revision: 2060-701650-000 REV P1;

;

Specifications;
SN: WXE409HY4794;
Model: WD3200BMVU-11A04S0;
Date: 25 MAY 2012;
DCM: HHNTJBB ;
Product of: Thailand;
PCB Sticker: 2061-701615-700 AA;
PCB Revision: 2060-701615-004 REV A;

;

;

HDD with Serial Number: WXF0EA9WT491;
Model: WD3200BMVV-11A1PS0;
Date: 01 DEC 2009;
DCM: DANT2HNB;
Product of: Thailand;
PCB Sticker: 2061-701650-000 08P;
PCB Revision: 2060-701350-000 REV P1;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 90C/2316;
1 : 1 : 96A/2410;
2 : 2 : 91E/2334;
3 : 3 : 9A6/2470;
ROM F/W version……………………. : 0002000U;
Heads map…………………………. : 0,1,2,3;
Preamp vendor……………………. : 0x0002;
Preamp revision………………….. : 0x0001;

;

Specifications;
SN: WXV1E30DFUC4;
Model: WD3200BMVV-11A1CS0;
Date: 18 JUL 2012;
DCM: EANTJHN ;
Product of: Malaysia;
PCB Sticker: 2061-701675-604 04P;
PCB Revision: 2060-701675-004 REV P1;

;

;

HDD with Serial Number: WXT0EB9UTW69;
Model: WD3200BMVV-11A1PS0;
Date: 20 JAN 2010;
DCM: DANTJANB;
Product of: Thailand;
PCB Sticker: 2061-701650-000 AC;
PCB Revision: 2060-701650-000 REV P1;

;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 9A6/2470;
1 : 1 : 940/2368;
2 : 2 : 996/2454;
3 : 3 : 922/2338;

;

ROM F/W version……………………. : 0002000U;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0001;

;

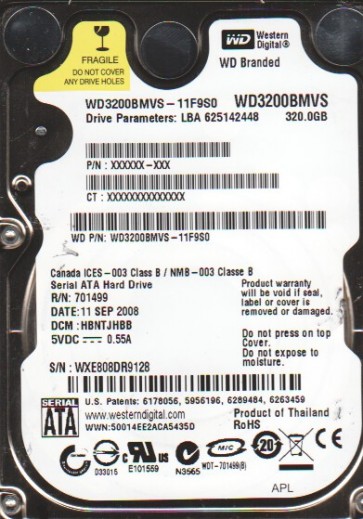

Specifications;
SN: WXE808DR9128;
Model: WD3200BMVS-11F9S0;
Date: 11 SEP 2008;
DCM: HBNTJHBB ;
Product of: Thailand;
PCB Sticker: 2061-701499-500 AE ;
PCB Revision: 2060-701499-000 REV A;

;

;

HDD with Serial Number: WXH409463899;
Model: WD3200BMVU-11A04S0;
Date: 06 MAY 2009;
DCM: DANTJHNB;
Product of: Thailand;
PCB Sticker: 2061-701499-H00 06P;
PCB Revision: 2060-701499-000 REV A;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 926/2342;
1   : 1   : 8C8/2248;
2   : 2   : 8BA/2234;
3   : 3   : 8DA/2266;
ROM F/W version……………………. : 0002000K;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0001;
;
;
;
;

;
