Category: HDD

HDD with Serial Number: WX31A31Y9073;
Model: WD3200BEVT-75A23T0;
Date: 21 MAY 2011;
DCM: HHMTJHB;
Product of: Malaysia;
PCB Sticker: 2061-771672-F04 AD;
PCB Revision: 2060-771672-004 REV A;
Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : B36/2870;
1   : 1   : B76/2934;
ROM F/W version……………………. : 0016001H;
Heads map…………………………. : 0,1;
Preamp vendor……………………. : 0x0001;
Preamp revision………………….. : 0x0000;

HDD with Serial Number: WXJ1A1101943;
Model: WD3200BEVT-75A23T0;
Date: 06 MAR 2011;
DCM: HHMTJHB;
Product of: Malaysia;
PCB Sticker: 2061-771672-F04 AD;
PCB Revision: 2060-771672-004 REV A;
;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : A90/2704;
1   : 1   : AF4/2804;
ROM F/W version……………………. : 0016000T;
Heads map…………………………. : 0,1;
Preamp vendor……………………. : 0x0001;
Preamp revision………………….. : 0x0000;

;

HDD with Serial Number: WXE408AY5178;
Model: WD3200BEVT-75ZCT1;
Date: 26 MAY 2008;
DCM: HBCVJBBB;
Product of: Thailand;
PCB Sticker: 2061-701499-500 AC;
PCB Revision: 2060-701499-000 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 7AC/1964;
1 : 1 : 7BA/1978;
2 : 2 : 79D/1949;
3 : 3 : 7B9/1977;
ROM F/W version……………………. : 0004002S;
Heads map…………………………. : 0,1,2,3;
Preamp vendor……………………. : 0x0001;
Preamp revision………………….. : 0x0000;

;

HDD #1 Specs:;
SN: WXF0E49NZ065;
Model: WD3200BEVT-75ZCT2;
Date: 16 JUN 2009;
DCM: DHNTJBNB ;
Product of: Thailand;
PCB Sticker: 2061-701499-E00 AC;
PCB Revision: 2060-701499-005 REV P1;

;

;

HDD with Serial Number: WX31A11W7124;
Model: WD3200BEVT-75A23T0;
Date: 12 MAR 2011;
DCM: HHMTJHK;
Product of: Malaysia;
PCB Sticker: 2061-771672-F04 AD;
PCB Revision: 2060-771672-004 REV A;

;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : B20/2848;
1 : 1 : BA8/2984;

;

ROM F/W version: 0016000T;
Heads map: 0,1;
Preamp vendor: 0x0001;
Preamp revision: 0x0000;

;

HDD with Serial Number: WXE708D60407;
Model: WD3200BEVT-75ZCT1;
Date: 05 AUG 2008;
DCM: HHCV2ANB;
Product of: Thailand;
PCB Sticker: 2061-701499-500 AE;
PCB Revision: 2060-701499-000 REV A;
;

ROM F/W 0008000Q;
Heads map  0,1,2,3;
Preamp vendor:x0002;
preamp revision:x0001;
Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 7D7/2007;
1   : 1   : 819/2073;
2   : 2   : 858/2136;
3   : 3   : 823/2083

;

HDD with Serial Number: WXN1E61AMJWN;
Model: WD3200BEVT-75A23T0;
Date: 26 JUL 2011;
DCM: SHMTJGNB;
Product of: Thailand;
PCB Sticker: 2061-771672-F04 AD;
PCB Revision: 2060-771672-004 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : B0C/2828;
1 : 1 : B10/2832;
ROM F/W version……………………. : 0016001Q;
Heads map…………………………. : 0,1;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0000;

;

HDD with Serial Number: WXE708JS6988;
Model: WD3200BEVT-75ZCT1;
Date: 21 AUG 2008;
DCM: HHCVJBBB;
Product of: Thailand;
PCB Sticker: 2061-701499-500 AE;
PCB Revision: 2060-701499-000 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 80C/2060;
1 : 1 : 877/2167;
2 : 2 : 8E8/2280;
3 : 3 : 83C/2108;
ROM F/W version……………………. : 0008000W;
Heads map…………………………. : 0,1,2,3;
Preamp vendor……………………. : 0x0001;
Preamp revision………………….. : 0x0001;

;

HDD with Serial Number: WXE408LK0373;
Model: WD3200BEVT-75ZCT0;
Date: 24 APR 2008;
DCM: HACVJABB;
Product of: Thailand;
PCB Sticker: 2061-701499-500 AB;
PCB Revision: 2060-701499-000 REV A;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 7D2/2002;
1   : 1   : 796/1942;
2   : 2   : 7FB/2043;
3   : 3   : 78C/1932;
ROM F/W version……………………. : 00030028;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0000;
;
;
;
;

;

HDD with Serial Number: WXL0E49TA251;
Model: WD3200BEVT-75ZCT2;
Date: 26 JUN 2009;
DCM: DACTJBBB;
Product of: Thailand;
PCB Sticker: 2061-701499-E00 AC;
PCB Revision: 2060-701499-005 REV P1;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 956/2390;
1   : 1   : 8D2/2258;
2   : 2   : 93F/2367;
3   : 3   : 8FC/2300;
ROM F/W version……………………. : 00080030;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0001;
;
;
;
;

;

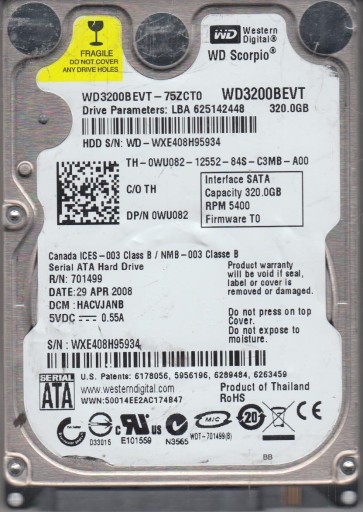

HDD with Serial Number: WXE408H95934;
Model: WD3200BEVT-75ZCT0;
Date: 29 APR 2008;
DCM: HACVJANB;
Product of: Thailand;
PCB Sticker: 2061-701499-500 AB;
PCB Revision: 2060-701499-000 REV A;

;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 7E6/2022;
1 : 1 : 7EE/2030;
2 : 2 : 89F/2207;
3 : 3 : 7D2/2002;
ROM F/W version……………………. : 00030028;
Heads map…………………………. : 0,1,2,3;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0000;

HDD with Serial Number: WXE408JY8171;
Model: WD3200BEVT-75ZCT0;
Date: 11 MAY 2008;
DCM: HACVJANB;
Product of: Thailand;
PCB Sticker: 2061-701499-500 AB;
PCB Revision: 2060-701499-000 REV A;
;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 7D1/2001;
1   : 1   : 788/1928;
2   : 2   : 828/2088;
3   : 3   : 798/1944;
ROM F/W version……………………. : 00030028;
Heads map…………………………. : 0,1,2,3;
Preamp vendor……………………. : 0x0001;
Preamp revision………………….. : 0x0000;

;
