Category: HDD

HDD with Serial Number: WX10A79V0074;
Model: WD3200BEVT-26ZCT0;
Date: 24 JUL 2009;
DCM: HACT2BNB;
Product of: Thailand;
PCB Sticker: 2061-701499-E00 AC;
PCB Revision: 2060-701499-005 REV P1;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 9B6/2486;
1 : 1 : 927/2343;
2 : 2 : 9A6/2470;
3 : 3 : 960/2400;
;
ROM F/W version……………………. : 000800B1;
Preamp vendor……………………… : 0x0002;
Preamp revision……………………. : 0x0001;

;

HDD with Serial Number: WXE908LHA277;
Model: WD3200BEVT-22ZCT0;
Date: 17 OCT 2008;
DCM: HHNTJHB;
Product of: Malaysia;
PCB Sticker: 2061-701499-500 AF;
PCB Revision: 2060-701499-000 REV A;
;

;

HDD with Serial Number: WX21A11X7952;
Model: WD3200BEVT-24A23T0;
Date: 27 JAN 2011;
DCM: HHMTJHN;
Product of: Malaysia;
PCB Sticker: 2061-771672-F04 AC;
PCB Revision: 2060-771672-004 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : B64/2916;
1 : 1 : B3A/2874;
ROM F/W version……………………. : 0016000D;
Heads map…………………………. : 0,1;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0000;

HDD with Serial Number: WXJ1A11W9323;
Model: WD3200BEVT-24A23T0;
Date: 01 MAR 2011;
DCM: HHMTJHN;
Product of: Malaysia;
PCB Sticker: 2061-771672-F04 AD;
PCB Revision: 2060-771672-004 REV A;
;

——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : AEA/2794;
1   : 1   : B04/2820;
;
ROM F/W Version: 0016000D;
Heads map: 0,1;
Preamp vendor: 0x0001;
Preamp revision: 0x0000

;

HDD with Serial Number: WXM0A99R1131;
Model: WD3200BEVT-26ZCT0;
Date: 24 OCT 2009;
DCM: HACT2HNB;
Product of: Thailand;
PCB Sticker: 2061-701499-E00 AC;
PCB Revision: 2060-701499-005 REV P1;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 902/2306;
1 : 1 : 970/2416;
2 : 2 : 911/2321;
3 : 3 : 96D/2413;
ROM F/W version……………………. : 000800FA;
Heads map…………………………. : 0,1,2,3;
Preamp vendor……………………. : 0x0002;
Preamp revision………………….. : 0x0001;

;

HDD with Serial Number: WXE808P48461;
Model: WD3200BEVT-22ZCT0;
Date: 15 SEP 2008;
DCM: HHNTJHN;
Product of: Malaysia;
PCB Sticker: 2061-701499-500 AE;
PCB Revision: 2060-701499-000 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 92A/2346;
1 : 1 : 91E/2334;
2 : 2 : 982/2434;
3 : 3 : 8D4/2260;
ROM F/W version……………………. : 0008000W;
Heads map…………………………. : 0,1,2,3;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0001;

;

HDD with Serial Number: WXC1A50W5240;
Model: WD3200BEVT-26A23T0;
Date: 20 JUN 2010;
DCM: HECVJHBB;
Product of: Thailand;
PCB Sticker: 2061-771672-F04 AA;
PCB Revision: 2060-771672-004 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : C80/3200;
1 : 1 : B68/2920;
ROM F/W version……………………. : 00140036;
Heads map…………………………. : 0,1;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0000;

;

HDD with Serial Number: WX31A90L0264;
Model: WD3200BEVT-22ZCT0;
Date: 28 SEP 2010;
DCM: HHNTJHNB;
Product of: Thailand;
PCB Sticker: 2061-701499-E00 AF;
PCB Revision: 2060-701499-005 REV A;
;

;

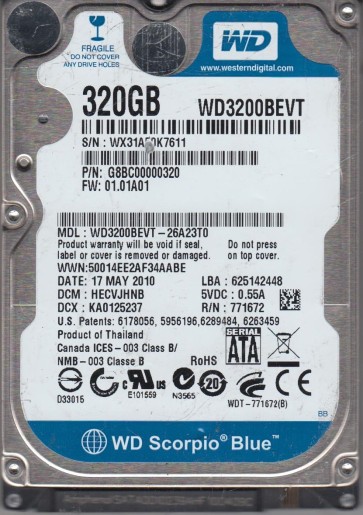

HDD with Serial Number: WX31A50K7611;
Model: WD3200BEVT-26A23T0;
Date: 17 MAY 2010;
DCM: HECVJHNB;
Product of: Thailand;
PCB Sticker: 2061-771672-F04 AA;
PCB Revision: 2060-771672-004 REV A;

;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : B90/2960;
1 : 1 : B7C/2940;
ROM F/W version……………………. : 00140026;
Heads map…………………………. : 0,1;
Preamp vendor…………………….. : 0x0001;
Preamp revision……………………. : 0x0000;

;

HDD with Serial Number: WXF1AB038356;
Model: WD3200BEVT-22ZCT0;
Date: 09 JAN 2011;
DCM: HHOT2HNB;
Product of: Thailand;
PCB Sticker: 2061-701499-E00 AF;
PCB Revision: 2060-701499-005 REV P1;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 96B/2411;
1 : 1 : 96A/2410;
2 : 2 : 95A/2394;
3 : 3 : 964/2404;
ROM F/W version……………………. : 0008003P;
Heads map…………………………. : 0,1,2,3;
Preamp vendor……………………. : 0x0002;
Preamp revision………………….. : 0x0001;

;

HDD with Serial Number: WX21A11S7500;
Model: WD3200BEVT-26A23T0;
Date: 26 JAN 2011;
DCM: HHCTJHB;
Product of: Malaysia;
PCB Sticker: 2061-771672-F04 AC;
PCB Revision: 2060-771672-004 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : A64/2660;
1 : 1 : B08/2824;
;
ROM F/W version: 0016000D;
Heads map: 0,1;
Preamp vendor: 0x0001;
Preamp revision: 0x0000;

;
