HDD with Serial Number: WX91A30H1592;
Model: WD3200BEVT-22A0RT0;
Date: 13 MAY 2010;
DCM: HANTJBB;
Product of: Malaysia;
PCB Sticker: 2061-771672-F04 AA;
PCB Revision: 2060-771672-004 REV A;
;
ROM F/W 00140028;
Heads map 0,2,3;
Preamp vendor:x0001;
preamp revision:x0003;
Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 9FE/2558;
1 : 2 : 9F6/2550;
2 : 3 : A56/2646
;
HDD #1 Specs:;
Serial Number: WXN1E61YPWY5;
Model: WD3200BEVT-22A23T0;
Date: 28 AUG 2011;
DCM: SEMTJHNB;
Product of: Thailand;
PCB Sticker: 2061-771672-F04 AD;
PCB Revision: 2060-771672-004 REV A;
;
Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : B3A/2874;
1 : 1 : B40/2880;
;
;
ROM F/W version……………………. : 0016001W;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0000;
;
HDD with Serial Number: WXE908JJF103;
Model: WD3200BEVT-22ZCT0;
Date: 06 OCT 2008;
DCM: HACT2AB;
Product of: Malaysia;
PCB Sticker: 2061-701499-500 AF;
PCB Revision: 2060-701499-000 REV A;
;
Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 964/2404;
1 : 1 : 914/2324;
2 : 2 : 926/2342;
3 : 3 : 8F8/2296;
;
ROM F/W version: 00080014;
Heads map: 0,1,2,3;
Preamp vendor: 0x0002;
Preamp revision: 0x0001;
;
HDD #1 Specs:;
Serial Number: WXG1C30T1563;
Model: WD3200BEVT-22A0RT0;
Date: 12 MAY 2010;
DCM: HBNTJAN;
Product of: Malaysia;
PCB Sticker: 2061-771672-F04 AA;
PCB Revision: 2060-771672-004 REV A;
;
Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 1 : A22/2594;
1 : 2 : A76/2678;
2 : 3 : 9BC/2492;
ROM F/W version……………………. : 00140028;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0003;
;
;
;
;
;

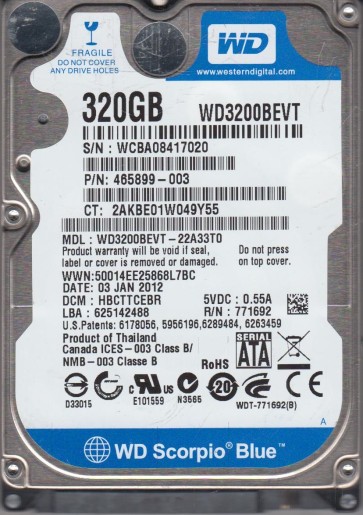

HDD with Serial Number: WCBA08417020;
Model: WD3200BEVT-22A33T0;
Date: 03 JAN 2012;
DCM: HBCTTCEBR;
Product of: Thailand;
PCB Sticker: 2061-771672-F04 AA;
PCB Revision: 2060-771672-004 REV A;
;
Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : A34/2612;
1 : 2 : A7C/2684;
2 : 3 : B08/2824;
ROM F/W version……………………. : 001400DH;
Heads map…………………………. : 0,2,3;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0003;
;
HDD with Serial Number: WXE308DN3418;
Model: WD3200BEVT-22ZCT0;
Date: 09 APR 2008;
DCM: HACTJABB;
Product of: Thailand;
PCB Sticker: 2061-701499-500 AB;
PCB Revision: 2060-701499-000 REV A;
;
Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 90B/2315;
1 : 1 : 8F8/2296;
2 : 2 : 926/2342;
3 : 3 : 8E1/2273;
;
ROM F/W Version: 00040028;
Heads Map: 0,1,2,3;
Preamp Vendor: 0x0001;
Preamp Revision: 0x0000;
;
HDD with Serial Number: WXP1A30P0899;
Model: WD3200BEVT-22A0RT0;
Date: 20 APR 2010;
DCM: HBNTJHN;
Product of: Malaysia;
PCB Sticker: 2061-771672-F04 AA;
PCB Revision: 2060-771672-004 REV A;
;
Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : AFA/2810;
1 : 1 : AA2/2722;
2 : 2 : ACC/2764;
3 : 3 : AA8/2728;
ROM F/W version……………………. : 001400DW;
Heads map…………………………. : 0,1,2,3;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0003;
HDD with Serial Number: WXJ1A2087045;
Model: WD3200BEVT-22A0RT0;
Date: 11 APR 2010;
DCM: HBNTJHN;
Product of: Malaysia;
PCB Sticker: 2061-771672-F04 AA;
PCB Revision: 2060-771672-004 REV A;
;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 1 : A46/2630;
1 : 2 : B14/2836;
2 : 3 : AA2/2722;
;
ROM F/W Version: 0014001W;
Heads map: 1,2,3;
Preamp vendor: 0x0001;
Preamp revision: 0x0003
;
HDD with Serial Number: WCBA08417023;
Model: WD3200BEVT-22A33T0;
Date: 03 JAN 2012;
DCM: HBCTTCEBW;
Product of: Thailand;
PCB Sticker: 771820-000 AB;
PCB Revision: 2060-771820-000 REV A;
;
Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : C1E/3102;
1 : 1 : B42/2882;
ROM F/W version……………………. : 00650046;
Heads map…………………………. : 0,1;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0000;
;
HDD with Serial Number: WXE608ND6707;
Model: WD3200BEVT-22ZCT0;
Date: 17 AUG 2008;
DCM: HACTJBN;
Product of: Malaysia;
PCB Sticker: 2061-701499-500 AE;
PCB Revision: 2060-701499-000 REV A;
;
Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 896/2198;
1 : 1 : 8CF/2255;
2 : 2 : 8B3/2227;
3 : 3 : 8E6/2278;
;
ROM F/W version: 0008000Q;
Heads map: 0,1,2,3;
Preamp vendor: 0x0001;
Preamp revision: 0x0001;
;
HDD with Serial Number: WXB1A40L2547;
Model: WD3200BEVT-22A0RT0;
Date: 10 MAY 2010;
DCM: HHNTJBN;
Product of: Malaysia;
PCB Sticker: 2061-771672-F04 AA;
PCB Revision: 2060-771672-004 REV A;
;
Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 9FA/2554;
1 : 1 : A50/2640;
2 : 3 : A32/2610;
ROM F/W version……………………. : 00140028;
Heads map…………………………. : 0,1,3;
Preamp vendor……………………. : 0x0001;
Preamp revision………………….. : 0x0003;
;
