HDD with Serial Number: WX21A11M1607;
Model: WD3200BEVT-08A23T1;
Date: 25 JAN 2011;
DCM: HECTJHBB;
Product of: Thailand;
PCB Sticker: 2061-771672-F04 AC;
PCB Revision: 2060-771672-004 REV A;
;
Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : AC6/2758;
1 : 1 : A84/2692;
ROM F/W version……………………. : 0016000D;
Heads map…………………………. : 0,1;
Preamp vendor……………………. : 0x0001;
Preamp revision………………….. : 0x0000;
;
;
;
;
HDD with Serial Number: WXH109907763;
Model: WD3200BEVT-11ZCT0;
Date: 28 JAN 2009;
DCM: DBCT2ANB;
Product of: Thailand;
PCB Sticker: 2061-701499-500 AG;
PCB Revision: 2060-701499-000 REV A;
;
;
HDD with Serial Number: WXC0AA967368;
Model: WD3200BEVT-11ZCT0;
Date: 08 NOV 2009;
DCM: HHNT2HBB;
Product of: Thailand;
PCB Sticker: 2061-701499-E00 AC;
PCB Revision: 2060-701499-005 REV A;
;
;
Specifications;

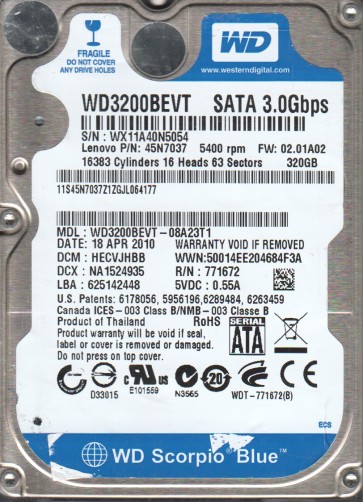

SN: WX11A40N5054;
Model: WD3200BEVT-08A23T1;
Date: 18 APR 2010;
DCM: HECVJHBB ;
Product of: Thailand;
PCB Sticker: 2061-771672-F04 AA;
PCB Revision: 2060-771672-004 REV A;
;
;
HDD with Serial Number: WXH108171613;
Model: WD3200BEVT-11ZCT0;
Date: 19 FEB 2008;
DCM: DHCVJBBB;
Product of: Thailand;
PCB Sticker: 2061-701499-500 AA;
PCB Revision: 2060-701499-000 REV A;
;
Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 7AC/1964;
1 : 1 : 755/1877;
2 : 2 : 797/1943;
3 : 3 : 73E/1854;
ROM F/W version……………………. : 00030028;
Heads map…………………………. : 0,1,2,3;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0000;
;
HDD with Serial Number: WXA1A50H3910;
Model: WD3200BEVT-08A23T1;
Date: 01 JUN 2010;
DCM: HECVJHNB;
Product of: Thailand;
PCB Sticker: 2061-771672-F04 AA;
PCB Revision: 2060-771672-004 REV A;
;
ROM F/W versionn 00140026;
Heads map: : 0,1;
Preamp vendor: x001;
Preamp revision: x0000;
;
Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : BDA/3034;
1 : 1 : AF8/2808
;
HDD with Serial Number: WXH108394056;
Model: WD3200BEVT-11ZCT0;
Date: 20 MAR 2008;
DCM: DHCVJHBB;
Product of: Thailand;
PCB Sticker: 2061-701499-500 AA;
PCB Revision: 2060-701499-000 REV A;
;
Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 7CF/1999;
1 : 1 : 7B6/1974;
2 : 2 : 7E2/2018;
3 : 3 : 7B6/1974;
ROM F/W version……………………. : 00030028;
Heads map…………………………. : 0,1,2,3;
Preamp vendor……………………. : 0x0001;
Preamp revision………………….. : 0x0000;
;
HDD with Serial Number: WX21AB0N4530;
Model: WD3200BEVT-08A23T1;
Date: 14 NOV 2010;
DCM: HHCTJANB;
Product of: Thailand;
PCB Sticker: 2061-771672-F04 AC;
PCB Revision: 2060-771672-004 REV A;
;
Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : BC0/3008;
1 : 1 : AEE/2798;
ROM F/W version……………………. : 00160001;
Heads map…………………………. : 0,1;
Preamp vendor……………………. : 0x0001;
Preamp revision………………….. : 0x0000;
;
HDD with Serial Number: WXE0E99VV353;
Model: WD3200BEVT-11ZCT0;
Date: 15 OCT 2009;
DCM: DHNTJBNB;
Product of: Thailand;
PCB Sticker: 2061-701499-E00 AC;
PCB Revision: 2060-701499-005 REV P1;
;
Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 919/2329;
1 : 1 : 960/2400;
2 : 2 : 920/2336;
3 : 3 : 956/2390;
ROM F/W version……………………. : 0008003A;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0001;
;
;
;
;
;
HDD with Serial Number: WXP1A71J4989;
Model: WD3200BEVT-08A23T1;
Date: 24 DEC 2011;
DCM: HHCTJHB;
Product of: Malaysia;
PCB Sticker: 2061-771672-F04 AH;
PCB Revision: 2060-771672-004 REV A;
;
Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : A8A/2698;
1 : 1 : B2E/2862;
ROM F/W version……………………. : 00160029;
Heads map…………………………. : 0,1;
Preamp vendor…………………….. : 0x0001;
Preamp revision…………………… : 0x0000;
HDD with Serial Number: WX51AA1Y1792;
Model: WD3200BEVT-08A23T1;
Date: 17 DEC 2011;
DCM: HHCTJHB;
Product of: Malaysia;
PCB Sticker: 2061-771672-F04 AH;
PCB Revision: 2060-771672-004 REV A;
;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : AEE/2798;
1 : 1 : AF2/2802;
;
ROM F/W Version: 00160029;
Heads map: 0,1;
Preamp vendor: 0x0001;
Preamp revision: 0x0000
;
