Category: HDD

HDD with Serial Number: WX30AC9R6625;
Model: WD3200BEVT-11A0RT0;
Date: 15 SEP 2011;
DCM: HACTJHB;
Product of: Malaysia;
PCB Sticker: 2061-771672-001 AE;
PCB Revision: 2060-771672-001 REV P1;

;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : A4C/2636;
1 : 2 : A38/2616;
2 : 3 : A42/2626;
;
ROM F/W version……………………. : 00130004;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0003;

;

HDD #1 Specs:;
Serial Number: WXB0A79U1859;
Model: WD3200BEVT-11ZCT0;
Date: 03 AUG 2009;
DCM: HANTJHNB;
Product of: Thailand;
PCB Sticker: 2061-701499-E00 AC;
PCB Revision: 2060-701499-005 REV P1;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 948/2376;
1   : 1   : 934/2356;
2   : 2   : 933/2355;
3   : 3   : 932/2354;
ROM F/W version……………………. : 000800F1;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0001;
;
;
;
;

;

HDD #1 Specs:;
Serial Number: WXE308EU3938;
Model: WD3200BEVT-00ZCT0;
Date: 05 APR 2008;
DCM: HHCVJABB;
Product of: Thailand;
PCB Sticker: 2061-701499-500 AA;
PCB Revision: 2060-701499-000 REV A;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 83E/2110;
1   : 1   : 7C0/1984;
2   : 2   : 7CA/1994;
3   : 3   : 7BD/1981;
ROM F/W version……………………. : 00040028;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0000;
;
;
;
;

;

HDD with Serial Number: WX50AB920010;
Model: WD3200BEVT-11A0RT0;
Date: 03 MAR 2012;
DCM: HACVJHB;
Product of: Thailand;
PCB Sticker: 2061-771672-001 AC;
PCB Revision: 2060-771672-001 REV P1;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : B71/2929;
1 : 1 : A6E/2670;
2 : 3 : B3A/2874;
ROM F/W version……………………. : 001400E5;
Heads map…………………………. : 0,1,3;
Preamp vendor…………………….. : 0x0001;
Preamp revision……………………. : 0x0003;

;

HDD with Serial Number: WXEY07S38592;
Model: WD3200BEVT-11ZCT0;
Date: 14 JAN 2008;
DCM: HBCVJBBB;
Product of: Thailand;
PCB Sticker: 2061-701499-500 AA;
PCB Revision: 2060-701499-000 REV A;
;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 7BC/1980;
1   : 1   : 7EA/2026;
2   : 2   : 7C1/1985;
3   : 3   : 7AB/1963;
ROM F/W version……………………. : 00030028;
Heads map…………………………. : 0,1,2,3;
Preamp vendor……………………. : 0x0001;
Preamp revision………………….. : 0x0000;

;

HDD with Serial Number: WXEZ07D66921;
Model: WD3200BEVT-00ZCT0;
Date: 13 DEC 2007;
DCM: HHCVJHBB;
Product of: Thailand;
PCB Sticker: 2061-701499-500 AA;
PCB Revision: 2060-701499-000 REV A;

;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 74C/1868;
1 : 1 : 790/1936;
2 : 2 : 76D/1901;
3 : 3 : 787/1927;

;

ROM F/W version……………………. : 0003001B;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0000;

;

HDD with Serial Number: WXE0AC9H5500;
Model: WD3200BEVT-11A0RT0;
Date: 04 MAR 2012;
DCM: HBCVJBB;
Product of: Malaysia;
PCB Sticker: 2061-771672-001 AE;
PCB Revision: 2060-771672-001 REV P1;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : BF4/3060;
1 : 1 : B9F/2975;
2 : 3 : B99/2969;
ROM F/W version……………………. : 001400DB;
Heads map…………………………. : 0,1,3;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0003;

;

HDD with Serial Number: WXA0AA9R5050;
Model: WD3200BEVT-11ZCT0;
Date: 05 NOV 2009;
DCM: HBNTJBNB;
Product of: Thailand;
PCB Sticker: 2061-701499-E00 AC;
PCB Revision: 2060-701499-005 REV A;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 973/2419;
1   : 1   : 98E/2446;
2   : 2   : 925/2341;
3   : 3   : 992/2450;
ROM F/W version……………………. : 0008003A;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0001;
;
;
;
;

;

HDD with Serial Number: WXD1A80H0215;
Model: WD3200BEVT-00A23T0;
Date: 11 JUL 2011;
DCM: HECVJAB;
Product of: Thailand;
PCB Sticker: 2061-771672-F04 AA;
PCB Revision: 2060-771672-004 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : B86/2950;
1 : 1 : B22/2850;
ROM F/W version……………………. : 0016000T;
Heads map…………………………. : 0,1;
Preamp vendor…………………….. : 0x0001;
Preamp revision…………………… : 0x0000;

;

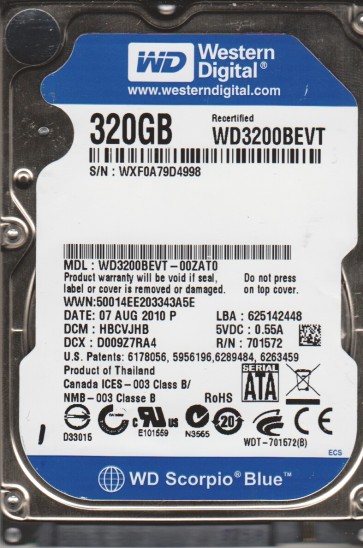

Specifications;
SN: WXF0A79D4998;
Model: WD3200BEVT-00ZAT0;
Date: 07 AUG 2010;
DCM: HBCVJHB ;
Product of: Thailand;
PCB Sticker: 2061-701572-400 AB;
PCB Revision: 2060-701572-002 REV A;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 8EC/2284;
1   : 1   : 8E4/2276;
2   : 2   : 92D/2349;
ROM F/W version……………………. : 00090097;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0002;
;
;
;
;

;
