Category: HDD

HDD with Serial Number: WXH0AA9M6629;
Model: WD3200BEVS-08VAT2;
Date: 17 NOV 2009;
DCM: HHNTJHBB;
Product of: Thailand;
PCB Sticker: 2061-701499-E00 AD;
PCB Revision: 2060-701499-005 rev a;

;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 98F/2447;
1 : 1 : 94A/2378;
2 : 2 : 98E/2446;
3 : 3 : 942/2370;

;

ROM F/W version……………………. : 0008003J;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0001;

;

Specifications;
SN: WX10AB988693;
Model: WD3200BEVS-08VAT2;
Date: 14 NOV 2009;
DCM: HHOT2HNB ;
Product of: THAILAND;
PCB Sticker: 2061-701499-E00 AC;
PCB Revision: 2060-701499-005 REV P1;

;
;

;

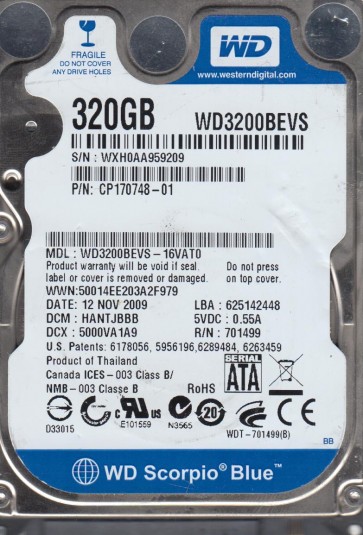

HDD with Serial Number: WXH0AA959209;
Model: WD3200BEVS-16VAT0;
Date: 12 NOV 2009;
DCM: HANTJBBB;
Product of: Thailand;
PCB Sticker: 2061-701499-R00 01P;
PCB Revision: 2060-701499-005 REV P1;
;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 8F5/2293;
1   : 1   : 926/2342;
2   : 2   : 8F4/2292;
3   : 3   : 91E/2334;
;
ROM F/W: 000800FJ;
Heads map: 0,1,2,3;
Preamp vendor: 0x0001;
Preamp revision: 0x0001

;

HDD #1 Specs:;
Serial Number: WXB0A99S7351;
Model: WD3200BEVS-26VAT0;
Date: 14 OCT 2009;
DCM: DANT2BNB;
Product of: Thailand;
PCB Sticker: 2061-701499-E00 AC;
PCB Revision: 2060-701499-005 REV P1;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 97E/2430;
1   : 1   : 970/2416;
2   : 2   : 972/2418;
3   : 3   : 96F/2415;
ROM F/W version……………………. : 000800FA;
Preamp vendor……………………… : 0x0002;
Preamp revision……………………. : 0x0001;
;
;
;
;
;

;

HDD with Serial Number: WXR0E69CAE71;
Model: WD3200BEVS-26VAT0;
Date: 09 AUG 2009;
DCM: DANTJBNB;
Product of: Thailand;
PCB Sticker: 2061-701499-E00 AC;
PCB Revision: 2060-701499-005 REV P1;
;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 914/2324;
1   : 1   : 934/2356;
2   : 2   : 934/2356;
3   : 3   : 92B/2347;
ROM F/W version……………………. : 000800F1;
Heads map…………………………. : 0,1,2,3;
Preamp vendor……………………. : 0x0001;
Preamp revision………………….. : 0x0001;
;
;
;

;

HDD with Serial Number: WXL0E49VU802;
Model: WD3200BEVS-26VAT0;
Date: 06 JUL 2009;
DCM: DBCT2BNB;
Product of: Thailand;
PCB Sticker: 2061-701499-E00 AC;
PCB Revision: 2060-701499-005 REV P1;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 986/2438;
1 : 1 : 940/2368;
2 : 2 : 98A/2442;
3 : 3 : 948/2376;
ROM F/W version……………………. : 00080030;
Heads map…………………………. : 0,1,2,3;
Preamp vendor……………………. : 0x0002;
Preamp revision………………….. : 0x0001;

;

HDD with Serial Number: WXHY08925721;
Model: WD3200BEVS-26VAT0;
Date: 08 DEC 2008;
DCM: DHNT2BNB;
Product of: Thailand;
PCB Sticker: 2061-701499-500 AG;
PCB Revision: 2060-701499-000 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 96F/2415;
1 : 1 : 905/2309;
2 : 2 : 979/2425;
3 : 3 : 927/2343;

;

;
ROM F/W version: 0008001S;
Heads map: 0,1,2,3;
Preamp vendor: 0x0002;
Preamp revision: 0x0001;

;

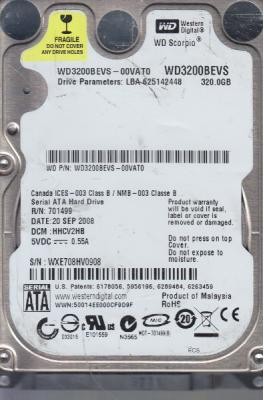

HDD with Serial Number: WXE708HV0908;
Model: WD3200BEVS-00VAT0;
Date: 20 SEP 2008;
DCM: HHCV2HB;
Product of: Malaysia;
PCB Sticker: 2061-701499-500 AE;
PCB Revision: 2060-701499-000 REV A;
ROM F/W: 0008000W;
Heads map: 0,1,2,3;
Preamp vendor: 0x0002;
Preamp revision: 0x0001;
Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 7DF/2015;
1   : 1   : 87F/2175;
2   : 2   : 7CF/1999;
3   : 3   : 875/2165;
;
;
;

;

HDD with Serial Number: WXF1E10CFM36;
Model: WD3200BEVS-26VAT0;
Date: 13 MAR 2010;
DCM: DHNTJANB;
Product of: Thailand;
PCB Sticker: 2061-701499-E00 AF;
PCB Revision: 2060-701499-005 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 9AB/2475;
1 : 1 : 938/2360;
2 : 2 : 9A0/2464;
3 : 3 : 938/2360;

;

ROM F/W: 000800FP;
Heads map: 0,1,2,3;
Preamp vendor: 0x0001;
Preamp revision: 0x0001;

;

HDD with Serial Number: WXF0E79ZJ453;
Model: WD3200BEVS-08VAT2;
Date: 07 SEP 2009;
DCM: DANTJHNB;
Product of: Thailand;
PCB Sticker: 2061-701499-E00 AC;
PCB Revision: 2060-701499-005 REV P1;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 8B0/2224;
1 : 1 : 8C2/2242;
2 : 2 : 8B3/2227;
3 : 3 : 8C2/2242;
ROM F/W version……………………. : 000800FA;
Heads map…………………………. : 0,1,2,3;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0001;

;
