Category: HDD

HDD #2 Specs:;
Serial Number: WXC0A9903515;
Model: WD7500KMVV-11A27S1;
Date: 30 OCT 2009;
DCM: HHBVJHBB;
Product of: Thailand;
PCB Sticker: 2061-701675-201 AB;
PCB Revision: 2060-701675-001 REV P1;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : BB1/2993;
1   : 1   : C5E/3166;
2   : 2   : B57/2903;
3   : 3   : B64/2916;
4   : 4   : BA6/2982;
5   : 5   : C30/3120;
;
;

;

HDD #1 Specs:;
Serial Number: WX91C8080982;
Model: WD7500KMVV-11BG7S0;
Date: 08 OCT 2010;
DCM: EBBV2HBB;
Product of: Thailand;
PCB Sticker: 2061-701675-304 03P;
PCB Revision: 2060-701675-004 REV A;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : BFC/3068;
1   : 1   : B80/2944;
2   : 2   : C9E/3230;
3   : 4   : BCA/3018;
4   : 5   : B7A/2938;

;

Preamp Vendor……………………… : 0000;
Preamp Rev………………………… : 0006;
;

;

HDD #1 Specs:;
Serial Number: WXD0CB9K8279;
Model: WD7500KMVV-11A27S2;
Date: 11 FEB 2010;
DCM: EBBVJHBB;
Product of: Thailand;
PCB Sticker: 2061-701675-401 AC;
PCB Revision: 2060-701675-001 REV P1;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : BE8/3048;
1   : 1   : C18/3096;
2   : 2   : C34/3124;
3   : 4   : BE8/3048;
4   : 5   : B86/2950;
Preamp Vendor……………………… : 0001;
Preamp Rev………………………… : 0006;
;
;
;

;

HDD with Serial Number: WX71C5000649;
Model: WD7500KMVV-11BG7S0;
Date: 03 JUL 2010;
DCM: EBBVJHBB;
Product of: Thailand;
PCB Sticker: 2061-701675-304 03P;
PCB Revision: 2060-701675-004 REV P1;

;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : C34/3124;
1 : 1 : B30/2864;
2 : 2 : C2A/3114;
3 : 3 : B56/2902;
4 : 4 : C68/3176;

;

ROM F/W version……………………. : 0014009W;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0006;

;

HDD #1 Specs:;
SN: WXD0CB909297;
Model: WD7500KMVV-11A27S2;
Date: 29 JAN 2010;
DCM: EHBVJBB;
Product of: Thailand;
PCB Sticker: 2061-701675-400 02P;
PCB Revision: 2060-701675-000 REV P1;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : C3E/3134;
1   : 1   : B50/2896;
2   : 2   : C78/3192;
3   : 3   : B74/2932;
4   : 4   : CB2/3250;
5   : 5   : B3E/2878;
;
;

;

HDD with Serial Number: WXB1C1024511;
Model: WD7500KMVV-11BG7S0;
Date: 29 APR 2010;
DCM: EBBVJHNB;
Product of: Thailand;
PCB Sticker: 2061-701675-304 03P;
PCB Revision: 2060-701675-004 REV P1;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : BFC/3068;
1 : 1 : C12/3090;
2 : 2 : C4E/3150;
3 : 3 : C10/3088;
4 : 4 : CC6/3270;
5 : 5 : C12/3090;
ROM F/W version……………………. : 0014001T;
Heads map…………………………. : 0,1,2,3,4,5;
Preamp vendor……………………. : 0x0001;
Preamp revision………………….. : 0x0006;

;

HDD with Serial Number: WXM0A9953255;
Model: WD7500KMVV-11A27S2;
Date: 21 JAN 2010;
DCM: EHBVJBBB;
Product of: Thailand;
PCB Sticker: 2061-701675-401 AC;
PCB Revision: 2060-701675-001 REV P1;

;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : BCA/3018;
1 : 1 : B58/2904;
2 : 2 : C84/3204;
3 : 3 : B40/2880;
4 : 4 : BFA/3066;
5 : 5 : B34/2868;

;

ROM F/W version……………………. : 0081001A;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0006;

;

;

Specifications;
SN: WXU1C6042387;
Model: WD7500KMVV-11BG7S0;
Date: 31 AUG 2010;
DCM: EBBVJHNN
R/N 701675;
Product of: Thailand;
PCB Sticker: 2061-701675-304 06P;
PCB Revision: 2060-701675-004 REV P1;

;

;

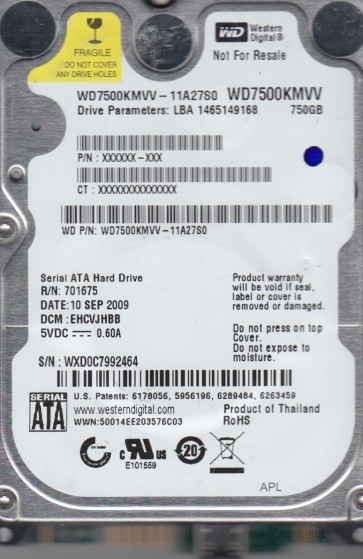

HDD with  Serial Number: WXD0C7992464;
Model: WD7500KMVV-11A27S0;
Date: 10 SEP 2009;
DCM: EHCVJHBB;
Product of: Thailand;
PCB Sticker: 2061-701675-401 01PD1;
PCB Revision: 2060-701675-001 REV P1;

;

;

HDD #1 Specs:;
SN: WX51C10F4619;
Model: WD7500KMVV-11A27S2;
Date: 02 APR 2010;
DCM: EHBVJHBB ;
Product of: Thailand;
PCB Sticker: 2061-701675-404 02P;
PCB Revision: 2060-701675-004 REV P1;

;

;
