Category: HDD

HDD with Serial Number: WX71A6361943;
Model: WD3200BEKT-08PVMT1;
Date: 20 AUG 2013;
DCM: HHOTJAN;
Product of: Malaysia;
PCB Sticker: 771692-806 AJ;
PCB Revision: 2060-771692-006 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : B50/2896;
1 : 1 : B38/2872;
ROM F/W version……………………. : 0004002D;
Heads map…………………………. : 0,1;
Preamp vendor……………………. : 0x0001;
Preamp revision………………….. : 0x0000;

;

HDD with Serial Number: WX61A63Y2689;
Model: WD3200BEKT-08PVMT1;
Date: 14 AUG 2013;
DCM: HHOTJHK;
Product of: Malaysia;
PCB Sticker: 771692-806 AJ;
PCB Revision: 2060-771692-006 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : B44/2884;
1 : 1 : BB2/2994;

;

ROM F/W version:0004002D;
Preamp vendor:0x0001;
Preamp revision:0x0000;

;

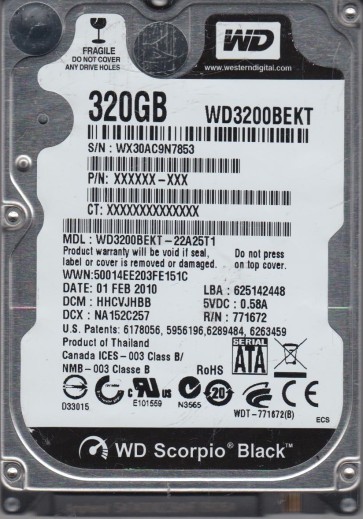

HDD with Serial Number: WX30AC9N7853;
Model: WD3200BEKT-22A25T1;
Date: 01 FEB 2010;
DCM: HHCVJHBB;
Product of: Thailand;
PCB Sticker: 2061-771672-E04 03PD2;
PCB Revision: 2060-771672-004 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : B75/2933;
1 : 1 : A97/2711;
ROM F/W version……………………. : 001400CD;
Heads map…………………………. : 0,1;
Preamp vendor……………………. : 0x0001;
Preamp revision………………….. : 0x0000;

;

HDD with Serial Number: WXE808C06300;
Model: WD3200BEKT-22F3T0;
Date: 13 JAN 2009;
DCM: HACTJHBB;
Product of: Thailand;
PCB Sticker: 2061-701574-D00 AA;
PCB Revision: 2060-701574-001 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 93F/2367;
1 : 1 : 936/2358;
2 : 2 : 964/2404;
3 : 3 : 986/2438;
ROM F/W version……………………. : 0007003E;
Heads map…………………………. : 0,1,2,3;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0002;

HDD with Serial Number: WXE708PH6389;
Model: WD3200BEKT-22F3T0;
Date: 25 OCT 2008;
DCM: HACTJHBB;
Product of: Thailand;
PCB Sticker: 2061-701574-D00 AA;
PCB Revision: 2060-701574-001 REV A;
;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 97F/2431;
1   : 1   : 907/2311;
2   : 2   : 9A9/2473;
3   : 3   : 912/2322;
ROM F/W version……………………. : 000700BB;
Heads map…………………………. : 0,1,2,3;
Preamp vendor……………………. : 0x0001;
Preamp revision………………….. : 0x0002;

;

HDD with Serial Number: WXE708PU6601;
Model: WD3200BEKT-22F3T0;
Date: 23 OCT 2008;
DCM: HACTJHNB;
Product of: Thailand;
PCB Sticker: 2061-701574-D00 AA;
PCB Revision: 2060-701574-001 REV A;
;

——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 967/2407;
1   : 1   : 8D1/2257;
2   : 2   : 9B2/2482;
3   : 3   : 8CD/2253;
;
ROM F/W Version: 000700BB;
Heads map: 0,1,2,3;
Preamp vendor: 0x0001;
Preamp revision: 0x0002

;

HDD with Serial Number: WXM908SU1894;
Model: WD3200BEKT-22F3T0;
Date: 12 OCT 2008;
DCM: HHCTJABB;
Product of: Thailand;
PCB Sticker: 2061-701574-D00 AA;
PCB Revision: 2060-701574-001 REV A;
;

——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 9B3/2483;
1   : 1   : 96D/2413;
2   : 2   : A0A/2570;
3   : 3   : 914/2324;
;
ROM F/W Version: 0007003B;
Heads map: 0,1,2,3;
Preamp vendor: 0x0001;
Preamp revision: 0x0002

;

HDD with Serial Number: WXE808PN5748;
Model: WD3200BEKT-22F3T0;
Date: 08 SEP 2008;
DCM: HHCVJBNB;
Product of: Thailand;
PCB Sticker: 2061-701574-D00 AA;
PCB Revision: 2060-701574-001 REV A;
;

ROM F/W 0007003A;
Heads map  0,1,2,3;
Preamp vendor:x0001;
preamp revision:x0001;
;
Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 834/2100;
1   : 1   : 7F5/2037;
2   : 2   : 815/2069;
3   : 3   : 81E/2078

;

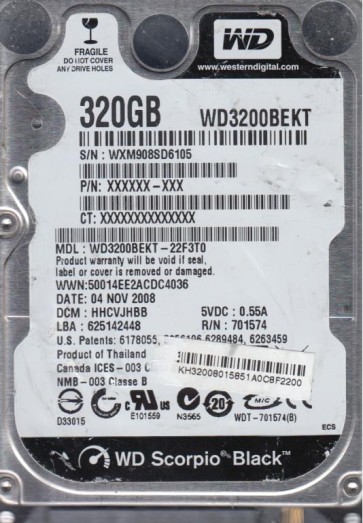

HDD with Serial Number: WXM908SD6105;
Model: WD3200BEKT-22F3T0;
Date: 04 NOV 2008;
DCM: HHCVJHBB;
Product of: Thailand;
PCB Sticker: 2061-701574-D00 AA;
PCB Revision: 2060-701574-001 REV A;
;

;

HDD with Serial Number: WXM1E60KK841;
Model: WD3200BEKT-22KA9T0;
Date: 28 JUL 2010;
DCM: EACTJANB;
Product of: Thailand;
PCB Sticker: 2061-771714-002 02P;
PCB Revision: 2060-771714-002 REV P1;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 997/2455;
1   : 1   : A21/2593;
2   : 2   : 9AF/2479;
ROM F/W version……………………. : 0016000M;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0003;
;
;
;
;

;

HDD #1 Specs:;
Serial Number: WX31EC0A9639;
Model: WD3200BEKT-22KA9T0;
Date: 12 APR 2011;
DCM: EBNTJABB;
Product of: Thailand;
PCB Sticker: 771714-002 AC;
PCB Revision: 2060-771714-002 REV P1;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : B1D/2845;
1   : 1   : A1F/2591;
2   : 2   : B14/2836;
ROM F/W version……………………. : 00160016;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0003;
;
;
;
;

;
