Category: HDD

HDD with Serial Number: WCAV16868730;
Model: WD3200AVVS-63L2B0;
Date: 16 SEP 2010;
DCM: HGRNNTJAGN;
Product of: Thailand;
PCB Sticker: 2061-771590-Z01 01P;
PCB Revision: 2060-771590-001 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : AC0/2752;
1 : 1 : AEC/2796;
ROM F/W version……………………. : 000300EG;
Heads map…………………………. : 0,1;
Preamp vendor……………………. : 0x0001;
Preamp revisioon………………… : 0x0003;

;

HDD with Serial Number: WCAV19162088;
Model: WD3200AVVS-63L2B0;
Date: 01 FEB 2011;
DCM: HGRNNTJAHN;
Product of: Thailand;
PCB Sticker: 2061-771590-03P;
PCB Revision: 2060-771590-001 REV A;
;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : B96/2966;
1   : 1   : AC2/2754;
ROM F/W version……………………. : 000300EG;
Heads map…………………………. : 0,1;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0003;
;
;
;
;

;

HDD with Serial Number: WCAV1C801280;
Model: WD3200AVVS-63L2B0;
Date: 12 JUL 2011;
DCM: HHNNHT2AGN;
Product of: Thailand;
PCB Sticker: 2061-771590-X02 AD;
PCB Revision: 2060-771590-001 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : A32/2610;
1 : 1 : A74/2676;
ROM F/W version……………………. : 000300ES;
Heads map…………………………. : 0,1;
Preamp vendor……………………… : 0x0000;
Preamp revision……………………. : 0x0005;

;

HDD with Serial Number: WCAV1C874883;
Model: WD3200AVVS-63L2B0;
Date: 17 JUL 2011;
DCM: HHNNKT2AGN;
Product of: Thailand;
PCB Sticker: 2061-771590-Z01 AA;
PCB Revision: 2060-771590-001 REV A;
;

;

HDD with Serial Number: WCAV1D958626;
Model: WD3200AVVS-63L2B0;
Date: 06 OCT 2011;
DCM: HHRNHT2AHN;
Product of: Thailand;
PCB Sticker: 2061-771590-Z01 AB;
PCB Revision: 2060-771590-001 REV A;
;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : A64/2660;
1   : 1   : AC0/2752;
ROM F/W version……………………. : 000300EV;
Heads map…………………………. : 0,1;
Preamp vendor……………………… : 0x0000;
Preamp revision……………………. : 0x0005;
;
;
;
;

;

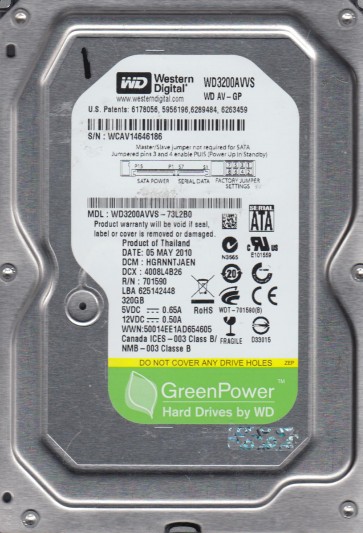

HDD with Serial Number: WCAV14646186;
Model: WD3200AVVS-73L2B0;
Date: 05 MAY 2010;
DCM: HGRNNTJAEN;
Product of: Thailand;
PCB Sticker: 2061-701590-Q01 05P;
PCB Revision: 2060-701590-001 REV B;

;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : A72/2674;
1 : 1 : AD2/2770;

;

ROM F/W version……………………. : 000300E5;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0003;

;

HDD with Serial Number: WMC1U1473747;
Model: WD3200AZDX-00SC2B0;
Date: 16 FEB 2012;
DCM: HANCHVJMH;
Product of: Malaysia;
PCB Sticker: 771824-005 02P;
PCB Revision: 2060-771824-005 REV P1;
;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 11E1/4577;
1   : 1   : 11D4/4564;
ROM F/W version……………………. : 0030001J;
Heads map…………………………. : 0,1;
Preamp vendor……………………. : 0x0001;
Preamp revision………………….. : 0x0001;
;
;
;

;

HDD with Serial Number: WMC1U0115287;
Model: WD3200AZDX-00SC2B0;
Date: 12 JAN 2012;
DCM: HARCHV2CH;
Product of: Malaysia;
PCB Sticker: 771824-G05 01P;
PCB Revision: 2060-771824-005 REV P1;
;

——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 12B6/4790;
;
ROM F/W Version: 0030001C;
Heads map: 0;
Preamp vendor: 0x0000;
Preamp revision: 0x0003

;

HDD with Serial Number: WCAT13948967;
Model: WD3200AVJS-63B6A0;
Date: 12 SEP 2008;
DCM: HGRNHV2AGN;
Product of: Thailand;
PCB Sticker: 2061-701537-G00 AE;
PCB Revision: 2060-701537-003 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 8C8/2248;
1 : 1 : 88C/2188;
ROM F/W version……………………. : 00050079;
Heads map…………………………. : 0,1;
Preamp vendor……………………. : 0x0000;
Preamp revision………………….. : 0x0005;

;

HDD with Serial Number: WCARW4830999;
Model: WD3200AVJS-63WDA0;
Date: 03 APR 2008;
DCM: EHRNHT2MHN;
Product of: Thailand;
PCB Sticker: 2061-701444-600 AF;
PCB Revision: 2060-701444-004 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : A40/2624;
1 : 1 : A02/2562;
2 : 2 : A32/2610;
3 : 3 : 9F8/2552;
ROM F/W version……………………. : 005800A9;
Heads map…………………………. : 0,1,2,3;
Preamp vendor……………………… : 0x0000;
Preamp revision……………………. : 0x0002;

;
