Category: HDD

HDD with Serial Number: WX81E73FKCX5;
Model: WD7500BPVX-75JC3T0;
Date: 14 NOV 2013;
DCM: SBKTJHN;
Product of: Malaysia;
PCB Sticker: 771960-100 AAD22;
PCB Revision: 2060-771960-000 REV A;
;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 00/0;
1   : 1   : 00/0;
2   : 2   : 00/0;
3   : 3   : 00/0;
ROM F/W version……………………. : 0016000T;
Heads map…………………………. : 0,1,2,3;
Preamp vendor……………………. : 0x0001;
Preamp revision………………….. : 0x0000;
;
;
;

;

HDD with Serial Number: WXN1E53WE719;
Model: WD7500BPVX-75JC3T0;
Date: 31 AUG 2013;
DCM: SBOTJHN;
Product of: Malaysia;
PCB Sticker: 771960-100 AAD22;
PCB Revision: 2060-771960-000 REV P2;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 00/0;
1 : 1 : 00/0;
2 : 3 : 00/0;
ROM F/W version……………………. : 0006000M;
Heads map…………………………. : 0,1,3;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0000;

;

HDD with Serial Number: WX31E73EUMT4;
Model: WD7500BPVX-75JC3T0;
Date: 20 NOV 2013;
DCM: SHOTJHN;
Product of: Malaysia;
PCB Sticker: 771960-100 ABD22;
PCB Revision: 2060-771960-000 REV A;
;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 00/0;
1   : 1   : 00/0;
2   : 2   : 00/0;
ROM F/W version……………………. : 00160014;
Heads map…………………………. : 0,1,2;
Preamp vendor……………………. : 0x0001;
Preamp revision………………….. : 0x0000;

;

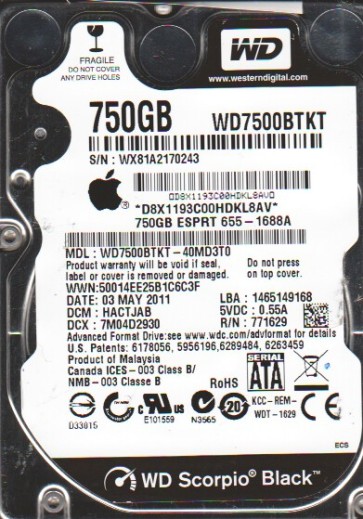

HDD #1 Specs:;
SN: WX81A2170243;
Model: WD7500BTKT-40MD3T0;
Date: 03 MAY 2011;
DCM: HACTJAB ;
Product of: Malaysia;
PCB Sticker: 771629-206 01PD9;
PCB Revision: 2060-771629-006 REV P1;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : AF4/2804;
1 : 1 : B3F/2879;
2 : 2 : B1A/2842;
3 : 3 : B51/2897;

ROM F/W version……………………. : 0003002E;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0003;

HDD #2 Specs:;

SN: WX81A2170317;
Model: WD7500BTKT-40MD3T0;
Date: 03 MAY 2011;
DCM: HACTJAB ;
Product of: Malaysia;
PCB Sticker: 771629-206 01PD12;
PCB Revision: 2060-771629-006 REV P1;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : A2D/2605;
1   : 1   : AE5/2789;
2   : 2   : A5F/2655;
3   : 3   : AC3/2755;

ROM F/W version……………………. : 0003002E;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0003;

;

HDD with  Serial Number: WXG0A79F6658;
Model: WD7500KEVT-00A28T0;
Date: 26 SEP 2009;
DCM: HBCVJHBB;
Product of: Thailand;
PCB Sticker: 2061-701672-A01 02P;
PCB Revision: 2060-701672-001 REV P1;

;

;

HDD #1 Specs:;
SN: WX60A7915542;
Model: WD7500KEVT-00A28T0;
Date: 19 AUG 2009;
DCM: HHCVJHBB ;
Product of: Thailand;
PCB Sticker: 2061-701672-A01 02P;
PCB Revision: 2060-701672-001 REVP1;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : BB0/2992;
1   : 1   : AB5/2741;
2   : 2   : C1B/3099;
3   : 3   : B3F/2879;
4   : 4   : C5D/3165;
5   : 5   : B3F/2879;

;

ROM F/W version……………………. : 0010002T;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0006;

;

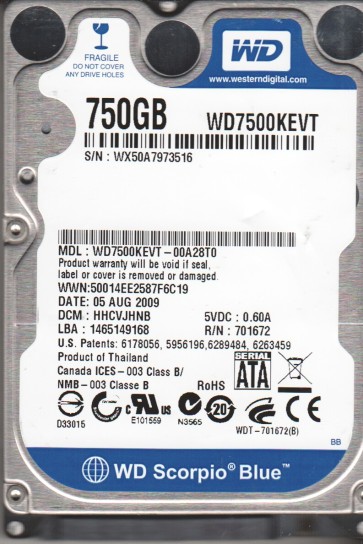

Specifications;
SN: WX50A7973516;
Model: WD7500KEVT-00A28T0;
Date: 05 AUG 2009;
DCM: HHCVJHNB ;
Product of: Thailand;
PCB Sticker: 2061-701672-A01 02P;
PCB Revision: 2060-701672-001 REV P1;

;

;

Specifications:;
SN WXE0C79H1695;
Model WD7500KMVV-11A27S0;
Date 20 SEP 2009;
DCM EBCVJBBB ;
Product of Thailand;
PCB Sticker: 2061-701675-201 03P;
PCB Revision: 2060-701675-001 REV P1;

;

;

HDD with Serial Number: WXE1A748E7TX;
Model: WD7500BPVX-22JC3T0;
Date: 05 SEP 2015;
DCM: HHKTJHN;
Product of: Malaysia;
PCB Sticker: 771960-100 AE;
PCB Revision: 2060-771960-000 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 00/0;
1 : 1 : 00/0;
2 : 2 : 00/0;
ROM F/W version……………………. : 0016001C;
Heads map…………………………. : 0,1,2;
Preamp vendor……………………. : 0x0001;
Preamp revision………………….. : 0x0000;

;

HDD with Serial Number: WX21EC3PA734;
Model: WD7500BPVX-60JC3T0;
Date: 11 MAR 2014;
DCM: EHOTJHK;
Product of: Malaysia;
PCB Sticker: 771960-100 AD;
PCB Revision: 2060-771960-000 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 00/0;
1 : 1 : 00/0;
2 : 2 : 00/0;
ROM F/W version……………………. : 0016001C;
Heads map…………………………. : 0,1,2;
Preamp vendor…………………… : 0x0001;
Preamp revision…………………. : 0x0000;

;
