Category: HDD

HDD with Serial Number: WXK1E63ZFZJ6;
Model: WD7500BPVX-22JC3T0;
Date: 20 SEP 2013;
DCM: EBOTJHN;
Product of: Malaysia;
PCB Sticker: 771960-100 AAD22;
PCB Revision: 2060-771960-000 REV A;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 00/0;
1   : 1   : 00/0;
2   : 2   : 00/0;
3   : 3   : 00/0;
;
ROM F/W version……………………. : 0006000M;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0000;

;

HDD with Serial Number: WXF1EC1ZXPK3;
Model: WD7500BPVT-80HXZT3;
Date: 23 JUN 2012;
DCM: SHOTJHN;
Product of: Malaysia;
PCB Sticker: 771820-900 AG;
PCB Revision: 2060-771820-000 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : B06/2822;
1 : 1 : B69/2921;
2 : 2 : B21/2849;
3 : 3 : B53/2899;
ROM F/W version……………………. : 0065000U;
Heads map…………………………. : 0,1,2,3;
Preamp vendor……………………. : 0x0001;
Preamp revision………………….. : 0x0003;

;

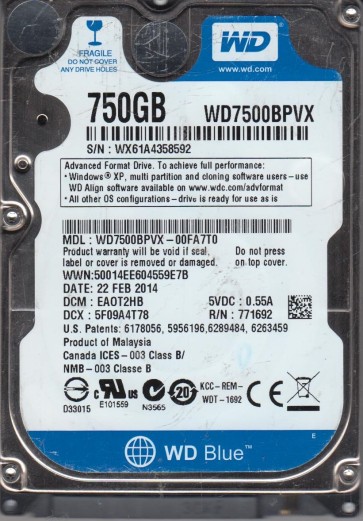

HDD with Serial Number: WX61A4358592;
Model: WD7500BPVX-00FA7T0;
Date: 22 FEB 2014;
DCM: EAOT2HB;
Product of: Malaysia;
PCB Sticker: 771820-B00 AH;
PCB Revision: 2060-771820-000 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : B5B/2907;
1 : 1 : B0B/2827;
2 : 2 : B62/2914;
3 : 3 : AF3/2803;
ROM F/W version……………………. : 00150008;
Heads map…………………………. : 0,1,2,3;
Preamp vendor……………………. : 0x0000;
Preamp revision………………….. : 0x0009;

;

HDD with Serial Number: WXJ1EA3FRUY1;
Model: WD7500BPVX-00FA7T0;
Date: 11 JUN 2014;
DCM: EHOT2HB;
Product of: Malaysia;
PCB Sticker: 771820-B00 AH;
PCB Revision: 2060-771820-000 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : B46/2886;
1 : 1 : AF1/2801;
2 : 2 : B16/2838;
3 : 3 : B01/2817;
ROM F/W version……………………. : 00150008;
Heads map…………………………. : 0,1,2,3;
Preamp vendor……………………. : 0x0000;
Preamp revision………………….. : 0x0009;

;

HDD with Serial Number: WXM1E661N8AN;
Model: WD7500BPVX-00JC3T0;
Date: 07 OCT 2019;
Product of: Malaysia;
PCB Sticker: 771960-300 AC;
PCB Revision: 2060-771960-000 REV A;
;

ROM F/W 00160094;
Heads map   1,2,3;
Preamp vendor:x0001;
preamp revision:x0000;
Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 1   : 00/0;
1   : 2   : 00/0;
2   : 3   : 00/0

;

HDD with Serial Number: WX61A95EFD0S;
Model: WD7500BPVX-00JC3T0;
Date: 27 AUG 2018;
DCM: EHKT2HK;
Product of: Malaysia;
PCB Sticker: 771960-300 AC;
PCB Revision: 2060-771960-000 REV A;
;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 1   : 00/0;
1   : 2   : 00/0;
2   : 3   : 00/0;
ROM F/W version……………………. : 00160094;
Heads map…………………………. : 1,2,3;
Preamp vendor……………………. : 0x0000;
Preamp revision………………….. : 0x0000;
;
;
;

;

HDD with Serial Number: WXR1E94ELV99;
Model: WD7500BPVX-00JC3T0;
Date: 22 MAR 2015;
DCM: EHKTJHK;
Product of: Malaysia;
PCB Sticker: 771960-100 AE;
PCB Revision: 2060-771960-000 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 00/0;
1 : 1 : 00/0;
2 : 2 : 00/0;
ROM F/W version……………………. : 00160056;
Heads map…………………………. : 0,1,2;
Preamp vendor……………………. : 0x0001;
Preamp revision………………….. : 0x0000;

;

HDD with Serial Number: WXS1A570916V;
Model: WD7500BPVX-00JC3T0;
Date: 30 MAY 2018;
DCM: HBNTJHN;
Product of: Thailand;
PCB Sticker: 771960-300 AC;
PCB Revision: 2060-771960-000 REV A;
;

;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 00/0;
1 : 1 : 00/0;
2 : 2 : 00/0;
3 : 3 : 00/0;

;

ROM F/W version: 00160094;
Heads map: 0,1,2,3;
Preamp vendor: 0x0001;
Preamp revision: 0x0000;

;

;

;

HDD with Serial Number: WXD1C1206828;
Model: WD7500BPVT-75A1YT0;
Date: 11 APR 2012;
DCM: HHCVJBN;
Product of: Malaysia;
PCB Sticker: 771823-300 AD;
PCB Revision: 2060-771823-000 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : F8D/3981;
1 : 1 : 1036/4150;
2 : 2 : EBD/3773;
3 : 3 : 101F/4127;

;

ROM F/W version: 00030038;
Preamp vendor:0x0001;
Preamp revision:0x0000;

;

HDD with Serial Number: WX11A7181428;
Model: WD7500BPVT-75HXZT3;
Date: 07 AUG 2011;
DCM: HHCTJHN;
Product of: Malaysia;
PCB Sticker: 771820-000 03P;
PCB Revision: 2060-771820-000 REV P1;
;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : B57/2903;
1   : 1   : A86/2694;
2   : 2   : B2B/2859;
3   : 3   : A90/2704

;
