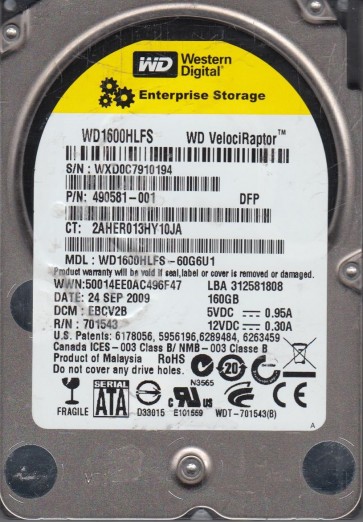

HDD with Serial Number: WXD0C7910194;
Model: WD1600HLFS-60G6U1;
Date: 24 SEP 2009;
DCM: EBCV2B;
Product of: Malaysia;
PCB Sticker: 2061-701543-500 AD;
PCB Revision: 2060-701543-003 REV B;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 858/2136;
1 : 2 : 88C/2188;
2 : 3 : 81C/2076;
ROM F/W version……………………. : 0001007G;
Heads map…………………………. : 0,2,3;
Preamp vendor……………………… : 0x0000;
Preamp revision……………………. : 0x0003;

;

HDD with Serial Number: WXLX08038720;
Model: WD1600HLFS-60G6U0;
Date: 07 JAN 2009;
DCM: EHCV2H;
Product of: Malaysia;
PCB Sticker: 2061-701543-500 AB;
PCB Revision: 2060-701543-003 REV B;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 8B8/2232;
1 : 2 : 838/2104;
2 : 3 : 938/2360;

;

ROM F/W: 00010051;
Heads map: 0,2,3;
Preamp vendor: 0x0000;
Preamp revision: 0x0003;

;

Specifications;

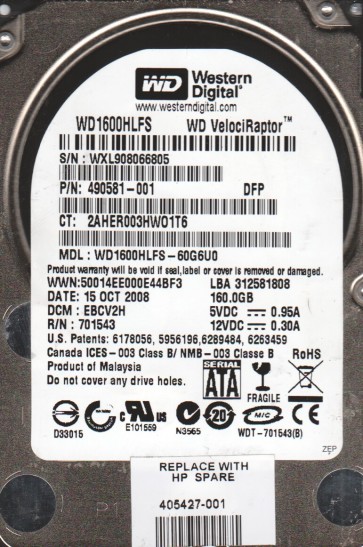

SN: WXL908066805;
Model: WD1600HLFS-60G6U0;
Date: 15 OCT 2008;
DCM: EBCV2H ;
Product of: Malaysia;
PCB Sticker: 2061-701543-500 AA;
PCB Revision: 2060-701543-003 REV B;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 8DC/2268;
1   : 2   : 8DC/2268;
2   : 3   : 848/2120;
;

;

ROM F/W version……………………. : 0001002T;
Preamp vendor……………………… : 0x0000;
Preamp revision……………………. : 0x0003;

;

HDD with Serial Number: WXL908055322;
Model: WD1600HLFS-60G6U0;
Date: 18 OCT 2008;
DCM: EBCV2B;
Product of: Malaysia;
PCB Sticker: 2061-701543-500 AA;
PCB Revision: 2060-701543-003 REV B;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 8D8/2264;
1 : 2 : 8C4/2244;
2 : 3 : 8E0/2272;

;

ROM F/W: 0001002T;
Heads map: 0,2,3;
Preamp vendor: 0x0000;
Preamp revision: 0x0003;

HDD with Serial Number: WXL708113310;
Model: WD1600HLFS-60G6U0;
Date: 21 SEP 2008;
DCM: EBCV2B;
Product of: Malaysia;
PCB Sticker: 2061-701543-500 AA;
PCB Revision: 2060-701543-003 REV B;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 1 : 880/2176;
1 : 2 : 8B8/2232;
2 : 3 : 880/2176;

;

ROM F/W: 0001002T;
Heads map: 1,2,3;
Preamp vendor: 0x0000;
Preamp revision: 0x0003;

;

HDD with Serial Number: WXN1E61VYTJ7;
Model: WD1600BVVT-63A26Y0;
Date: 22 APR 2013;
DCM: SHCTJHK;
Product of: Thailand;
PCB Sticker: 2061-771672-F04 ADD28;
PCB Revision: 2060-771672-004 REV A;

;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 1 : BAA/2986;

;

ROM F/W version……………………. : 00160029;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0000;

;

HDD with Serial Number: WXE1AC0D2474;
Model: WD1600BPVT-22ZEST0;
Date: 14 JAN 2011;
DCM: HHMTJANB;
Product of: Thailand;
PCB Sticker: 2061-771672-E04 04PD3;
PCB Revision: 2060-771672-004 REV A;
;

;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : ACF/2767;
1 : 1 : B6E/2926;

;

ROM F/W version: 0015002P;
Heads map: 0,1;
Preamp vendor: 0x0001;
Preamp revision: 0x0000;

;

HDD with Serial Number: WXG1E82FFA95;
Model: WD1600BPVT-22JJ5T0;
Date: 16 DEC 2012;
DCM: SHMTJHB;
Product of: Malaysia;
PCB Sticker: 771820-B00 AA;
PCB Revision: 2060-771820-000 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 1 : BB8/3000;

;

ROM F/W version:0065006P;
Preamp vendor:0x0001;
Preamp revision:0x0000;

;

HDD with Serial Number: WXQ1EB1JCWJA;
Model: WD1600BPVT-22JJ5T0;
Date: 12 APR 2012;
DCM: SHMTJGK;
Product of: Malaysia;
PCB Sticker: 771820-D00 01P;
PCB Revision: 2060-771820-000 REV A;
;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : B5F/2911;
ROM F/W version……………………. : 0065004V;
Heads map…………………………. : 0;
Preamp vendor……………………. : 0x0001;
Preamp revision………………….. : 0x0000;

;

HDD with Serial Number: WXU1CC1C3876;
Model: WD1600BPVT-22JJ5T0;
Date: 15 MAY 2012;
DCM: HHMTJAK;
Product of: Malaysia;
PCB Sticker: 771820-900 AF;
PCB Revision: 2060-771820-000 REV A;
;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : BA5/2981;
1   : 1   : B94/2964;
ROM F/W version……………………. : 0065006A;
Heads map…………………………. : 0,1;
Preamp vendor……………………. : 0x0001;
Preamp revision………………….. : 0x0000;

;

HDD with Serial Number: WX91EC1KSZH6;
Model: WD1600BPVT-11JJ5T0;
Date: 15 APR 2013;
DCM: SHMTJGB;
Product of: Malaysia;
PCB Sticker: 771820-800 AB;
PCB Revision: 2060-771820-000 REV A;

;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 1 : AA1/2721;

;

ROM F/W version……………………. : 0065006P;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0000;

;
