HDD #1 Specs:;
Serial Number: WX91A2022578;
Model: WD1600BEVT-60A23T0;
Date: 06 MAR 2010;
DCM: HHCTJABB;
Product of: Thailand;
PCB Sticker: 2061-771672-F04 03PD1;
PCB Revision: 2060-771672-004 REV A;
;
Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : ABA/2746;
1 : 1 : A76/2678;
;
ROM F/W version……………………. : 001400DD;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0000;
;

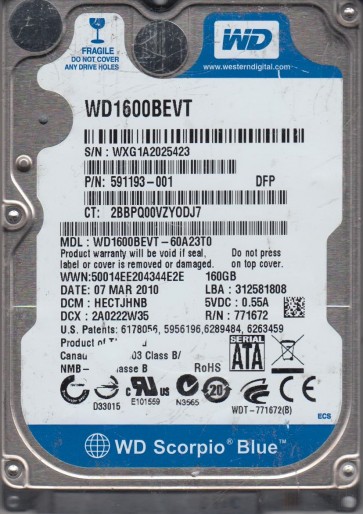

HDD with Serial Number: WXG1A2025423;
Model: WD1600BEVT-60A23T0;
Date: 07 MAR 2010;
DCM: HECTJHNB;
Product of: Thailand;
PCB Sticker: 2061-771672-F04 03PD1;
PCB Revision: 2060-771672-004 REV A;
;
Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : A2A/2602;
1 : 1 : A80/2688;
ROM F/W version……………………. : 0014001D;
Heads map…………………………. : 0,1;
Preamp vendor……………………. : 0x0001;
Preamp revision………………….. : 0x0000;
;
HDD with Serial Number: WX51A6014397;
Model: WD1600BEVT-60A23T0;
Date: 23 JUN 2010;
DCM: HECTJHB;
Product of: Malaysia;
PCB Sticker: 2061-771672-F04 AA;
PCB Revision: 2060-771672-004 REV A;
;
Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : A76/2678;
1 : 1 : B05/2821;
ROM F/W version……………………. : 00140036;
Heads map…………………………. : 0,1;
Preamp vendor……………………. : 0x0001;
Preamp revision………………….. : 0x0000;
;
HDD #1 Specs:;
Serial Number: WX41A5054592;
Model: WD1600BEVT-60A23T0;
Date: 24 MAR 2011 P;
DCM: HEBVJHN;
Product of: Thailand;
PCB Sticker: 2061-771672-F04 AA;
PCB Revision: 2060-771672-004 REV A;
;
Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 1 : BF8/3064;
;
ROM F/W version……………………. : 00140026;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0000;
;

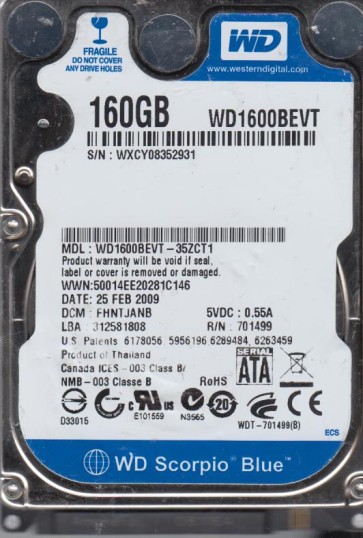

HDD with Serial Number: WXCY08352931;
Model: WD1600BEVT-35ZCT1;
Date: 25 FEB 2009;
DCM: FHNTJANB;
Product of: Thailand;
PCB Sticker: 2061-701499-500 AG;
PCB Revision: 2060-701499-000 REV A;
;
Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 97F/2431;
1 : 1 : 931/2353;
;
ROM F/W version: 0008001S;
Heads map: 0,1;
Preamp vendor: 0x0001;
Preamp revision: 0x0001;
;

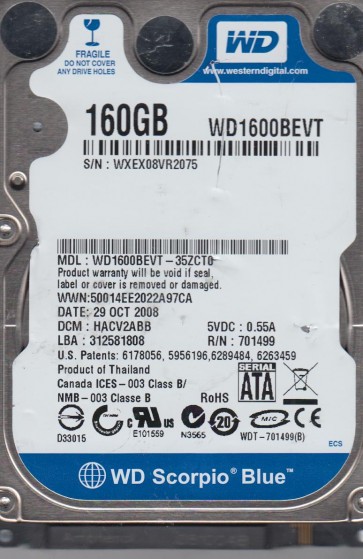

HDD with Serial Number: WXEX08VR2075;
Model: WD1600BEVT-35ZCT0;
Date: 29 OCT 2008;
DCM: HACV2ABB;
Product of: Thailand;
PCB Sticker: 2061-701499-500 AF;
PCB Revision: 2060-701499-000 REV A;
;
Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 85E/2142;
1 : 1 : 847/2119;
;
ROM F/W version……………………. : 0008000W;
Preamp vendor……………………… : 0x0002;
Preamp revision……………………. : 0x0001;
;

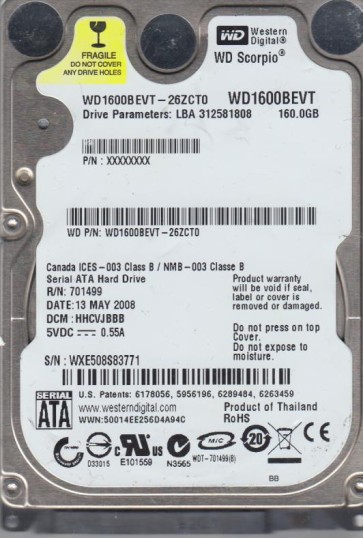

HDD with Serial Number: WXE508S83771;
Model: WD1600BEVT-26ZCT0;
Date: 13 MAY 2008;
DCM: HHCVJBBB;
Product of: Thailand;
PCB Sticker: 2061-701499-500 AB;
PCB Revision: 2060-701499-000 REV A;
;
Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 7D7/2007;
1 : 1 : 7DF/2015;
;
;
ROM F/W version: 0004002f;
Heads map: 0,1;
Preamp vendor: 0x0001;
Preamp revision: 0x0000;
;
;
HDD #1 Specs:;
Serial Number: WXK1A50N6004;
Model: WD1600BEVT-24A23T0;
Date: 06 JUN 2010;
DCM: HHMTJHNB;
Product of: Thailand;
PCB Sticker: 2061-771672-F04 AA;
PCB Revision: 2060-771672-004 REV A;
;
Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 9C5/2501;
1 : 1 : ADF/2783;
ROM F/W version……………………. : 00140036;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0000;
;
;
;
;
;
HDD with Serial Number: WXM1A6067019;
Model: WD1600BEVT-24A23T0;
Date: 12 JUL 2010;
DCM: HHMTJHN;
Product of: Malaysia;
PCB Sticker: 2061-771672-F04 AA;
PCB Revision: 2060-771672-004 REV A;
;
Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : A89/2697;
1 : 1 : AAE/2734;
ROM F/W version……………………. : 00140036;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0000;
;
;
;
;
;
HDD with Serial Number: WX81A6039312;
Model: WD1600BEVT-24A23T0;
Date: 22 JUN 2010;
DCM: HHMTJHB;
Product of: Malaysia;
PCB Sticker: 2061-771672-F04 AA;
PCB Revision: 2060-771672-004 REV A;
;
Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 9F4/2548;
1 : 1 : AE2/2786;
;
;
ROM F/W version: 00140036;
Heads map: 0,1;
Preamp vendor: 0x0001;
Preamp revision: 0x0000;
;
