HDD #1 Specs:;
Serial Number: WXE607D79976;
Model: WD1600BEVS-00RST0;
Date: 25 JUL 2007;
DCM: HAYTJANB;
Product of: Thailand;
PCB Sticker: 2061-701450-Z00 AF;
PCB Revision: 2060-701450-011 REV A;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 932/2354;
1   : 1   : 944/2372;
2   : 2   : 980/2432;
3   : 3   : 96E/2414;
;
;
;

;

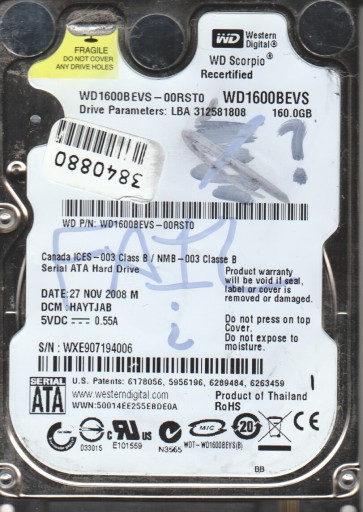

Specifications:;
SN WXE907194006;
Model WD1600BEVS-00RST0;
Date 27 NOV 2008 M;
DCM HAYTJAB ;
Product of Thailand;
PCB Sticker: 2061-701450-Z00 AF;
PCB Revision: 2060-701450-011 REV A;

;

;

HDD with Serial Number: WXE107E37576;
Model: WD1600BEVS-00RST0;
Date: 06 SEP 2007;
DCM: HACTJHB;
Product of: Thailand;
PCB Sticker: 2061-701450-Z00 AB;
PCB Revision: 2060-701450-011 REV A;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 90A/2314;
1   : 1   : 940/2368;
2   : 2   : 908/2312;
3   : 3   : 974/2420;
ROM F/W version……………………. : 000900A0;
Heads map…………………………. : 0,1,2,3;
Preamp vendor……………………. : 0x0004;
Preamp revision………………….. : 0x0001;

;

HDD with Serial Number: WXE407D17722;
Model: WD1600BEVS-00RST0;
Date: 28 MAY 2007;
DCM: HACTJABB;
Product of: Thailand;
PCB Sticker: 2061-701450-Z00 AE;
PCB Revision: 2060-701450-011 REV A;
;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 989/2441;
1   : 1   : 94A/2378;
2   : 2   : 9A1/2465;
3   : 3   : 8FE/2302;
ROM F/W version……………………. : 000900B2;
Heads map…………………………. : 0,1,2,3;
Preamp vendor……………………. : 0x0004;
Preamp revision………………….. : 0x0001;
;
;
;

;

HDD with Serial Number: WXCY07200840;
Model: WD1600BEVS-00RST0;
Date: 08 DEC 2007;
DCM: FAYTJANB;
Product of: Thailand;
PCB Sticker: 2061-701450-Z00 AG;
PCB Revision: 2060-701450-011 REV A;

;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 93E/2366;
1 : 1 : 972/2418;
2 : 2 : 92A/2346;
3 : 3 : 946/2374;

;

ROM F/W version: 000900BC;
Heads map: 0,1,2,3;
Preamp vendor: 0x0004;
Preamp revision: 0x0001;

;

HDD with Serial Number: WXE109TY5129;
Model: WD1600BEVE-00WZT0;
Date: 08 FEB 2009;
DCM: HBCTJABB;
Product of: Thailand;
PCB Sticker: 2061-701532-000 AJ;
PCB Revision: 2060-701532-000 REV A;
;

;

HDD with Serial Number: WXE908PAA634;
Model: WD1600BEVE-00WZT0;
Date: 26 SEP 2008;
DCM: HACT2BBB;
Product of: Thailand;
PCB Sticker: 2061-701532-000 AG;
PCB Revision: 2060-701532-000 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 1 : AE6/2790;
1 : 2 : B40/2880;
2 : 3 : B34/2868;
ROM F/W version……………………. : 0001000F;
Heads map…………………………. : 1,2,3;
Preamp vendor……………………. : 0x0002;
Preamp revision………………….. : 0x0001;

;

HDD #1 Specs:;
SN: WX30E9902337;
Model: WD1600BEVE-00WZT0;
Date: 01 NOV 2009;
DCM: FBNTJABB ;
Product of: Thailand;
PCB Sticker: 2061-701532-000 AJ;
PCB Revision: 2060-701532-000 REV A;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : B09/2825;
1   : 1   : B15/2837;
2   : 2   : B0B/2827;
;
;

;

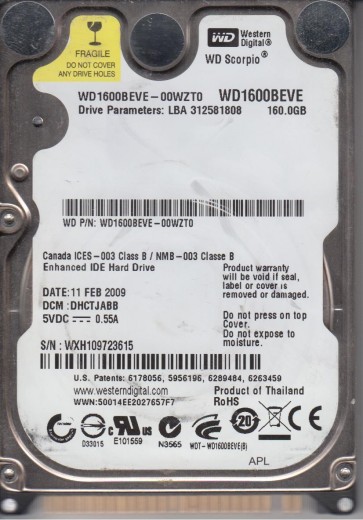

HDD #1 Specs:;
SN: WXH109723615;
Model: WD1600BEVE-00WZT0;
Date: 11 FEB 2009;
DCM: DHCTJABB ;
Product of: Thailand;
PCB Sticker: 2061-701532-000 AJ;
PCB Revision: 2060-701532-000 REV A;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : B52/2898;
1   : 1   : B54/2900;
2   : 3   : B42/2882;

;

ROM F/W version……………………. : 0001000F;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0001;

;

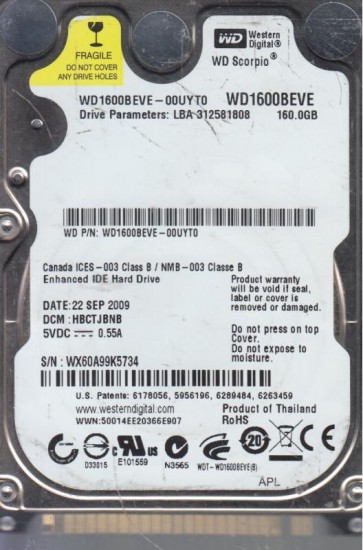

HDD with Serial Number: WX60A99K5734;
Model: WD1600BEVE-00UYT0;
Date: 22 SEP 2009;
DCM: HBCTJBNB;
Product of: Thailand;
PCB Sticker: 2061-701510-000 AG;
PCB Revision: 2060-701510-000 REV A;

;

ROM F/W: 0001008P;
Heads map:  0,1,2,3;
Preamp vendor: 0x0004;
Preamp revision: 0x0001;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 946/2374;
1   : 1   : 964/2404;
2   : 2   : 940/2368;
3   : 3   : 972/2418;
;
;

;
