HDD with Serial Number: WX51AC0T6810;
Model: WD1600BEKT-75PVMT0;
Date: 07 JAN 2011;
DCM: HECTJHB;
Product of: Malaysia;
PCB Sticker: 771692-105 AC;
PCB Revision: 2060-771692-005 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : B24/2852;
1 : 1 : B10/2832;

;

ROM F/W: 00030021;
Heads map: 0,1;
Preamp vendor: 0x0001;
Preamp revision: 0x0000;

HDD with Serial Number: WXF1AC041619;
Model: WD1600BEKT-75PVMT0;
Date: 09 JAN 2011;
DCM: HECTJHB;
Product of: Malaysia;
PCB Sticker: 771692-105 AC;
PCB Revision: 2060-771692-005 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : B2A/2858;
1 : 1 : A7E/2686;

;

ROM F/W: 00030027;
Heads map: 0,1;
Preamp vendor: 0x0001;
Preamp revision: 0x0000;

;

HDD with Serial Number: WX71A11D4588;
Model: WD1600BEKT-75PVMT0;
Date: 10 FEB 2011;
DCM: HECTJAB;
Product of: Malaysia;
PCB Sticker: 771692-105 AC;
PCB Revision: 2060-771692-005 REV A;
;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : AB2/2738;
1   : 1   : AEC/2796;
ROM F/W version……………………. : 00030027;
Heads map…………………………. : 0,1;
Preamp vendor……………………. : 0x0001;
Preamp revision………………….. : 0x0000;

;

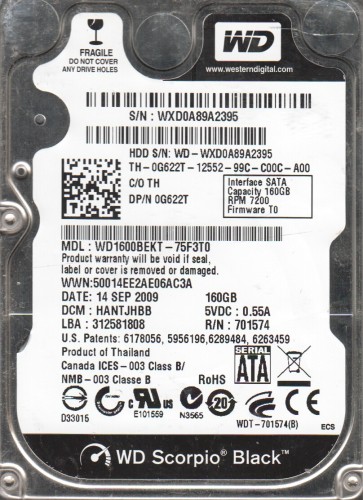

HDD #1 Specs:;
SN: WXD0A89A2395;
Model: WD1600BEKT-75F3T0;
Date: 14 SEP 2009;
DCM: HANTJHBB ;
Product of: Thailand;
PCB Sticker: 2061-701574-D00 AB;
PCB Revision: 2060-701574-001 REV A;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 94E/2382;
1   : 1   : 924/2340;
;

;

ROM F/W version……………………. : 0007003U;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0002;

;

HDD #1 Specs:;
Serial Number: WX11A30H8040;
Model: WD1600BEKT-75A25T0;
Date: 19 APR 2010;
DCM: HHCVJHBB;
Product of: Thailand;
PCB Sticker: 2061-771672-E04 03PD1;
PCB Revision: 2060-771672-004 REV A;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 951/2385;
1   : 1   : 8FC/2300;
ROM F/W version……………………. : 001400DB;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0000;
;
;
;
;

;

HDD with Serial Number: WXH1A4051685;
Model: WD1600BEKT-75A25T0;
Date: 13 MAY 2010;
DCM: HHCVJHBB;
Product of: Thailand;
PCB Sticker: 2061-771672-E04 03PD1;
PCB Revision: 2060-771672-004 REV A;

;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 9A2/2466;
1 : 1 : 90D/2317;

;

ROM F/W version: 01400DB;
Heads map: 0,1;
Preamp vendor: 0x0001;
Preamp revision: 0x0000;

;

HDD with Serial Number: WXC1AB0H9719;
Model: WD1600BEKT-75A25T0;
Date: 23 NOV 2010;
DCM: HHCTJHNB;
Product of: Thailand;
PCB Sticker: 2061-771672-E04 04PD3;
PCB Revision: 2060-771672-004 REV A;
;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : AB0/2736;
1   : 1   : 9E8/2536;
ROM F/W version……………………. : 00160001;
Heads map…………………………. : 0,1;
Preamp vendor……………………. : 0x0001;
Preamp revision………………….. : 0x0000;

;

HDD with Serial Number: WX21A5062370;
Model: WD1600BEKT-75A25T0;
Date: 15 MAY 2010;
DCM: HHCTJHBB;
Product of: Thailand;
PCB Sticker: 2060-771672-E04 03PD1;
PCB Revision: 2060-771672-004 REV A;

;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : A47/2631;
1 : 1 : AB6/2742;
ROM F/W version……………………. : 001400DB;
Heads map…………………………. : 0,1;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0000;

;

HDD with Serial Number: WXD1A50E7933;
Model: WD1600BEKT-75A25T0;
Date: 03 JUN 2010;
DCM: HHCTJHBB;
Product of: Thailand;
PCB Sticker: 2061-771672-E04 04PD1;
PCB Revision: 2060-771672-004 REV A;

;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : A34/2612;
1 : 1 : A9F/2719;
ROM F/W version……………………. : 001400DB;
Heads map…………………………. : 0,1;
Preamp vendor……………………. : 0x0001;
Preamp revision………………….. : 0x0000;

;

HDD with Serial Number: WX51AB0D8523;
Model: WD1600BEKT-75A25T0;
Date: 23 NOV 2010;
DCM: HHBTJHB;
Product of: Malaysia;
PCB Sticker: 2061-771672-E04 04PD1;
PCB Revision: 2060-771672-004 REV A;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : A98/2712;
1   : 1   : 9B3/2483;
;
ROM F/W version……………………. : 00160001;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0000;
;
;
;
;

;

HDD with Serial Number: WX21A80T2129;
Model: WD1600BEKT-75A25T0;
Date: 19 AUG 2010;
DCM: HECTJHNB;
Product of: Thailand;
PCB Sticker: 2061-771672-E04 04PD1;
PCB Revision: 2060-771672-004 REV A;
;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : B38/2872;
1   : 1   : AA2/2722;
ROM F/W version……………………. : 0014002D;
Heads map…………………………. : 0,1;
Preamp vendor……………………. : 0x0001;
Preamp revision………………….. : 0x0000;

;

HDD with Serial Number: WXL1A80N5472;
Model: WD1600BEKT-75A25T0;
Date: 21 SEP 2010;
DCM: HECTJHB;
Product of: Malaysia;
PCB Sticker: 2061-771672-E04 04PD1;
PCB Revision: 2060-771672-004 REV A;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : A6C/2668;
1   : 1   : A5C/2652;
;
ROM F/W version……………………. : 0014003N;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0000;

;

HDD with Serial Number: WXH1A80Y8864;
Model: WD1600BEKT-75A25T0;
Date: 20 SEP 2010;
DCM: HECTJHB;
Product of: Malaysia;
PCB Sticker: 2061-771672-E04 04PD1;
PCB Revision: 2060-771672-004 REV A;

;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 9E7/2535;
1 : 1 : ACF/2767;

;

ROM F/W version:0014003N;
Preamp vendor:0x0001;
Preamp revision:0x0000;

;

HDD with Serial Number: WX31A80W6337;
Model: WD1600BEKT-75A25T0;
Date: 19 SEP 2010;
DCM: HECTJHB;
Product of: Malaysia;
PCB Sticker: 2061-771672-E04 04PD1;
PCB Revision: 2060-771672-004 REV A;

;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : A9D/2717;
1 : 1 : B28/2856;

;

ROM F/W version: 014003N;
Heads map: 0,1;
Preamp vendor: 0x0001;
Preamp revision: 0x0000;

;

HDD with Serial Number: WXB1AB0R2650;
Model: WD1600BEKT-75A25T0;
Date: 21 NOV 2010;
DCM: HEBTJHBB;
Product of: Thailand;
PCB Sticker: 2061-771672-E04 04PD3;
PCB Revision: 2060-771672-004 REV A;
;

;
