WD1600BEKT-66F3T2, DCM HACTJBBB, Western Digital 160GB SATA 2.5 Hard Drive

HDD #1 Specs:;
Serial Number: WXB0A59N6650;
Model: WD1600BEKT-66F3T2;
Date: 05 JUN 2009;
DCM: HACTJBBB;
Product of: Thailand;
PCB Sticker: 2061-701574-D00 AB;
PCB Revision: 2060-701574-001 REV A;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 8EE/2286;
1   : 1   : 8E6/2278;
ROM F/W version……………………. : 000700FS;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0002;
;
;
;
;

;

WD1600BEKT-66A25T1, DCM HHCTJHBB, Western Digital 160GB SATA 2.5 Hard Drive

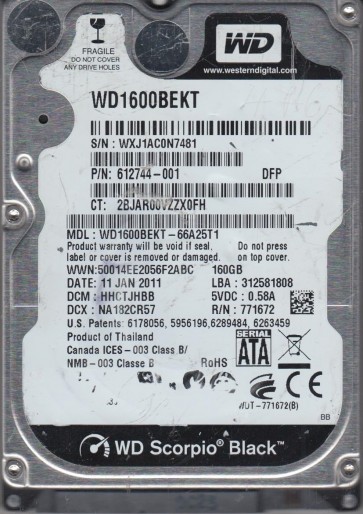

HDD with Serial Number: WXJ1AC0N7481;
Model: WD1600BEKT-66A25T1;
Date: 11 JAN 2011;
DCM: HHCTJHBB;
Product of: Thailand;
PCB Sticker: 2061-771672-E04 AC;
PCB Revision: 2060-771672-004 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 97F/2431;
1 : 1 : A6B/2667;
ROM F/W version……………………. : 00160001;
Heads map…………………………. : 0,1;
Preamp vendor…………………….. : 0x0001;
Preamp revision…………………… : 0x0000;

HDD with Serial Number: WX51AC0T9003;
Model: WD1600BEKT-66A25T1;
Date: 23 DEC 2010;
DCM: HHCTJHBB;
Product of: Thailand;
PCB Sticker: 2061-771672-E04 04PD3;
PCB Revision: 2060-771672-004 REV A;
;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : A74/2676;
1   : 1   : 950/2384;
ROM F/W version……………………. : 00160001;
Heads map…………………………. : 0,1;
Preamp vendor……………………. : 0x0001;
Preamp revision………………….. : 0x0000;

HDD with Serial Number: WXS1AB055160;
Model: WD1600BEKT-66A25T1;
Date: 23 DEC 2010;
DCM: HHCTJHBB;
Product of: Thailand;
PCB Sticker: 2061-771672-E04 04PD3;
PCB Revision: 2060-771672-004 REV A;
;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : A6F/2671;
1   : 1   : 8DA/2266;
ROM F/W version……………………. : 00160001;
Heads map…………………………. : 0,1;
Preamp vendor……………………. : 0x0001;
Preamp revision………………….. : 0x0000;

HDD with Serial Number: WX81AC0M6911;
Model: WD1600BEKT-66A25T1;
Date: 23 DEC 2010;
DCM: HHCTJHBB;
Product of: Thailand;
PCB Sticker: 2061-771672-E04 04PD1;
PCB Revision: 2060-771672-004 REV A;
;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : B0B/2827;
1   : 1   : A99/2713

;

WD1600BEKT-60V5T1, DCM HHNTJHNB, Western Digital 160GB SATA 2.5 Hard Drive

HDD with Serial Number: WXC1A70H2437;
Model: WD1600BEKT-60V5T1;
Date: 22 AUG 2010;
DCM: HHNTJHNB;
Product of: Thailand;
PCB Sticker: 2061-771574-D01 02P;
PCB Revision: 2060-771574-001 REV P1;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 984/2436;
1 : 1 : 978/2424;
ROM F/W version……………………. : 000800BH;
Heads map…………………………. : 0,1;
Preamp vendor……………………. : 0x0001;
Preamp revision………………….. : 0x0002;

HDD with Serial Number: WX41A2099289;
Model: WD1600BEKT-60V5T1;
Date: 03 MAR 2010;
DCM: HHNTJHNB;
Product of: Thailand;
PCB Sticker: 2061-771574-D01 02P;
PCB Revision: 2060-771574-001 REV P1;
;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 925/2341;
1   : 1   : 93E/2366;
ROM F/W version……………………. : 000800BH;
Heads map…………………………. : 0,1;
Preamp vendor……………………. : 0x0001;
Preamp revision………………….. : 0x0002;
;
;
;

;

WD1600BEKT-60V5T1, DCM HHNTJHB, Western Digital 160GB SATA 2.5 Hard Drive

HDD with Serial Number: WX10AA9X0089;
Model: WD1600BEKT-60V5T1;
Date: 10 MAY 2010;
DCM: HHNTJHB;
Product of: Thailand;
PCB Sticker: 2061-771574-D01 01P;
PCB Revision: 2060-771574-001 REV P1;

;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 958/2392;
1 : 1 : 91C/2332;

;

ROM F/W version……………………. : 0008000H;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0002;

;

WD1600BEKT-60V5T1, DCM HHCTJHBB, Western Digital 160GB SATA 2.5 Hard Drive

HDD with Serial Number: WXE0A99U6021;
Model: WD1600BEKT-60V5T1;
Date: 05 OCT 2009;
DCM: HHCTJHBB;
Product of: Thailand;
PCB Sticker: 2061-771574-D01 01P;
PCB Revision: 2060-771574-001 REV P1;
;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 8E2/2274;
1   : 1   : 90C/2316;
ROM F/W version……………………. : 0007003T;
Heads map…………………………. : 0,1;
Preamp vendor……………………. : 0x0001;
Preamp revision………………….. : 0x0002;

;

WD1600BEKT-60V5T1, DCM HBNTJBBB, Western Digital 160GB SATA 2.5 Hard Drive

HDD #1 Specs:;
SN: WX80AA9K7992;
Model: WD1600BEKT-60V5T1;
Date: 01 DEC 2009;
DCM: HBNTJBBB ;
Product of: Thailand;
PCB Sticker: 2061-771574-D01 01P;
PCB Revision: 2060-771574-001 REV P1;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 8FF/2303;
1   : 1   : 91A/2330;
;

;

ROM F/W version……………………. : 000700BT;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0002;

;

HDD #2 Specs:;

;

SN: WXE0AA9N6754;
Model: WD1600BEKT-60V5T1;
Date: 02 DEC 2009;
DCM: HBNTJBBB ;
Product of: Thailand;
PCB Sticker: 2061-771574-D01 01P;
PCB Revision: 2060-771574-001 REV P1;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 928/2344;
1   : 1   : 97A/2426;

;

ROM F/W version……………………. : 000700FT;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0002;

;

WD1600BEKT-60V5T1, DCM HANTJHNB, Western Digital 160GB SATA 2.5 Hard Drive

HDD #1 Specs:;
SN: WX91A20F4904;
Model: WD1600BEKT-60V5T1;
Date: 01 MAR 2010;
DCM: HANTJHNB ;
Product of: Thailand;
PCB Sticker: 2061-771574-D01 02P;
PCB Revision: 2060-771574-001 REV P1;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 8B8/2232;
1   : 1   : 8E9/2281;
;
;

;

WD1600BEKT-60V5T1, DCM HANTJHBB, Western Digital 160GB SATA 2.5 Hard Drive

HDD #1 Specs:;
SN: WXK0A9941626;
Model: WD1600BEKT-60V5T1;
Date: 14 OCT 2009;
DCM: HANTJHBB ;
Product of: Thailand;
PCB Sticker: 2061-771574-D01 01P;
PCB Revision: 2060-771574-001 REV P1;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 909/2313;
1   : 1   : 9AD/2477;

;

ROM F/W version……………………. : 000700FT;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0002;

;

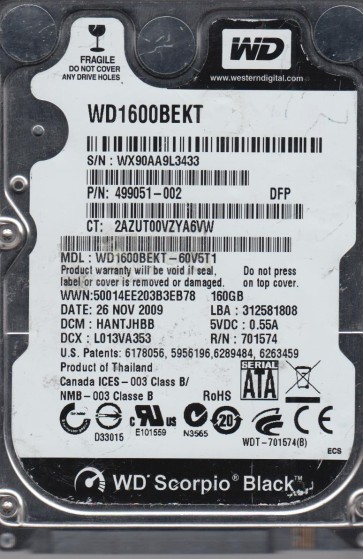

HDD with Serial Number: WX90AA9L3433;
;

;

Model: WD1600BEKT-60V5T1;
Date: 26 NOV 2009;
DCM: HANTJHBB;
Product of: Thailand;
PCB Sticker: 2061-771574-D01 01P;
PCB Revision: 2060-771574-001 REV P1;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 992/2450;
1   : 1   : 936/2358;

;

ROM F/W version……………………. : 000700FT;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0002;

;

WD1600BEKT-60V5T1, DCM HANTJAB, Western Digital 160GB SATA 2.5 Hard Drive

HDD #1 Specs:;
SN: WX90AA9L3037;
Model: WD1600BEKT-60V5T1;
Date: 04 NOV 2010;
DCM: HANTJAB ;
Product of: Thailand;
PCB Sticker: 2061-771574-D01 01P;
PCB Revision: 2060-771574-001 REV P1;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 8BD/2237;
1   : 1   : 91F/2335;

;

ROM F/W version……………………. : 0008000J;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0002;

;

WD1600BEKT-60PVMT0, DCM HHCTJHNB, Western Digital 160GB SATA 2.5 Hard Drive

HDD with Serial Number: WX71A31S5169;
Model: WD1600BEKT-60PVMT0;
Date: 11 APR 2011;
DCM: HHCTJHNB;
Product of: Thailand;
PCB Sticker: 771692-505 03P;
PCB Revision: 2060-771692-005 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : AEA/2794;
ROM F/W version……………………. : 00030027;
Heads map…………………………. : 0;
Preamp vendor……………………. : 0x0001;
Preamp revision………………….. : 0x0000;

HDD with Serial Number: WXB1A31V0403;
Model: WD1600BEKT-60PVMT0;
Date: 11 APR 2011;
DCM: HHCTJHNB;
Product of: Thailand;
PCB Sticker: 771692-505 03P;
PCB Revision: 2060-771692-005 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : AEA/2794;
ROM F/W version……………………. : 00030027;
Heads map…………………………. : 0;
Preamp vendor……………………. : 0x0001;
Preamp revision………………….. : 0x0000;

;
