WD1600BB-22RDA0, DCM HSCHCT2AA, Western Digital 160GB IDE 3.5 Hard Drive

HDD #1 Specs:;
SN: WMANM3369250;
Model: WD1600BB-22RDA0;
Date: 09 MAY 2006;
DCM: HSCHCT2AA ;
Product of: Malaysia;
PCB Sticker: 2061-701292-B00 AA;
PCB Revision: 2060-701292-001 REV A;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 428/1064;
1   : 1   : 40E/1038;
2   : 4   : 43A/1082;
3   : 5   : 444/1092;
ROM F/W version……………………. : 205UM;
Preamp vendor……………………… : 0x0000;
Preamp revision……………………. : 0x0004;
;
;
;
;

;

WD1600BB-22RDA0, DCM HBCHNTJAHN, Western Digital 160GB IDE 3.5 Hard Drive

HDD with Serial Number: WCANM7350510;
Model: WD1600BB-22RDA0;
Date: 18 OCT 2006;
DCM: HBCHNTJAHN;
Product of: Thailand;
PCB Sticker: 2061-701292-B00 AD;
PCB Revision: 2060-701292-002 REV A;

;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 494/1172;
1 : 1 : 464/1124;
2 : 4 : 494/1172;
3 : 5 : 44E/1102;

;

ROM F/W version……………………. : 2028M;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0004;

;

HDD with Serial Number: WCANM9472104;
Model: WD1600BB-22RDA0;
Date: 09 JAN 2007;
DCM: HBCHNTJAHN;
Product of: Thailand;
PCB Sticker: 2061-701292-B00 AD;
PCB Revision: 2060-701292-002 REV A;
Heads Map:0,1,4,5;
Preamp vendor: 0x0001;
Preamp revision: 0x0004;

;

WD1600BB-22RDA0, DCM DSCACT2AA, Western Digital 160GB IDE 3.5 Hard Drive

HDD #1 Specs:;
Serial Number: WMANL1403053;
Model: WD1600BB-22RDA0;
Date: 19 MAY 2006;
DCM: DSCACT2AA;
Product of: Malaysia;
PCB Sticker: 2061-701292-B00 AA;
PCB Revision: 2060-701292-001 REV A;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 458/1112;
1   : 1   : 4D2/1234;
2   : 3   : 4C6/1222;
3   : 4   : 476/1142;
ROM F/W version……………………. : 201UM;
Preamp vendor……………………… : 0x0000;
Preamp revision……………………. : 0x0004;
;
;
;
;

;

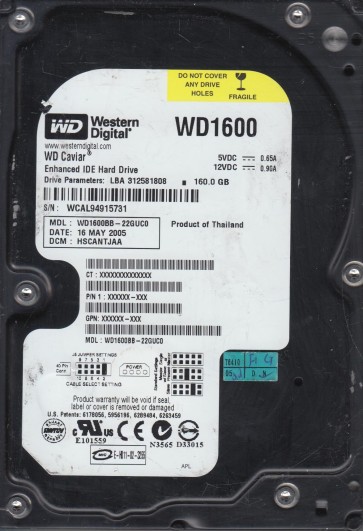

WD1600BB-22GUC0, DCM HSCANTJAA, Western Digital 160GB IDE 3.5 Hard Drive

HDD with Serial Number: WCAL94915731;
Model: WD1600BB-22GUC0;
Date: 16 MAY 2005;
DCM: HSCANTJAA;
Product of: Thailand;
PCB Sticker: 2061-701266-200 AG;
PCB Revision: 2060-701266-001 REV A;
ROM version……………………….. : 21.D8.;
Head map………………………….. : 0,1,4,5;

;

WD1600BB-22GUA0, DCM HSCACTJAA, Western Digital 160GB IDE 3.5 Hard Drive

HDD #1 Specs:;
Serial Number: WCAL91971784;
Model: WD1600BB-22GUA0;
Date: 06 NOV 2004;
DCM: HSCACTJAA;
Product of: Thailand;
PCB Sticker: 2061-001266-200 AD;
PCB Revision: 2060-001266-001 REV A;

;

ROM version……………………….. : 08.1T.;
Head map………………………….. : 0,1,4,5;

;

WD1600BB-22GUA0, DCM HSBACTJAH, Western Digital 160GB IDE 3.5 Hard Drive

HDD #2 Specs:;

;

Serial Number: WCAL91561092;
Model: WD1600BB-22GUA0;
Date: 05 OCT 2004;
DCM: HSBACTJAH;
Product of: Thailand;
PCB Sticker: 2061-001266-200 AC;
PCB Revision: 2060-001266-001 REV A;

;

ROM version……………………….. : 08.DT.;
Head map………………………….. : 0,1,4,5;

;

WD1600BB-22GUA0, DCM HSBACTJAA, Western Digital 160GB IDE 3.5 Hard Drive

HDD with Serial Number: WCAL93659856;
Model: WD1600BB-22GUA0;
Date: 05 MAR 2005;
DCM: HSBACTJAA;
Product of: Thailand;
PCB Sticker: 2061-001266-200 AG;
PCB Revision: 2060-001266-001 REV A;
;

ROM version……………………….. : 08.E4.;
Head map………………………….. : 0,1,4,5;

;
