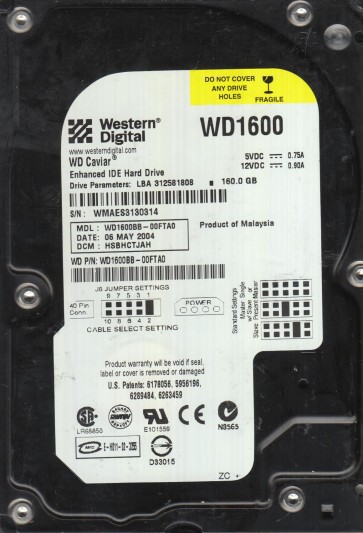

HDD #1 Specs:;
Serial Number: WMAES3130314;
Model: WD1600BB-00FTA0;
Date: 06 MAY 2004;
DCM: HSBHCTJAH;
Product of: Malaysia;
PCB Sticker: 2061-001173-000 DH;
PCB Revision: 2060-001173-004 REV A;

;

Heads configuration………………… : From map;
Heads number………………………. : 6;
The number of heads in use………….. : 4;
Head map………………………….. : 0,1,4,5;
ROM version……………………….. : 15.4A.;
;
;
;

;

HDD with Serial Number: WMAES2098552;
Model: WD1600BB-00FTA0;
Date: 16 FEB 2004;
DCM: HSBACTJAH;
Product of: Malaysia;
PCB Sticker: 2061-001173-000 DH;
PCB Revision: 2060-001173-004 REV A;
;

;

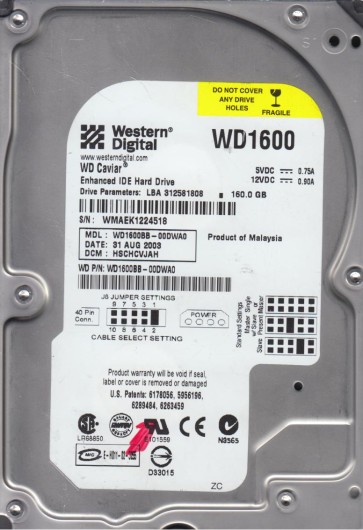

HDD with Serial Number: WMAEK1224518;
Model: WD1600BB-00DWA0;
Date: 31 AUG 2003;
DCM: HSCHCVJAH;
Product of: Malaysia;
PCB Sticker: 2061-001173-000 DA;
PCB Revision: 2060-001173-004 REV A;
;

;

HDD with Serial Number: WCAUZ2190659;
Model: WD1600AVVS-63L2B0;
Date: 01 SEP 2010;
DCM: HGRNHTJAHN;
Product of: Thailand;
PCB Sticker: 2061-701590-Q01 05P;
PCB Revision: 2060-701590-001 rev a;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : AA0/2720;
ROM F/W version……………………. : 000300E5;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0003;
;
;
;
;

;

Specifications;

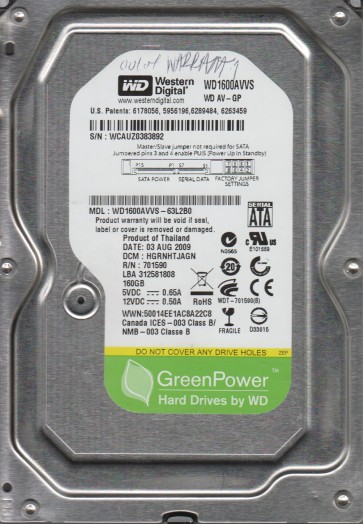

SN: WCAUZ0383892;
Model: WD1600AVVS-63L2B0;
Date: 03 AUG 2009;
DCM: HGRNHTJAGN ;
Product of: Thailand;
PCB Sticker: 2061-701590-Q00 AE;
PCB Revision: 2060-701590-000 REV A;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : A4A/2634;
ROM F/W version……………………. : 000300E6;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0003;
;
;
;
;
;
;

;

HDD with Serial Number: WCAUZ0376073;
Model: WD1600AVVS-63L2B0;
Date: 02 AUG 2009;
DCM: HARNHTJAGN;
Product of: Thailand;
PCB Sticker: 2061-701590-Q00 AE;
PCB Revision: 2060-701590-000 REV A;

;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : A64/2660;

;

ROM F/W version……………………. : 000300E6;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0003;

;

HDD with Serial Number: WCAUZ0957743;
Model: WD1600AVVS-63L2B0;
Date: 11 DEC 2009;
DCM: DGNNHTJAEN;
Product of: Thailand;
PCB Sticker: 2061-701590-Q01 01P;
PCB Revision: 2060-701590-001 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : AA2/2722;

;

;
ROM F/W version: 000300E5;
Heads map: 0;
Preamp vendor: 0x0001;
Preamp revision: 0x0003;

;

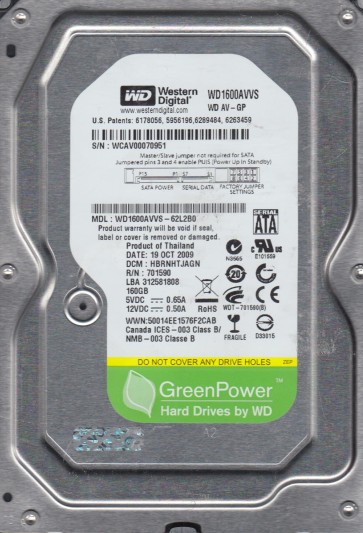

HDD with Serial Number: WCAV00070951;
Model: WD1600AVVS-62L2B0;
Date: 19 OCT 2009;
DCM: HBRNHTJAGN;
Product of: Thailand;
PCB Sticker: 2061-701590-Q01 01P;
PCB Revision: 2060-701590-001 REV A;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 1   : 9AA/2474;
ROM F/W version……………………. : 000300E5;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0003;
;
;
;
;

;

HDD with Serial Number: WCAS28413161;
Model: WD1600AVJS-63WNA0;
Date: 20 SEP 2008;
DCM: HHRNNT2AHN;
Product of: Thailand;
PCB Sticker: 2061-701552-G00 11P;
PCB Revision: 2060-701552-003 REV A;
;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : AB6/2742;
1   : 1   : A06/2566;
ROM F/W version……………………. : 005800AD;
Heads map…………………………. : 0,1;
Preamp vendor……………………… : 0x0000;
Preamp revision……………………. : 0x0005;
;
;
;
;

;

HDD with Serial Number: WCAS2E879059;
Model: WD1600AVJS-63WNA0;
Date: 26 MAY 2009;
DCM: EHRCNTJAAN;
Product of: Thailand;
PCB Sticker: 2061-701552-G00 14P;
PCB Revision: 2060-701552-003 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 994/2452;
1 : 1 : 986/2438;
ROM F/W version……………………. : 005800AF;
Heads map…………………………. : 0,1;
Preamp vendor…………………… : 0x0001;
Preamp revision…………………. : 0x0003;

;
