HDD with Serial Number: WCAS23222323;
Model: WD1600AAJS-75WAA0;
Date: 23 MAY 2008;
DCM: HHNNHTJEHN;
Product of: Thailand;
PCB Sticker: 2061-701552-G00 10P;
PCB Revision: 2060-701552-003 REV A;
;

ROM F/W version 005800A8;
Heads map:  0,1;
Preamp vendor: 0x0001;
Preamp revision: 0x0003;
;
Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : A1C/2588;
1   : 1   : A72/2674

;

HDD with Serial Number: WCAS23988187;
Model: WD1600AAJS-75WAA0;
Date: 07 JUN 2008;
DCM: HGRNHTJEAN;
Product of: Thailand;
PCB Sticker: 2061-701552-G00 10P;
PCB Revision: 2060-701552-003 REV A;
;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : A50/2640;
1   : 1   : A06/2566;
ROM F/W version……………………. : 005800A8;
Heads map…………………………. : 0,1;
Preamp vendor……………………. : 0x0001;
Preamp revision………………….. : 0x0003;

;

HDD with Serial Number: WCAS22148117;
Model: WD1600AAJS-75WAA0;
Date: 22 APR 2008;
DCM: HGNNHT2EAN;
Product of: Thailand;
PCB Sticker: 2061-701552-G00 08P;
PCB Revision: 2060-701552-003 REV A;

;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : A26/2598;
1 : 1 : 9FE/2558;

;

ROM F/W version……………………. : 005800A8;
Preamp vendor……………………… : 0x0000;
Preamp revision……………………. : 0x0005;

;

HDD with Serial Number: WCAS23110070;
Model: WD1600AAJS-75WAA0;
Date: 15 MAY 2008;
DCM: HBRNHT2EHN;
Product of: Thailand;
PCB Sticker: 2061-701552-G00 10P;
PCB Revision: 2060-701552-003 REV A;
;

;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : A6E/2670;
1 : 1 : AB4/2740;

;

ROM F/W version……………………. : 005800A8;
Preamp vendor……………………… : 0x0000;
Preamp revision……………………. : 0x0005;

;

Specifications;

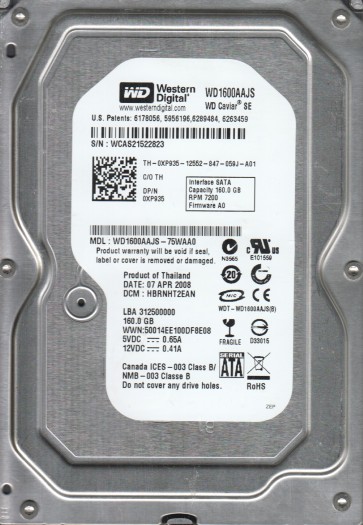

SN: WCAS21522823;
Model: WD1600AAJS-75WAA0;
Date: 07 APR 2008;
DCM: HBRNHT2EAN ;
Product of: Thailand;
PCB Sticker: 2061-701552-G00 05P;
PCB Revision: 2060-701552-003 REV A;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : A5A/2650;
1   : 1   : 9E8/2536;
ROM F/W version……………………. : 005800A8;
Preamp vendor……………………… : 0x0000;
Preamp revision……………………. : 0x0005;
;
;
;
;
;
;

;

HDD with Serial Number: WCAS22274755;
Model: WD1600AAJS-75WAA0;
Date: 18 APR 2008;
DCM: HARNHT2EAN;
Product of: Thailand;
PCB Sticker: 2061-701552-G00 08P;
PCB Revision: 2060-701552-003 REV A;

;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : A44/2628;
1 : 1 : A44/2628;

;

ROM F/W version……………………. : 005800A8;
Preamp vendor……………………… : 0x0000;
Preamp revision……………………. : 0x0005;

;

HDD with Serial Number: WMAP97479564;
Model: WD1600AAJS-75PSA0;
Date: 17 SEP 2007;
DCM: HGRNHTJEG;
Product of: Malaysia;
PCB Sticker: 2061-701444-000 AF;
PCB Revision: 2060-701444-003 REV A;
;

;

HDD #1 Specs:;
SN: WMAP97610057;
Model: WD1600AAJS-75PSA0;
Date: 19 SEP 2007;
DCM: HGNNNT2CB ;
Product of: Malaysia;
PCB Sticker: 2061-701444-600 AC;
PCB Revision: 2060-701444-004 REV A;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 6DC/1756;
1   : 1   : 698/1688;
ROM F/W version……………………. : 0021007J;
Preamp vendor……………………… : 0x0000;
Preamp revision……………………. : 0x0004;
;
;
;
;
;
;

;

Specifications;

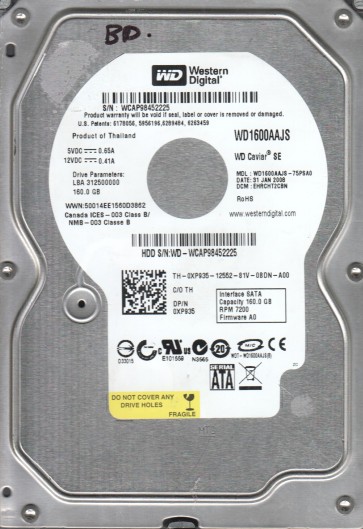

SN: WCAP98452225;
Model: WD1600AAJS-75PSA0;
Date: 31 JAN 2008;
DCM: EHRCHT2CBN ;
Product of: Thailand;
PCB Sticker: 2061-701444-600 AD;
PCB Revision: 2060-701444-004 REV A;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 6A2/1698;
1   : 1   : 686/1670;
ROM F/W version……………………. : 0021008B;
Preamp vendor……………………… : 0x0000;
Preamp revision……………………. : 0x0004;
;
;
;
;
;
;

;

HDD with Serial Number: WMAP93242788;
Model: WD1600AAJS-75PSA0;
Date: 02 JUN 2007;
DCM: EARCHTJAA;
Product of: Malaysia;
PCB Sticker: 2061-701444-000 AE;
PCB Revision: 2060-701444-003 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 718/1816;
1 : 1 : 722/1826;

;

ROM F/W version: 00210038;
Preamp vendor: 0x0001;
Preamp revision: 0x0003;

;
